Vacuum hose protection

Engine troubles? Try here.
Post Reply
ChickenPinz
United States of America
Posts: 67
Joined: Tue Feb 11, 2020 7:16 pm

Vacuum hose protection

Post by ChickenPinz » Thu Mar 26, 2020 8:29 pm

Noticed a rub spot on the vacuum line that powers the brake booster. The hose rubs on the rubber gasket just below the fan shroud. You'll see a carefully-placed hose clamp added in the photo for protection.

A leak here would be bad for your engine.
IMG_20200326_172714 (Large).jpg
IMG_20200326_172714 (Large).jpg (292.66 KiB) Viewed 1015 times
710K

User avatar
rmel
United States of America
Posts: 1103
Joined: Sun Sep 25, 2011 12:19 pm
Location: Woodside, CA
Contact:

Re: Vacuum hose protection

Post by rmel » Fri Mar 27, 2020 10:03 am

Rest easy, that hose is one tough hombre -- under that fabric weave is woven steel.
Unless it's been replaced with a poor substitute.
Puller: 71' 710K 2.7L EFI aka Mozo
Follower: Sankey MK 3, 3/4 Tonne
Rescue Pinz: 73' 712M

Driver: Ron // KO0Q

ChickenPinz
United States of America
Posts: 67
Joined: Tue Feb 11, 2020 7:16 pm

Re: Vacuum hose protection

Post by ChickenPinz » Fri Mar 27, 2020 2:38 pm

I do rest easy now that it has protection. :)

Yes, it's a tough hose, but the wear is non-trivial and my bar is the airplane mechanic one -- head off all potential problems long before they could ever become issues. Best to address any disabling wear spots early.

This same hose passes through the underside of the pan, and in my case the grommet (a good thing) has deteriorated back to dinosaur cells, so that spot also got more protection until I get a replacement grommet:
IMG_20200322_154652 (Small).jpg
IMG_20200322_154652 (Small).jpg (101.17 KiB) Viewed 978 times
710K

User avatar
pcolette
United States of America
Posts: 1476
Joined: Sun Dec 10, 2006 7:38 pm
Location: Southwest Wisconsin

Re: Vacuum hose protection

Post by pcolette » Fri Mar 27, 2020 5:10 pm

You may want to check the position of the clamps that secure that vacuum hose in place. It's possible that over time they have rotated around their securing bolts and allowed the hose to come to close to the fan shroud.
Paul C.
_________
'73 Swiss 710M
'89 Puch 230GE
2002 MB G500 (For Sale)

ChickenPinz
United States of America
Posts: 67
Joined: Tue Feb 11, 2020 7:16 pm

Re: Vacuum hose protection

Post by ChickenPinz » Fri Mar 27, 2020 8:57 pm

Excellent advice!

Upon inspection, that is the root issue -- the hose was biased too far forward, not giving the right service loop near the engine.

PS: I like that fancy orange striping for your airbox strap -- is that Chevrolet orange?
710K

User avatar
pcolette
United States of America
Posts: 1476
Joined: Sun Dec 10, 2006 7:38 pm
Location: Southwest Wisconsin

Re: Vacuum hose protection

Post by pcolette » Fri Mar 27, 2020 11:02 pm

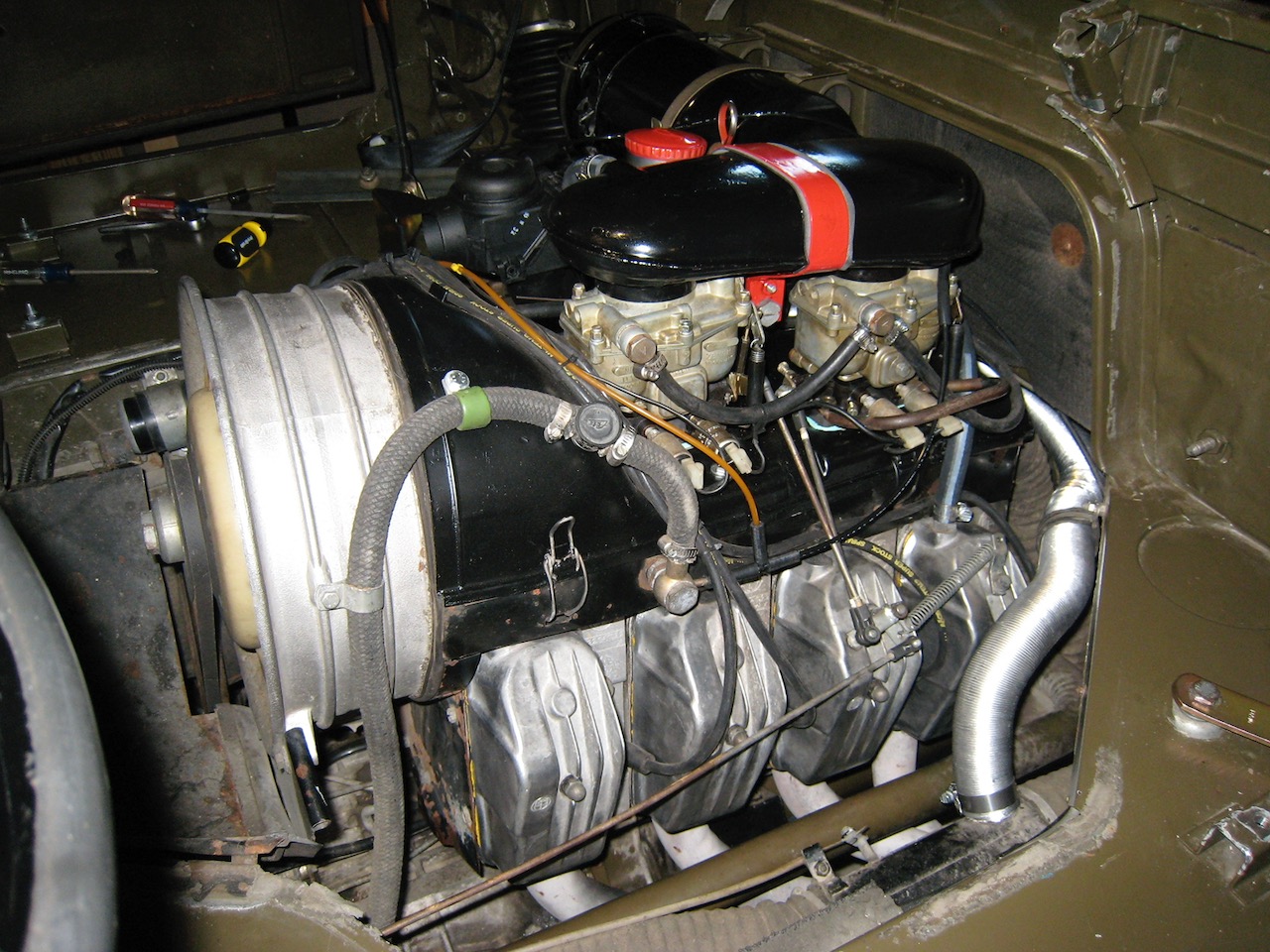

I don't recall the paint color. That photo is from 8-10 years ago and a different Pinz than my current one. Knowing me, it was probably just some paint I had around in the shop.
Paul C.
_________
'73 Swiss 710M
'89 Puch 230GE
2002 MB G500 (For Sale)
