Shift Assembly Replacement

Diffs, axles, lockers, transmissions, portals, that kind of thing.
Post Reply
User avatar
United States of America
Posts: 38
Joined: Mon Jan 05, 2015 9:02 pm
Location: Mesa, Az

Shift Assembly Replacement

Post by DeStoriesair » Thu Jul 12, 2018 12:18 pm

I have a new shift assembly that I am installing in the 710 and I am having trouble removing the large pin that mates the shift assembly to the tube that goes aft. I have removed the roll pin so I think right now that it is just a tight fit but wanted to get other advice. I have used a long rod to reach the pin and smacked it a couple times with the sledge and have not gotten any movement. Also added some heat and that has not helped. Any advice?
Southwest Pinzgauer Association Member
Pinzgauer 710M
Facebook: Southwest Pinzgauer

User avatar
Great Britain
Posts: 26
Joined: Wed Jan 17, 2018 8:13 pm
Location: New Jersey

Re: Shift Assembly Replacement

Post by Lewis » Fri Jul 13, 2018 11:44 pm

i'd be nervous hitting it with a sledge, could you make/modify or buy some kind of bearing puller combined with a little heat and some luck it could work
1982 710K ex-Bosnian Radio car

User avatar
United States of America
Posts: 1192
Joined: Sun Sep 25, 2011 12:19 pm
Location: Woodside, CA

Re: Shift Assembly Replacement

Post by rmel » Sat Jul 14, 2018 9:19 am

I've never had to take the shift assembly apart myself (yet) to confirm this,

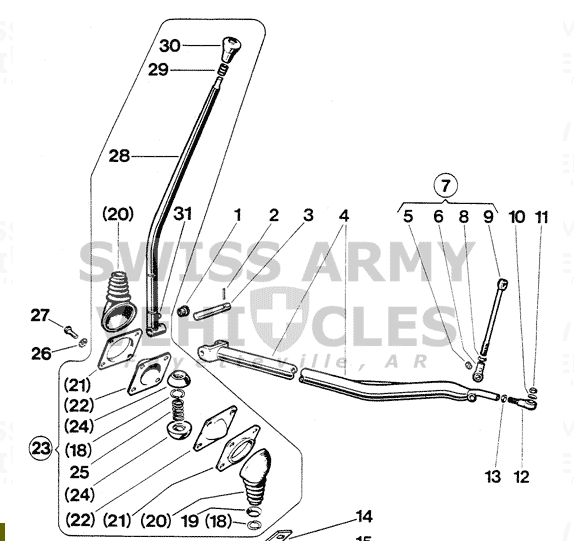

but the assembly diagram section "7-14", shows a retention pin #2, holding
the shift pin #3. If that is not removed that would certainly stymie the

If removed and the shift pin is still stuck, perhaps disassembly at the
floor board inside the cab might allow you to drop that joint down lower
under the truck for better access with a puller as Lewis suggested.
