Got the Ham and CB radios mounted, DC outlet for GPS next

Post by bbolander » Wed Nov 23, 2016 7:47 pm

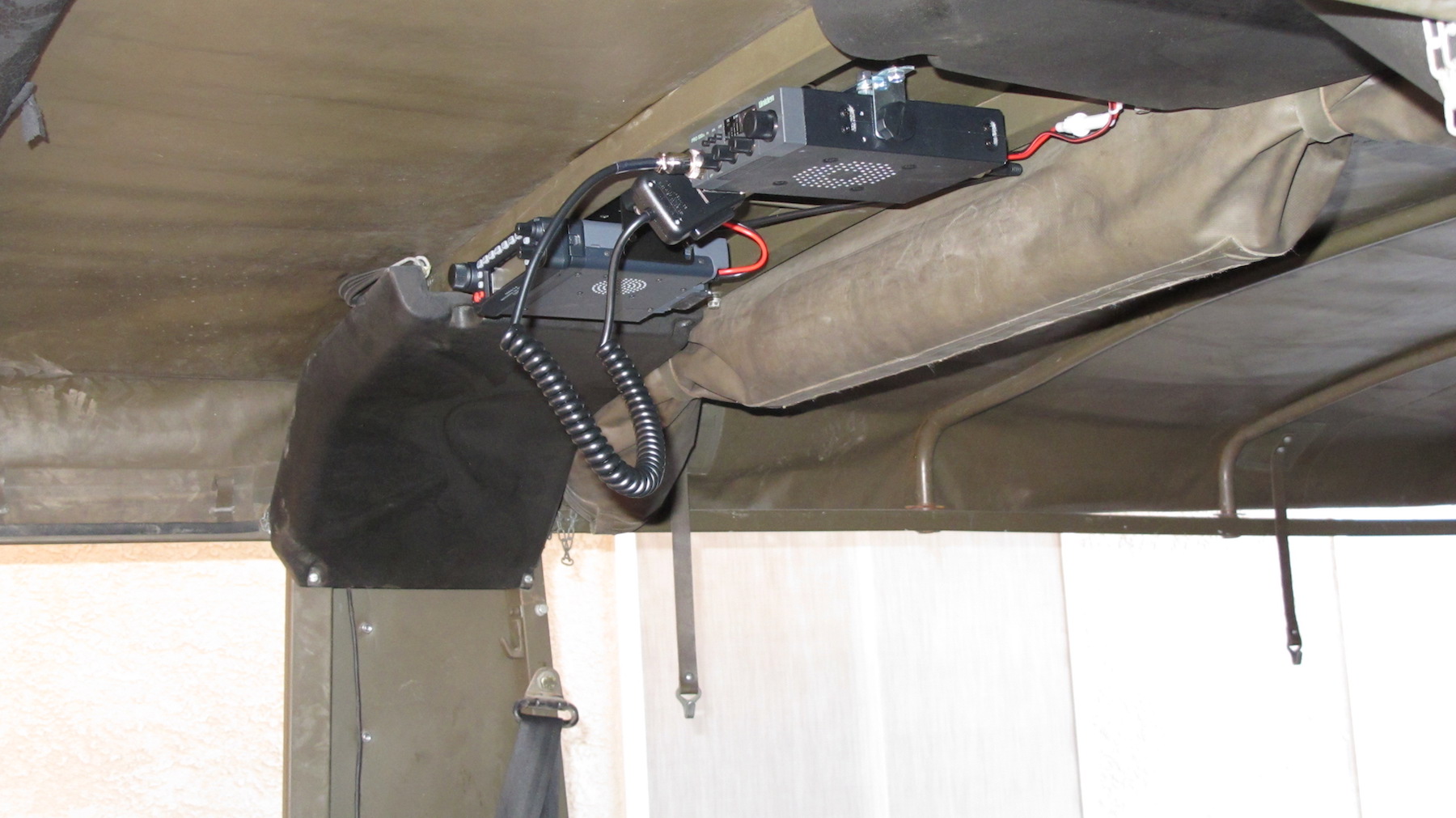

Got the Ham and CB radios mounted today. Used longer canvas top strip bolts. Felt a little wobbly at first but then put a large fender washer on the underside before the nut and they're rock solid. Used extra nuts for spacers. Ham is upside down so the speaker is down, the remote head will be taken off and mounted in front in the cab. CB will be lowered a bit so the overhead light doesn't interfere with hanging the mic. Will be getting 90 degree ells for the cable connections so the cables don't have to bend in a tight space. Extra cable stuffs nicely above the passenger head guard, and the wiring will come down over the drivers head guard. I'll be mounting the DC outlet next, then it's on to wiring everything up.
IMG_1217 copy.jpg
IMG_1217 copy.jpg (409.67 KiB) Viewed 2269 times
IMG_1221 copy.jpg
IMG_1221 copy.jpg (356.59 KiB) Viewed 2269 times
1971 Pinzgauer 710M, all stock including 245-16 Maloya tires, taken off and stored for show
BFG MT KM2 265/75R16's on Black SAV replacement rims on now

User avatar
TechMOGogy
Canada
Posts: 2789
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by TechMOGogy » Wed Nov 23, 2016 9:10 pm

Looks great
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

User avatar
bbolander
United States of America
Posts: 246
Joined: Sun Oct 23, 2016 11:02 am
Location: Mesquite, NV

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by bbolander » Thu Nov 24, 2016 4:35 pm

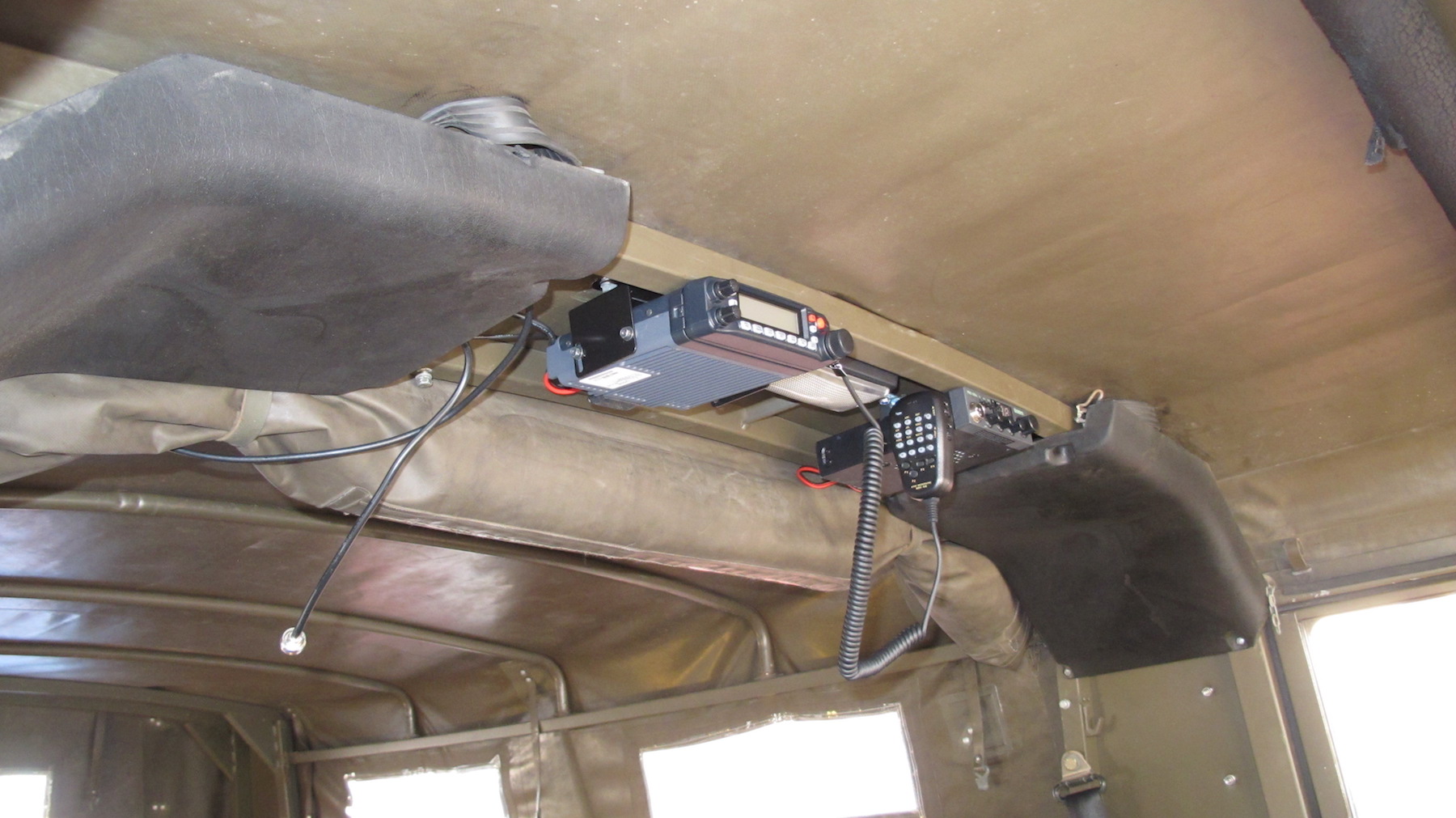

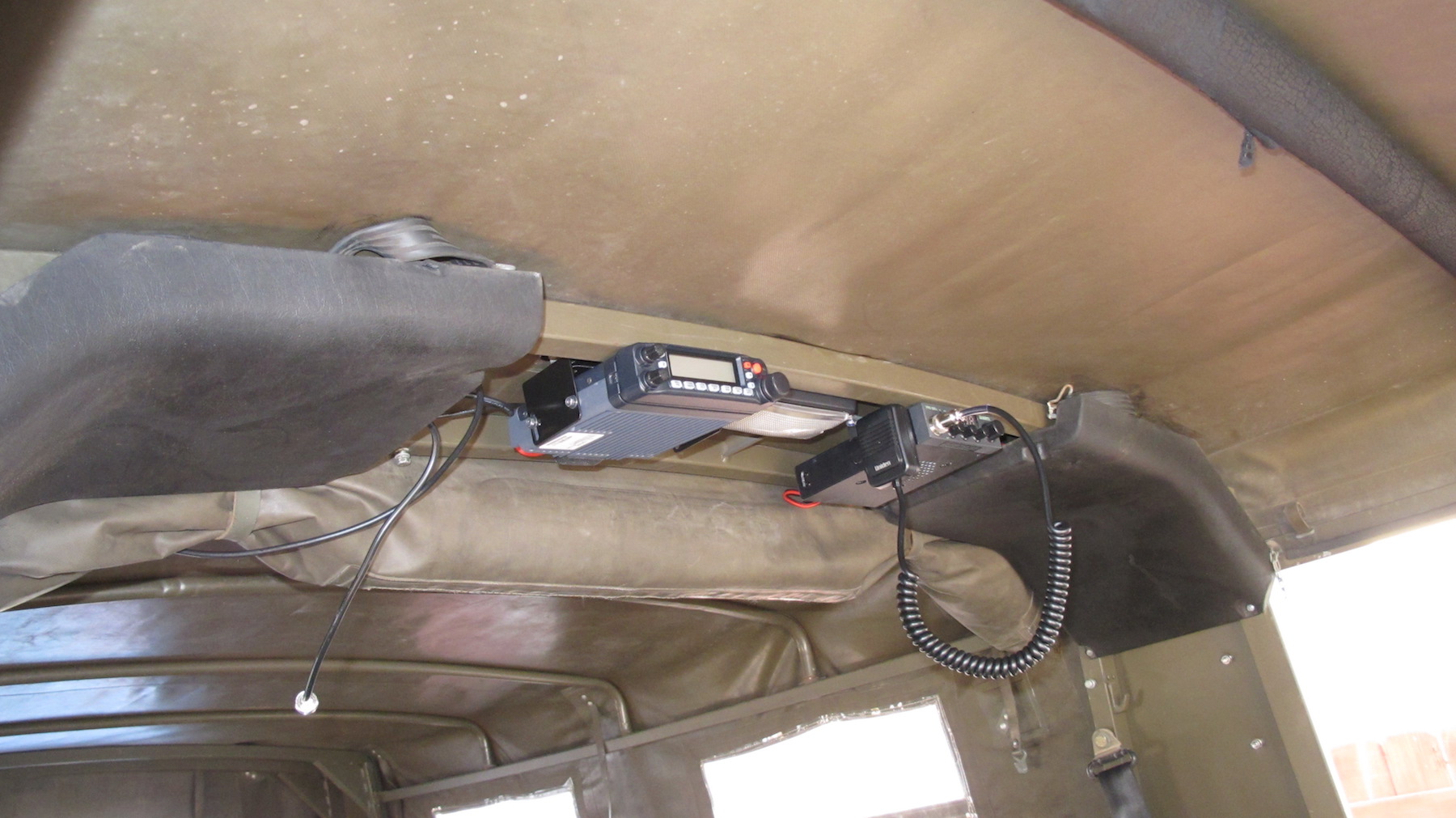

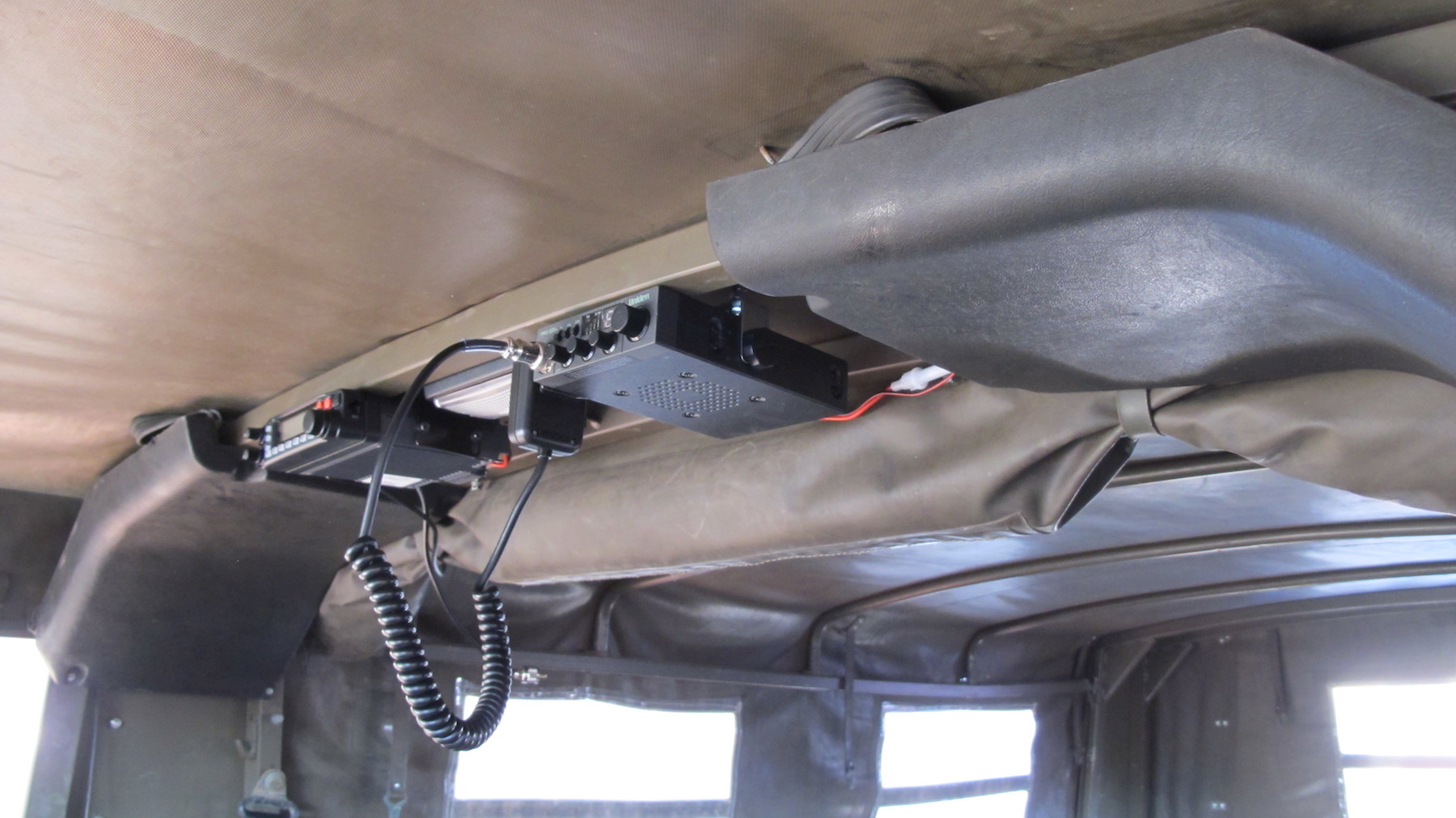

Did a little tweaking. Put the ham right side up since I only need to use the remote head when programming at home. Reversed the CB mount for the mic to clear the light. Keeping it simple, no interference with headroom at all. Using the CB mic mount for both the CB and Ham mics. Got the DC outlet in also.
IMG_1222 copy.jpg
IMG_1222 copy.jpg (381.4 KiB) Viewed 2224 times
IMG_1224 copy.jpg
IMG_1224 copy.jpg (376.21 KiB) Viewed 2224 times
IMG_1226 copy.jpg
IMG_1226 copy.jpg (393.58 KiB) Viewed 2224 times
IMG_1228 copy.jpg
IMG_1228 copy.jpg (392.79 KiB) Viewed 2224 times
IMG_1230 copy.jpg
IMG_1230 copy.jpg (356.06 KiB) Viewed 2224 times
1971 Pinzgauer 710M, all stock including 245-16 Maloya tires, taken off and stored for show
BFG MT KM2 265/75R16's on Black SAV replacement rims on now

User avatar
TechMOGogy
Canada
Posts: 2789
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by TechMOGogy » Thu Nov 24, 2016 5:08 pm

Did you remove the wire divider between the driver and rear passenger compartment?
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

User avatar
bbolander
United States of America
Posts: 246
Joined: Sun Oct 23, 2016 11:02 am
Location: Mesquite, NV

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by bbolander » Thu Nov 24, 2016 8:50 pm

TechMOGogy wrote:Did you remove the wire divider between the driver and rear passenger compartment?
I just took them all out to make it easier to work. They'll go back in when I'm done. Saw posts about hanging a fire extinguisher from them, might do that too.
1971 Pinzgauer 710M, all stock including 245-16 Maloya tires, taken off and stored for show
BFG MT KM2 265/75R16's on Black SAV replacement rims on now

User avatar
bbolander
United States of America
Posts: 246
Joined: Sun Oct 23, 2016 11:02 am
Location: Mesquite, NV

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by bbolander » Sun Nov 27, 2016 2:20 pm

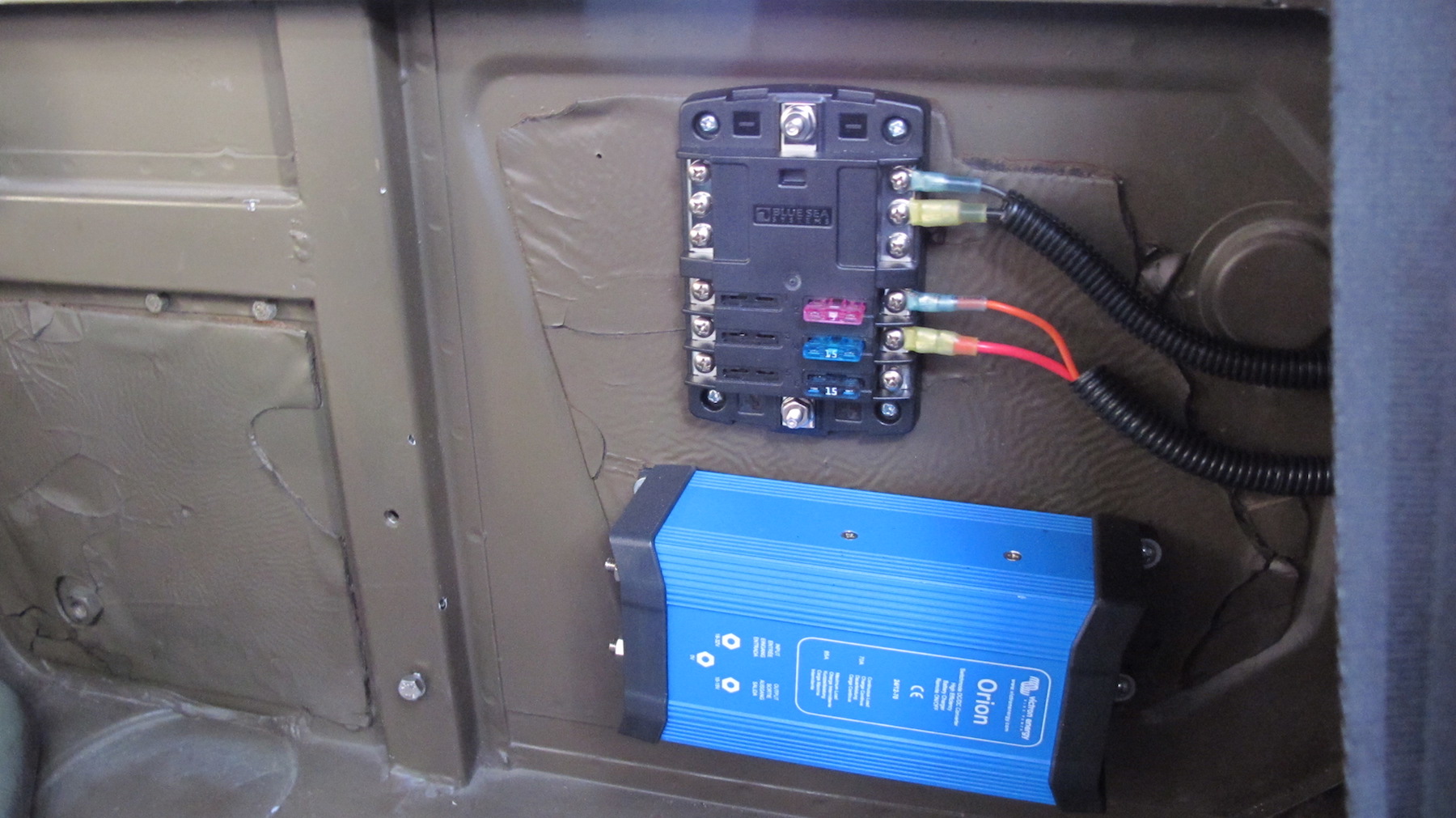

Got the Ham and CB wiring to the fuse box done. And the driver's side mesh divider back in.
IMG_1234 copy.jpg
IMG_1234 copy.jpg (382.88 KiB) Viewed 2152 times
IMG_1235 copy.jpg
IMG_1235 copy.jpg (399.56 KiB) Viewed 2152 times
1971 Pinzgauer 710M, all stock including 245-16 Maloya tires, taken off and stored for show
BFG MT KM2 265/75R16's on Black SAV replacement rims on now

User avatar
audiocontr
United States of America
Posts: 1819
Joined: Fri May 01, 2009 1:30 pm
Location: Detroit Motor City

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by audiocontr » Tue Nov 29, 2016 9:35 am

my head would make contact with those electronics. =)
1973 712m
(2) 1968 Haflingers 1 For Sale
1978 GMC Palm Beach
1979 Mini Ranger For Sale
1986 Corvette For Sale
2001 F250 Diesel and trailer
Company Cars
2019 Expedition
2019 F-150

User avatar
TechMOGogy
Canada
Posts: 2789
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by TechMOGogy » Tue Nov 29, 2016 12:11 pm

Looks like a great job - would the 4 wires not fit in 1 split loom vs running 2?
My head would hit too but clearly yours does not!
Well planned and laid out install
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

User avatar
bbolander
United States of America
Posts: 246
Joined: Sun Oct 23, 2016 11:02 am
Location: Mesquite, NV

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by bbolander » Tue Nov 29, 2016 1:56 pm

TechMOGogy wrote:Looks like a great job - would the 4 wires not fit in 1 split loom vs running 2?
My head would hit too but clearly yours does not!
Well planned and laid out install
I started running them in two looms because the CB wiring has butt-joint connectors that you see in the lower picture that prevented both from sliding in the loom to fish them over the head guard. Now that those connectors are exposed anyway, I could go back and use one loom from the radios to that point. That's an easy change to make later. If I do I'd like to find some vinyl loom like the OEM Pinz loom to use. I thought I saw it on Del City but the last time I looked it was a vinyl wrap around loom. I really don't like the split plastic loom but it was easy to get at the hardware store.

I'm 6 ft tall and have plenty of headroom clearance from the radios. They provide more clearance than the head guards do. I noticed that some have removed the head guards to get the headroom they need.
1971 Pinzgauer 710M, all stock including 245-16 Maloya tires, taken off and stored for show
BFG MT KM2 265/75R16's on Black SAV replacement rims on now

User avatar
bbolander
United States of America
Posts: 246
Joined: Sun Oct 23, 2016 11:02 am
Location: Mesquite, NV

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by bbolander » Wed Nov 30, 2016 7:25 pm

Got the hard part of the DC outlet wiring done. And the RAM mount on the grab bar for the GPS, boy is it heavy duty!
IMG_1238 copy.jpg

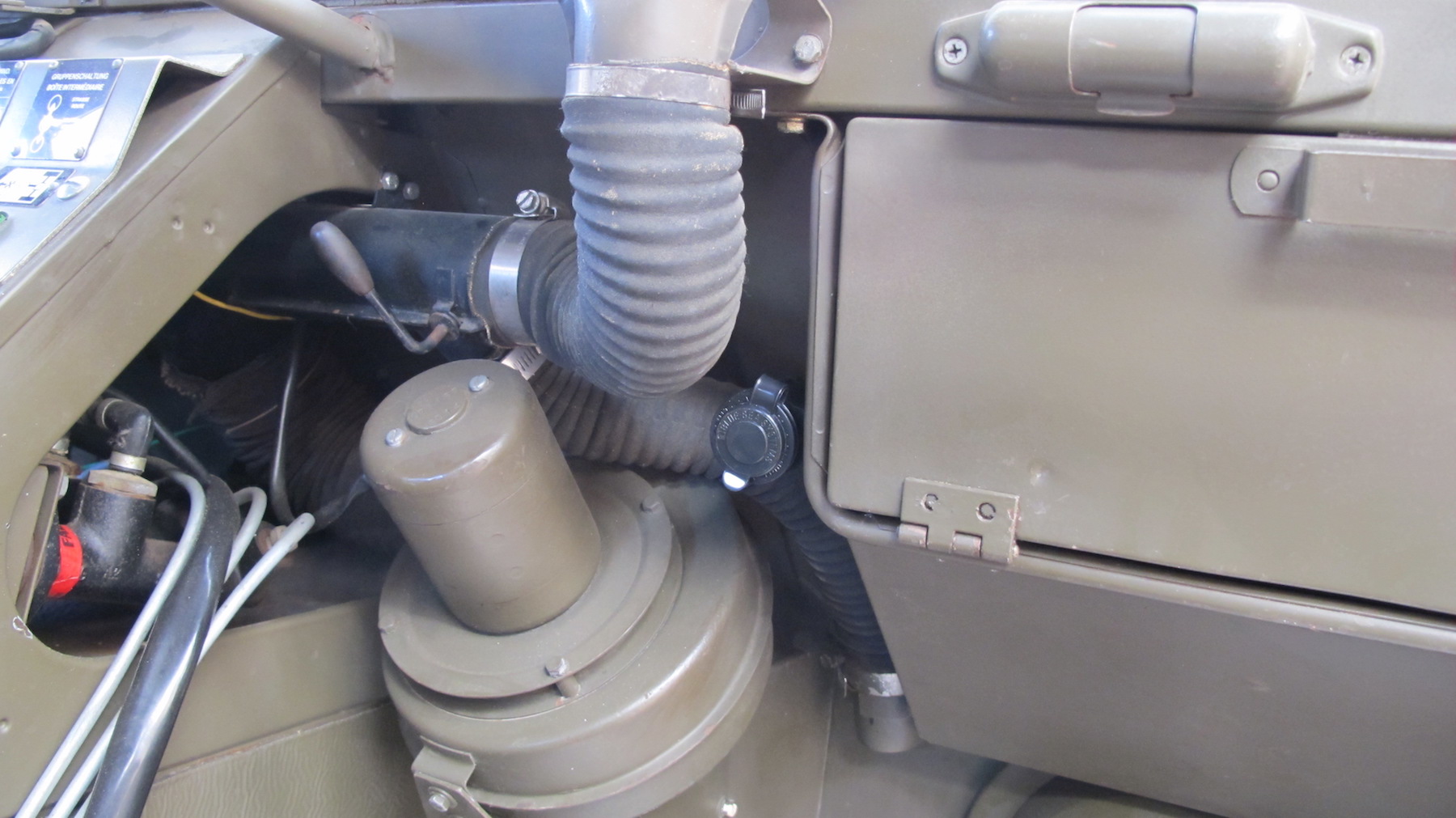

Ran the wiring behind the fan and heater ducts, down along the OEM wiring loom.
IMG_1238 copy.jpg (395.9 KiB) Viewed 2042 times
IMG_1239 copy.jpg

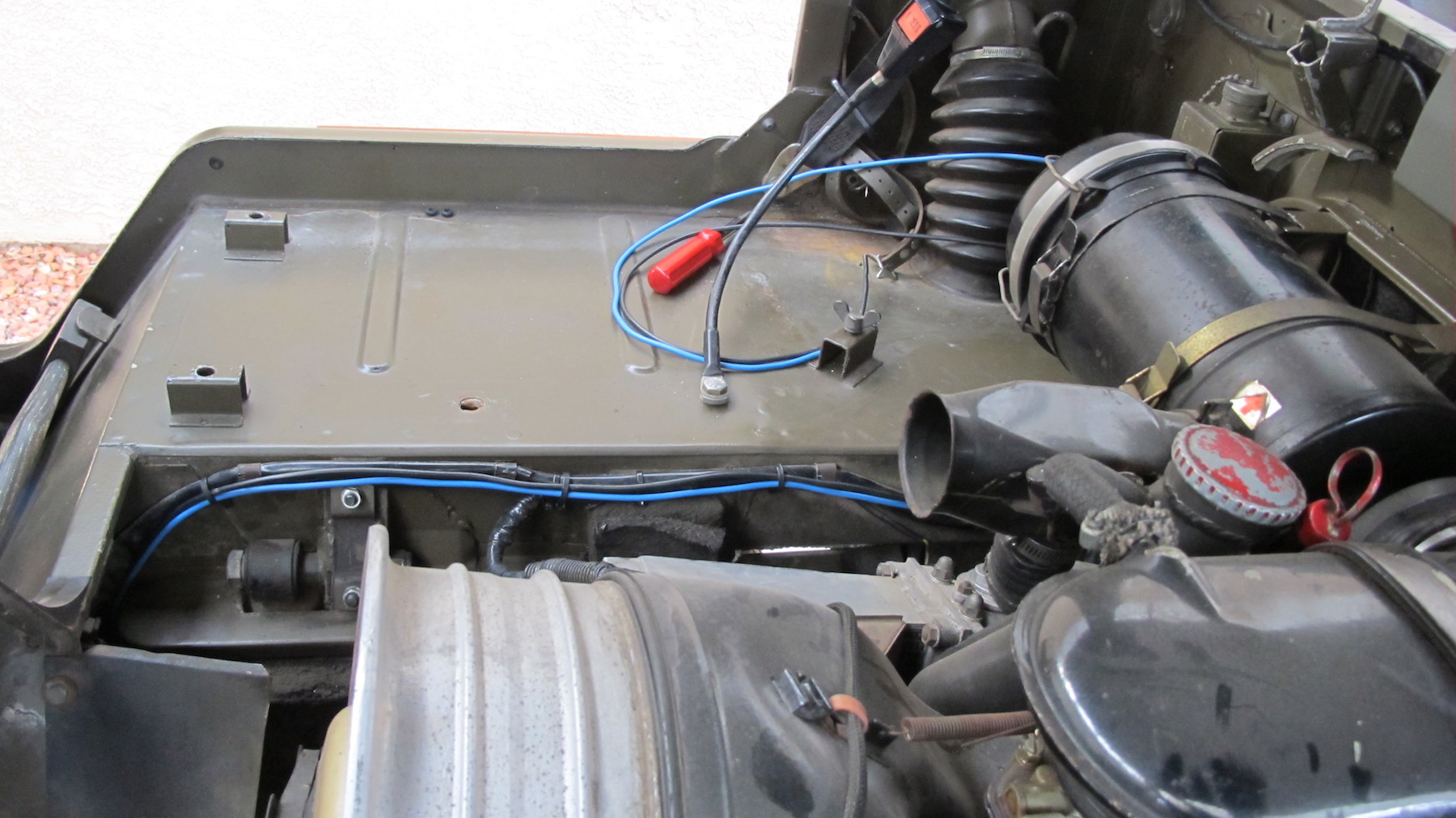

Ran the wiring along the OEM loom in the engine bay.
IMG_1239 copy.jpg (425.47 KiB) Viewed 2042 times
IMG_1240 copy.jpg

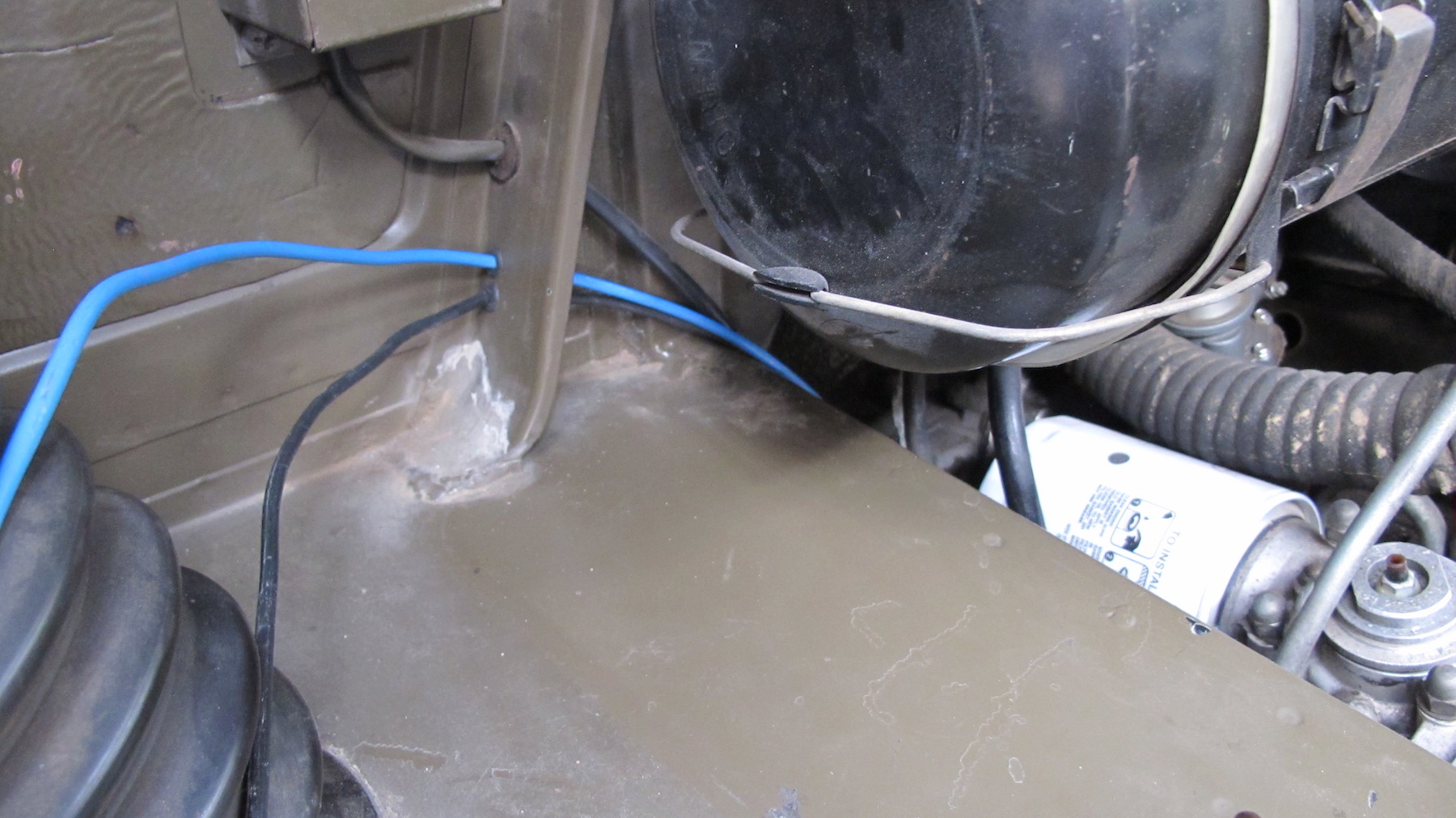

Drilled a couple of holes, added tight fitting grommets.
IMG_1240 copy.jpg (407.32 KiB) Viewed 2042 times
IMG_1241 copy.jpg
Wiring will be routed along the bulkhead along with power wiring from the radio plug.
IMG_1241 copy.jpg (378.8 KiB) Viewed 2042 times
IMG_1243 copy.jpg

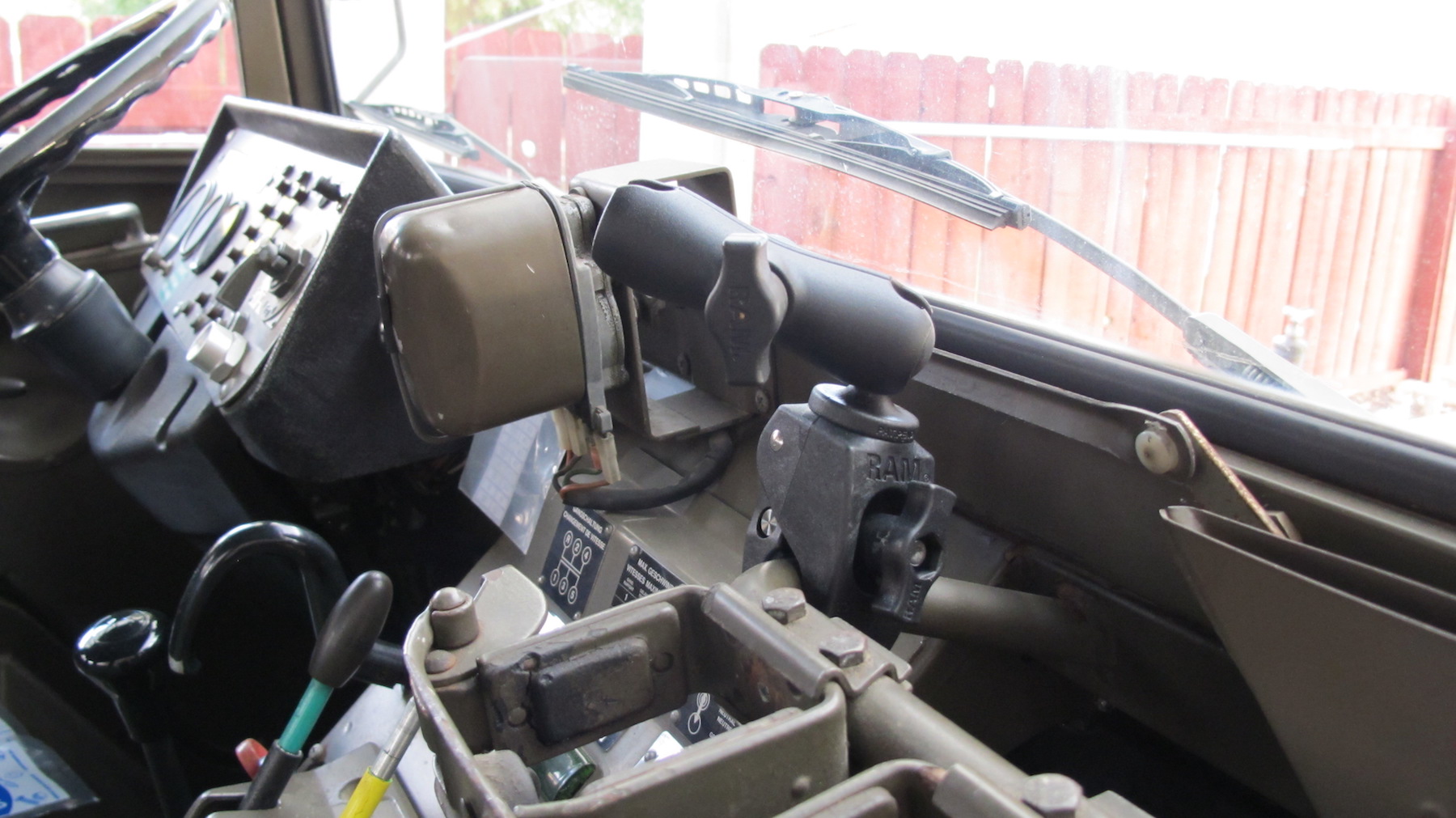

The RAM mount for the GPS is on the round grab bar.
IMG_1243 copy.jpg (392.48 KiB) Viewed 2042 times
1971 Pinzgauer 710M, all stock including 245-16 Maloya tires, taken off and stored for show
BFG MT KM2 265/75R16's on Black SAV replacement rims on now

User avatar
bbolander
United States of America
Posts: 246
Joined: Sun Oct 23, 2016 11:02 am
Location: Mesquite, NV

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by bbolander » Thu Dec 01, 2016 10:01 am

Any recommendations on grounding the 24V-12V DC converter and the 12V fuse box?

The radio plug where the power is coming from has a very short ground wire to the plug box mounting screw which grounds to the bulkhead. I could run that ground wire several feet over to the DC converter. But, there are already two machined holes in the bulkhead vertical support that I could ground to that are very close. Seems like the closer ground is better but I recall to keep the 24V and 12V grounds separate. I could also take the 24V converter ground to the battery switch body ground side. Not sure any of these are better?
IMG_1245 copy.jpg

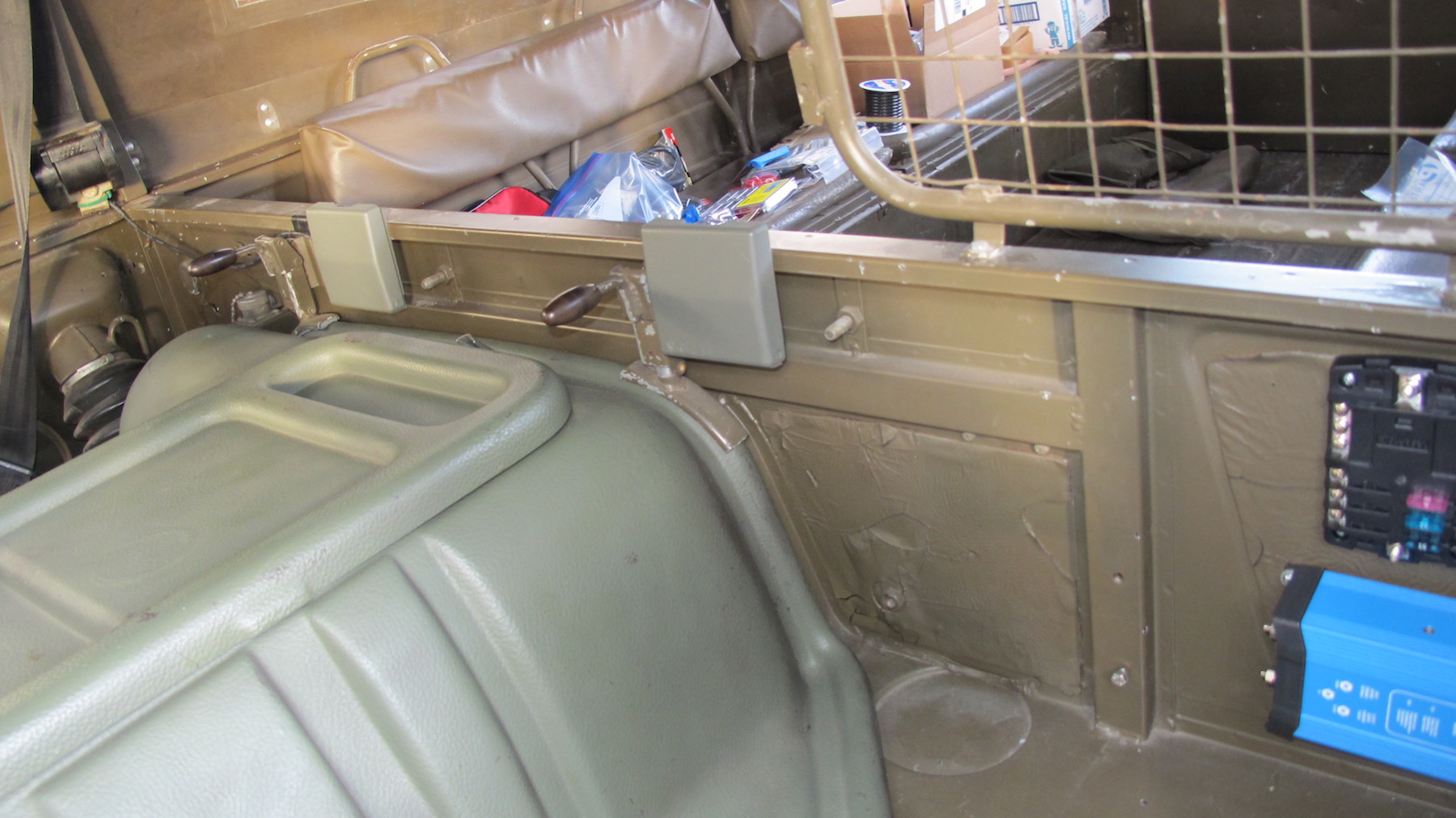

The radio plug on the far left, nearby machined holes on the right vertical bar of the bulkhead.
IMG_1245 copy.jpg (400.28 KiB) Viewed 2020 times
IMG_1244 copy.jpg
Close-up of the two machined holes on the bulkhead, one with my screw in it.
IMG_1244 copy.jpg (419.53 KiB) Viewed 2020 times
IMG_1166 copy.jpg

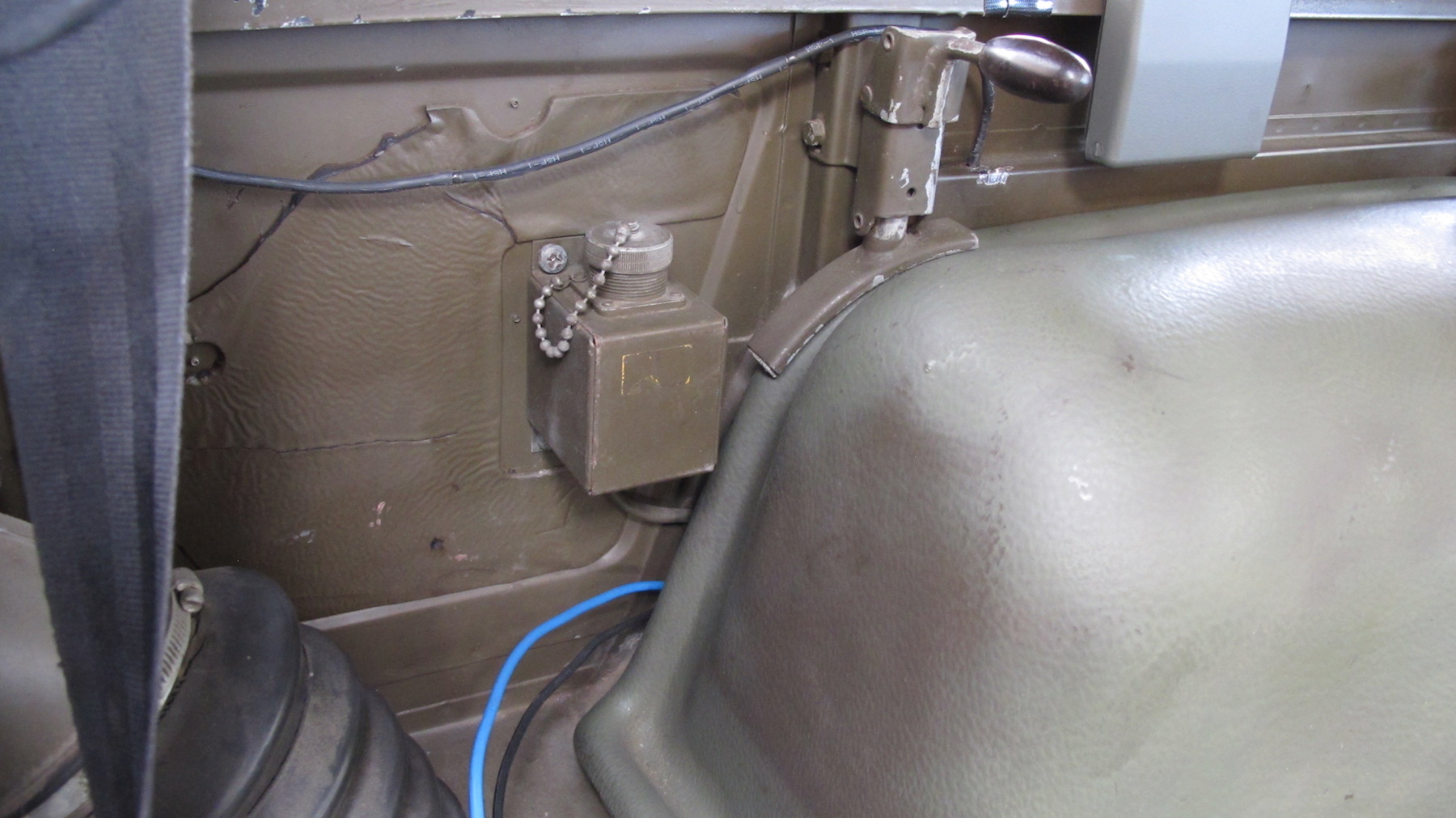

Radio plug short ground to the bulkhead
IMG_1166 copy.jpg (378.84 KiB) Viewed 2020 times
1971 Pinzgauer 710M, all stock including 245-16 Maloya tires, taken off and stored for show
BFG MT KM2 265/75R16's on Black SAV replacement rims on now

User avatar
TechMOGogy
Canada
Posts: 2789
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by TechMOGogy » Thu Dec 01, 2016 12:17 pm

Mine is grounded to the 5 bar which is grounded to the body
I like your cup holders :)
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

User avatar
bbolander
United States of America
Posts: 246
Joined: Sun Oct 23, 2016 11:02 am
Location: Mesquite, NV

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by bbolander » Thu Dec 01, 2016 1:03 pm

TechMOGogy wrote:Mine is grounded to the 5 bar which is grounded to the body
I like your cup holders :)
Thanks, I'll ground both to the bulkhead body panel. Makes no sense to run a long ground wire to the radio plug when the same ground is close by.

The cup holders are a pretty cool solution. They came with the Pinz so I don' t know anything more about them, other than the driver uses the one on the passenger side and the passenger uses the one on the drivers side - that was my instruction from the previous owner!
1971 Pinzgauer 710M, all stock including 245-16 Maloya tires, taken off and stored for show
BFG MT KM2 265/75R16's on Black SAV replacement rims on now

User avatar
4x4Pinz
United States of America
Posts: 978
Joined: Sat Oct 24, 2009 6:17 pm
Location: arizona

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by 4x4Pinz » Thu Dec 01, 2016 3:46 pm

I found and used those cup holders on Ebay some years ago. Don't know if the seller still has them. We had trouble after some time with them breaking so quit using them. The heat here would make the very brittle and even the smallest bump in the road would cause them to break dropping the contents all over everything. When they were new they worked great and stow out of the way when not in use.

User avatar
Jimm391730
United States of America
Posts: 1456
Joined: Wed Apr 14, 2004 10:58 pm
Location: Idyllwild, CA

Re: Got the Ham and CB radios mounted, DC outlet for GPS nex

Post by Jimm391730 » Thu Dec 01, 2016 5:25 pm

When using a 24-12V converter (where the 12V output stops when the 24V is shut off with the battery key) the 12V and 24V can share the same ground (chassis ground). I've done this with all my converters.

On the other hand, if you are using the 12V mid-point tap between the two batteries then it is generally best to NOT use chassis ground (create a separate ground point that is not the same as the chassis for the 12V devices; this can be difficult as many 12V devices expect that the mounting point is the same as ground). With chassis as the 12V grounds, too, opening the battery key can put 12V reverse polarity to the devices if any 24V loads are attempted to be energized (lights, starter, etc.). Of course it is highly recommended to NEVER use the battery mid-point as a source for 12V power; the above is just one problem with doing so.
Jim M.
