Leak from square plug under dash

Post by GadgetPhreak » Mon Mar 14, 2016 12:56 pm

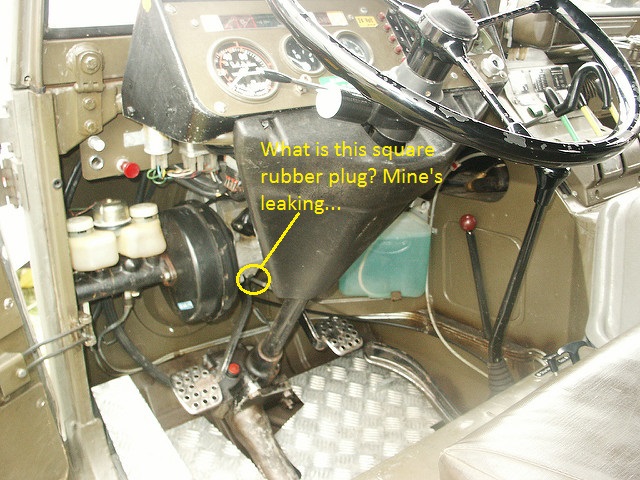

I noticed that there is a square plug that is leaking brake fluid under the dash but can't find it in the parts diagrams. I pulled this image from the web and circled the area where the square plug is located. I also ordered a repair manual from EI but it doesn't arrive until tomorrow and I want to get another parts order in soon. Can you guys identify what it is that's leaking and offer suggestions on how to proceed?

Thanks,
Ben
Attachments
King County Search & Rescue | Regional Special Vehicles Unit
1972 710M - Building up for SAR use
Follow my build: http://www.facebook.com/sarpinz | http://instagram.com/sarpinz

User avatar
pcolette
United States of America
Posts: 1356
Joined: Sun Dec 10, 2006 7:38 pm
Location: Southwest Wisconsin

Re: Leak from square plug under dash

Post by pcolette » Mon Mar 14, 2016 1:13 pm

That's actually a rubber bumper that the clutch and/or brake pedal arm rests against when not depressed. My best guess is that your clutch master cylinder, located directly above, is leaking at the piston end (hidden from view) and is dripping down the inside of the pedal block until it hits that rubber bumper. The clutch system uses brake fluid. The master cylinder can be removed and rebuilt relatively easily. The rebuild kit is #7103265090 and is about $40.
Paul C.
_________
'73 Swiss 710M
'89 Puch 230GE
2002 MB G500 (For Sale)

User avatar
GadgetPhreak
United States of America
Posts: 273
Joined: Wed Jan 27, 2016 12:14 pm
Location: Redmond, WA
Contact:

Re: Leak from square plug under dash

Post by GadgetPhreak » Mon Mar 14, 2016 1:21 pm

Thank you.

That's what I hoped as I'm already re-building the clutch master and slave cylinders.

Ben
King County Search & Rescue | Regional Special Vehicles Unit
1972 710M - Building up for SAR use
Follow my build: http://www.facebook.com/sarpinz | http://instagram.com/sarpinz

User avatar
GadgetPhreak
United States of America
Posts: 273
Joined: Wed Jan 27, 2016 12:14 pm
Location: Redmond, WA
Contact:

Re: Leak from square plug under dash

Post by GadgetPhreak » Mon Mar 14, 2016 2:02 pm

What is the general consensus on re-building vs. installing new Master and Slave Cylinders? I want to build this to last the next 40yrs so my inclination is to install new. But there are a lot of other areas to address so I don't want to spend money needlessly either.

Thoughts?

Ben
King County Search & Rescue | Regional Special Vehicles Unit
1972 710M - Building up for SAR use
Follow my build: http://www.facebook.com/sarpinz | http://instagram.com/sarpinz

User avatar
Haf-e
United States of America
Posts: 822
Joined: Thu Oct 06, 2011 5:25 pm
Location: Mount Vernon WA USA

Re: Leak from square plug under dash

Post by Haf-e » Mon Mar 14, 2016 2:52 pm

I would rebuild the cylinder and see what happens - if it still leaks then consider having the cylinder redone with a stainless steel liner. There are replacement cylinders available but I would prefer a one rebuilt with a factory / oem kit and the stainless sleeve instead of an pattern part made in India myself.
Haf-e

1971 Pinzgauer 710M

Disc Brake Conversion Kits for 710 and 712 Pinzgauers
www.klugewerks.com

User avatar
Jimm391730
United States of America
Posts: 1456
Joined: Wed Apr 14, 2004 10:58 pm
Location: Idyllwild, CA

Re: Leak from square plug under dash

Post by Jimm391730 » Mon Mar 14, 2016 8:05 pm

Our 710M had a leaky clutch master when we bought it; I "rebuilt" it with the new seals. But it still leaked ever so slowly, and years later I decided that for $100 I'd just replace the cylinder and be done with it for a long time.
Jim M.
712W and 710M

User avatar
GadgetPhreak
United States of America
Posts: 273
Joined: Wed Jan 27, 2016 12:14 pm
Location: Redmond, WA
Contact:

Re: Leak from square plug under dash

Post by GadgetPhreak » Mon Mar 14, 2016 9:13 pm

Jim,

Did you re-build or replace the Slave Cylinder at the same time?

I hear that it's best practice to do both together, I haven't checked to see if the slave is leaking yet..

Ben
King County Search & Rescue | Regional Special Vehicles Unit
1972 710M - Building up for SAR use
Follow my build: http://www.facebook.com/sarpinz | http://instagram.com/sarpinz

User avatar
Jimm391730
United States of America
Posts: 1456
Joined: Wed Apr 14, 2004 10:58 pm
Location: Idyllwild, CA

Re: Leak from square plug under dash

Post by Jimm391730 » Mon Mar 14, 2016 11:51 pm

Did you re-build or replace the Slave Cylinder at the same time?
Nope, I've never touched it in the 12 years I've own the 710M; nor had to do either for the 15 years I've owned the 712W. But I have tried to flush they hydraulics (lockers, brakes; can't remember if I done the clutch, or had it done) every few years. Flushing with fresh fluid, getting the old fluid and any contaminants out may be worth a lot to the health and longevity of the systems.
Jim M.
712W and 710M

User avatar
HawaiianGauer
Posts: 52
Joined: Thu Jan 31, 2013 12:17 am
Location: Prescott, AZ

Re: Leak from square plug under dash

Post by HawaiianGauer » Sat Apr 22, 2017 10:33 am

Jimm391730 wrote:
Did you re-build or replace the Slave Cylinder at the same time?
Nope, I've never touched it in the 12 years I've own the 710M; nor had to do either for the 15 years I've owned the 712W. But I have tried to flush they hydraulics (lockers, brakes; can't remember if I done the clutch, or had it done) every few years. Flushing with fresh fluid, getting the old fluid and any contaminants out may be worth a lot to the health and longevity of the systems.
Sorry rookie question here...is flushing as simple as disconnecting a line "at the end" and pumping the clutch or brakes until no more fluid comes out? Or is there a preferred, specific method?
Mahalo for your assistance!

Harry X.
73 'Gauer 712M

check out the X-Gauer in action: https://www.youtube.com/watch?v=cYj_UNQDgpM

User avatar
rmel
United States of America
Posts: 773
Joined: Sun Sep 25, 2011 12:19 pm
Location: Woodside, CA
Contact:

Re: Leak from square plug under dash

Post by rmel » Sat Apr 22, 2017 11:02 am

No need to disconnect the hydraulic line, there's a bleeder valve on the Slave.
Flush liberally! I flushed all my hydraulic lines this winter to find a fair amount
of crud in the clutch system, took over a 1/2 a bottle to clean that out. A lesson
learned to flush regularly e.g. once every two years.

One reason rebuilds fail is pitting in the bore, this is a good sign the fluid absorbed
a fair amount of water. Brake fluid is Glycol-ether and is hygroscopic -- absorbs water.
If you don't see any pitting chances are the cylinders are good for another decade or two.
Puller: 710K 2.7L EFI
Follower: Sankey MK 3, 3/4 Tonne
Driver: Ron // KO0Q
