Length of OEM limit straps?

Issues with shocks/springs, tires, stopping, etc.
Post Reply
Twin Pinzies
Posts: 545
Joined: Mon Jan 03, 2005 1:33 pm
Location: San Juan Mountains, CO

Length of OEM limit straps?

Post by Twin Pinzies » Sat Jul 27, 2013 10:06 pm

I was sick of blowing through stock limit straps ($159 each) years ago so I converted to custom made nylon versions ($34 each). I'm having some new custom length nylon straps made (from OK Offroad) to replace the current worn out ones.
*Nylon limit straps need to be made slightly shorter to allow for the stretch that occurs during break-in.

My question is what is the perfect length? Here are some of my measurements:

The length of the axle drop (with the strut and limit strap removed) = 19.25"
The length of the fully extended Rancho strut (made for the Pinzgauer) = 21.25"
The same distance when sitting on the ground under it's own (empty) weight = 17.25"

Am I right to assume that the 17.5" nylon limit straps that I'm currently running are still the best way to go? It seems really odd that the Pinz is designed to have almost NO axle extension! ?

User avatar
4x4Pinz
United States of America
Posts: 933
Joined: Sat Oct 24, 2009 6:17 pm
Location: arizona

Re: Length of OEM limit straps?

Post by 4x4Pinz » Sat Jul 27, 2013 10:59 pm

we have been running 18" limit straps for several years on a number of our trucks. Not one failure with the nylon strap and no ill effects in the suspension systems have been noted. When the straps hit the max limit it seems much softer then the original straps. We just run two at each location with a spacer. The 18" strap is a stock length so is more cost effective then custom lengths. A new original strap measures real close to 18.25"

User avatar
krick3tt
Posts: 2449
Joined: Thu Mar 16, 2006 6:48 pm
Location: Denver, CO USA

Re: Length of OEM limit straps?

Post by krick3tt » Sat Jul 27, 2013 11:28 pm

Any photos of your set up with them installed? I had thought about the nylon straps years ago but never followed through as my OEM straps
are just fine.
Any man who thinks he can be happy and prosperous by letting the government take care of him:
better take a closer look at the American Indian.---Henry Ford

Twin Pinzies
Posts: 545
Joined: Mon Jan 03, 2005 1:33 pm
Location: San Juan Mountains, CO

Re: Length of OEM limit straps?

Post by Twin Pinzies » Sun Jul 28, 2013 9:57 am

Thanks 4x4Pinz, You just reaffirmed my suspicion that the 18" nylons are the way to go.

I am also running dual nylons all the way around too.

User avatar
4x4Pinz
United States of America
Posts: 933
Joined: Sat Oct 24, 2009 6:17 pm
Location: arizona

Re: Length of OEM limit straps?

Post by 4x4Pinz » Sun Jul 28, 2013 6:30 pm

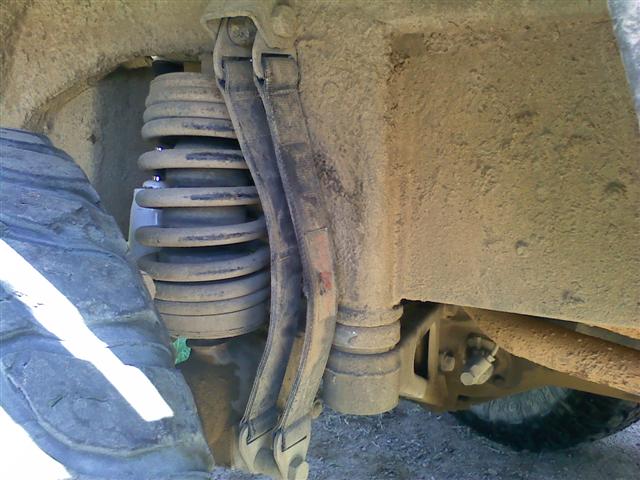

Here is a pic of the limit straps installed, yes they are dirty I do use my truck once in a while :wink:
Attachments
0728131515 (Small).jpg
0728131515 (Small).jpg (60.07 KiB) Viewed 2972 times

User avatar
berger
Canada
Posts: 1169
Joined: Fri Jan 20, 2012 3:36 pm
Location: Ottawa, Canada

Re: Length of OEM limit straps?

Post by berger » Sun Jul 28, 2013 7:33 pm

At what point do they need to be replaced? I have noticed that one or two strands are frayed on one strap, but nothing to serious.


Sent from my Mobile
Ottawa, Canada
1974 710M
2007 2WD Ural Patrol

compunerdy
Posts: 204
Joined: Wed Feb 13, 2013 12:04 am
Location: Cashmere,WA

Re: Length of OEM limit straps?

Post by compunerdy » Sun Jul 28, 2013 7:40 pm

4x4pinz.. what brand are you using?
Tim
1975 710K

User avatar
4x4Pinz
United States of America
Posts: 933
Joined: Sat Oct 24, 2009 6:17 pm
Location: arizona

Re: Length of OEM limit straps?

Post by 4x4Pinz » Sun Jul 28, 2013 10:11 pm

Have had these straps on for a few years now. Mark's old 712 has had them on at least a year longer then mine and while his truck did not see as much trail time the straps look great. the tires (285 16 75r on widened rims) rub them when at full suspension compression and making hard turns. The reason I chose to run two was in the event one broke I would still have time to get it replaced without concern for suspension damage. When the single originals would fail I would take the truck off the trail to prevent any damage to the running gear.
the ones I have on my 712 (in photo) are from SDHQ but they are similar to the ones available at most quality offroad centers. All the rock buggies use them to limit their travel.

michaelh712
Posts: 164
Joined: Wed Apr 14, 2004 3:14 pm

Re: Length of OEM limit straps?

Post by michaelh712 » Wed Jul 31, 2013 12:09 pm

Mike,
can you share information about the spacers and perhaps where to obtain them? Do I need longer bolts? I have the straps and it's time to install them.

thanks,
Michael
Michaelh712
michaelh@updc.org
Educational Anarchist

User avatar
4x4Pinz
United States of America
Posts: 933
Joined: Sat Oct 24, 2009 6:17 pm
Location: arizona

Re: Length of OEM limit straps?

Post by 4x4Pinz » Wed Jul 31, 2013 5:25 pm

I used 3/4 black pipe, being a plumber has its advantages, cut to length to fit between the two straps. I used the original bolts. The strap brackets are only about 1/4' and the original straps are about 1 1/2 inch so the difference had to be made up.

michaelh712
Posts: 164
Joined: Wed Apr 14, 2004 3:14 pm

Re: Length of OEM limit straps?

Post by michaelh712 » Wed Jul 31, 2013 9:23 pm

Thanks Mike,
this helps.
Michaelh712
michaelh@updc.org
Educational Anarchist

cronapress
Posts: 127
Joined: Wed Aug 25, 2004 12:30 pm
Location: Ayrshire, Scotland.

Re: Length of OEM limit straps?

Post by cronapress » Sat Jun 03, 2017 8:56 am

I bought 4 nylon straps from OK Offroad about 3 years ago for the rear axle of my 712. Very pleased with them. The original straps on the centre axle went twang a couple of weeks ago whilst fording a river that had a hidden hole in the bed, which seemed to equal the depth of the Mariana Trench (?) :shock: I bought another 4 for that axle. Re-used the centre bushes after cutting to right length. The folks at OK Offroad were again really helpful and dispatched straps pronto. Highly recommended !!

User avatar
4x4Pinz
United States of America
Posts: 933
Joined: Sat Oct 24, 2009 6:17 pm
Location: arizona

Re: Length of OEM limit straps?

Post by 4x4Pinz » Sat Jun 03, 2017 6:50 pm

I have been running these same ones and have had no issues. I played with the heavier springs and have since replaced the front springs with stock. Still no issues with the straps. One rubbed a tire once somewhere along the trail and has a slight fraying mark from that contact but other then that they look like they did when they went in only a little dirtier now.

Post Reply
