Auxillary switch placement- What have you done?

All things body, interior, paint, windows, tops... you know.
User avatar
Jimm391730
United States of America
Posts: 1456
Joined: Wed Apr 14, 2004 10:58 pm
Location: Idyllwild, CA

Re: Auxillary switch placement- What have you done?

Post by Jimm391730 » Mon Nov 27, 2017 10:42 am

Ron, where and how does all the wiring run to all your overhead consoles?
Jim M.
712W and 710M

User avatar
rmel
United States of America
Posts: 918
Joined: Sun Sep 25, 2011 12:19 pm
Location: Woodside, CA
Contact:

Re: Auxillary switch placement- What have you done?

Post by rmel » Mon Nov 27, 2017 11:01 am

Two wiring harnesses, one for the heads up which runs along the top of the door jam down the side
then into the rear compartment, sending unit wiring goes through the bulkhead into the engine compartment.
On the passenger side, goes a similar route, catching the ECU for AFR and a Fuel pressure sender in the
engine bay. All good fun, esp. when something fails you you have to debug it :wink:
Last edited by rmel on Mon Nov 27, 2017 2:50 pm, edited 1 time in total.
Puller: 71' 710K 2.7L EFI aka Mozo
Follower: Sankey MK 3, 3/4 Tonne
Rescue Pinz: 73' 712M

Driver: Ron // KO0Q

whitesik
United States of America
Posts: 112
Joined: Thu Apr 02, 2015 2:11 pm
Location: Indiana, U.S.A.

Re: Auxillary switch placement- What have you done?

Post by whitesik » Mon Nov 27, 2017 12:29 pm

Thanks everyone for answering my questions.

Ron, how does your front overhead console attach to the K body?
75 Swiss 710K
Not so new owner but still a novice

User avatar
rmel
United States of America
Posts: 918
Joined: Sun Sep 25, 2011 12:19 pm
Location: Woodside, CA
Contact:

Re: Auxillary switch placement- What have you done?

Post by rmel » Mon Nov 27, 2017 2:55 pm

Sheet metal screws, there are a number of "cavities" over head that can
take a screw and not break through to the open air -- so to speak. Kind'a
works out OK, but it's not designed for easy access. If I were to do this
over, first go Aluminum for reduced weight, then design in a hinged
mounting frame with 1/2 twist locks for easy access and future mods.
Puller: 71' 710K 2.7L EFI aka Mozo
Follower: Sankey MK 3, 3/4 Tonne
Rescue Pinz: 73' 712M

Driver: Ron // KO0Q

User avatar
GadgetPhreak
United States of America
Posts: 281
Joined: Wed Jan 27, 2016 12:14 pm
Location: Redmond, WA
Contact:

Re: Auxillary switch placement- What have you done?

Post by GadgetPhreak » Tue Nov 28, 2017 12:49 am

Mule did some, not all of the work. The overhead console we fabbed at my place and a buddy finish assembled and rhino lined it.


Sent from my iPhone using Tapatalk
King County Search & Rescue | Regional Special Vehicles Unit
1972 710M - Building up for SAR use
Follow my build: http://www.facebook.com/sarpinz | http://instagram.com/sarpinz

User avatar
VinceAtReal4x4s
Admin
United States of America
Posts: 1676
Joined: Mon Apr 12, 2004 10:36 pm
Location: Ca. or lost in South West USA
Contact:

Re: Auxillary switch placement- What have you done?

Post by VinceAtReal4x4s » Tue Nov 28, 2017 1:29 am

Nutsert
"For those who risk, life has a flavor the protected shall never enjoy"

Real4x4 Facebook https://www.facebook.com/real4x4s


Derrickbwg
United States of America
Posts: 81
Joined: Sat Dec 16, 2017 8:09 pm
Location: TN

Re: Auxillary switch placement- What have you done?

Post by Derrickbwg » Thu Jan 25, 2018 1:14 pm

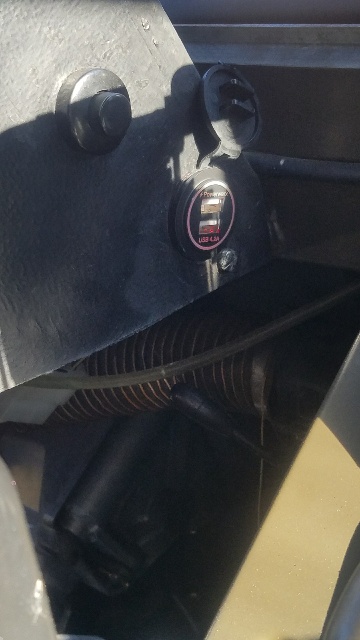

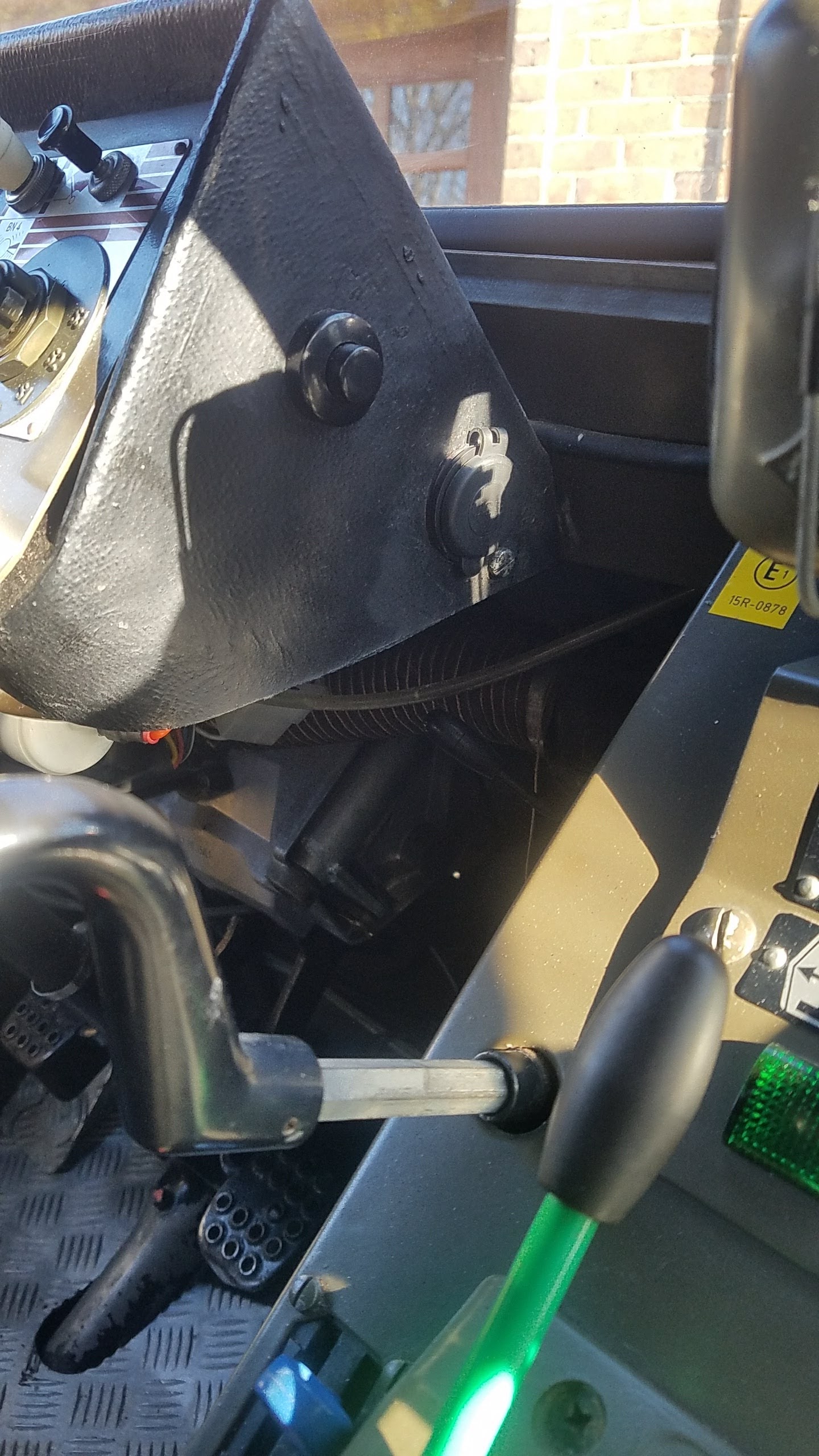

Trying to keep everything 24v (winch and cb) but I needed a USB plug. Found this Powerwerks 24v 4.2amp plug and installed it as inconspicuously as I could as I'm trying to retain the military look. Good plug that charges galaxy 7 very quickly and was apx. $25.
Attachments
Last edited by Derrickbwg on Thu Jan 25, 2018 3:07 pm, edited 2 times in total.
1975 710K
1974 710M
2018 G63

User avatar
TechMOGogy
Canada
Posts: 2798
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: Auxillary switch placement- What have you done?

Post by TechMOGogy » Thu Jan 25, 2018 1:21 pm

I like it - where did you find the 24v usb plug?
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

Derrickbwg
United States of America
Posts: 81
Joined: Sat Dec 16, 2017 8:09 pm
Location: TN

Re: Auxillary switch placement- What have you done?

Post by Derrickbwg » Thu Jan 25, 2018 1:37 pm

1975 710K
1974 710M
2018 G63

User avatar
VinceAtReal4x4s
Admin
United States of America
Posts: 1676
Joined: Mon Apr 12, 2004 10:36 pm
Location: Ca. or lost in South West USA
Contact:

Re: Auxillary switch placement- What have you done?

Post by VinceAtReal4x4s » Thu Jan 25, 2018 9:39 pm

Oh man, I wish I'd not seen that. I didn't know they made an OLED volt gauge! On my "must buy, you have no choice" list now. :?
https://powerwerx.com/blue-sea-1733-ole ... -voltmeter
