Locker indicator panel resturation

Post by rmel » Thu Mar 14, 2019 11:35 am

Restored my locker indicator panel for my 712 project.

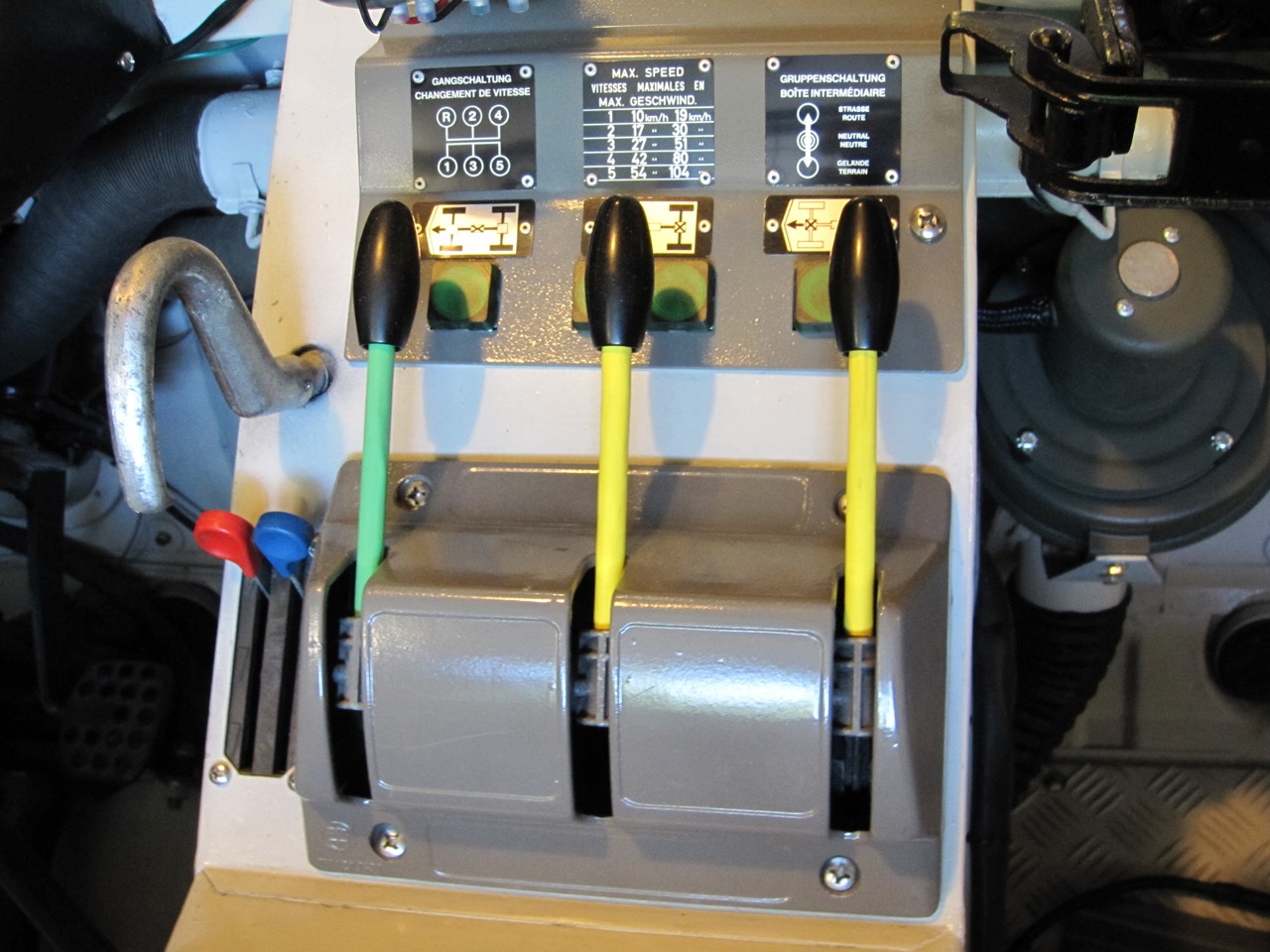

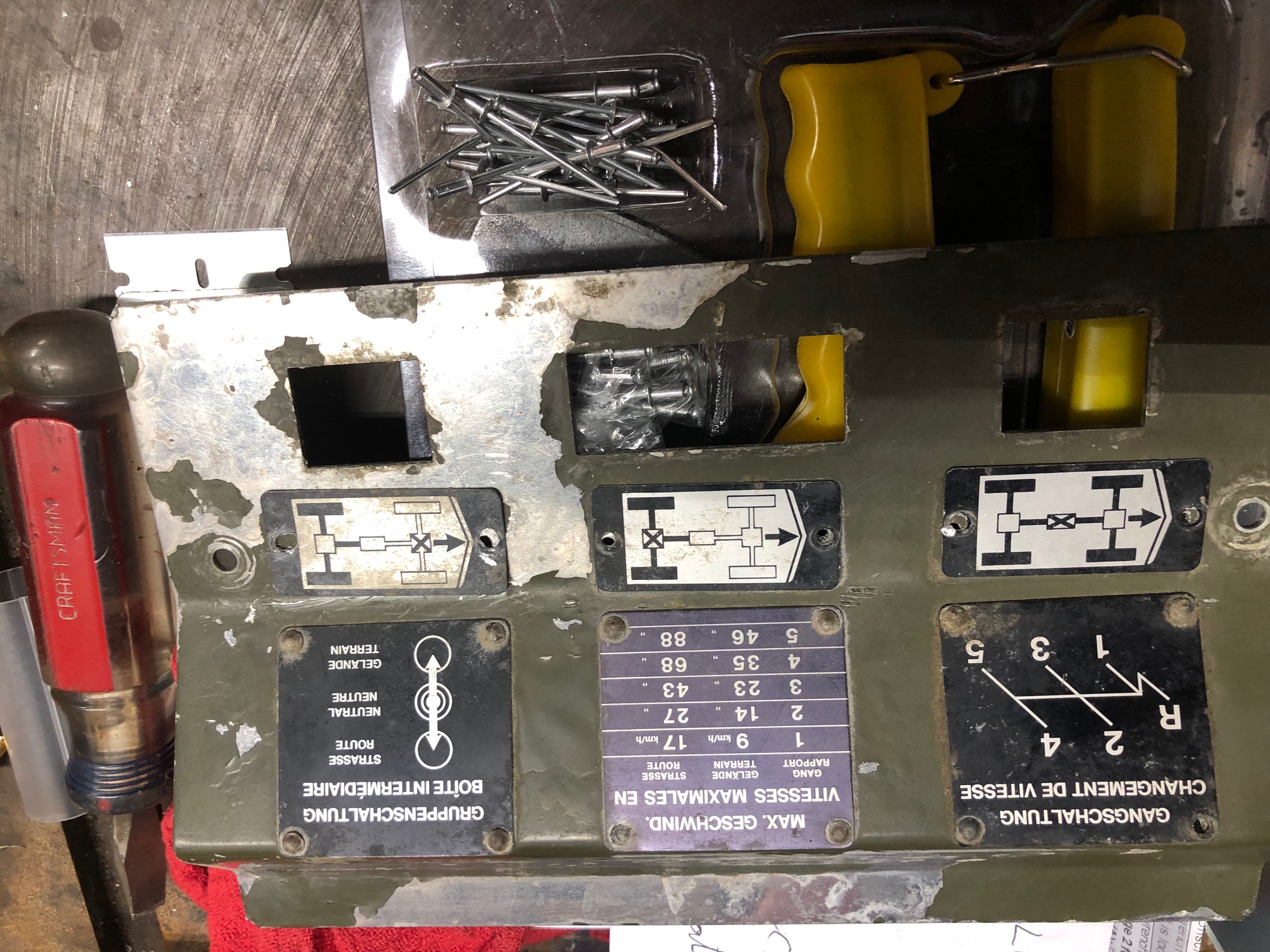

One in the truck was in bad shape, as below. Thought
this would be a quick fix but as usual there are challenges.
The hardest part was removing the rivets on the data plates :x
These turned out to be steel rivets. What I ended up doing that
worked pretty well was to carefully grind then down flush using
a diamond wheel on a drill press. Then I used a carpenters spring
loaded brass punch to knock them out. Took some patience and
practice.

Stripped old paint off, and applied a Rust-oleum Metallic finish.
Used a HF 3/32" pop rivet which fits perfectly in the old hole but
tight.

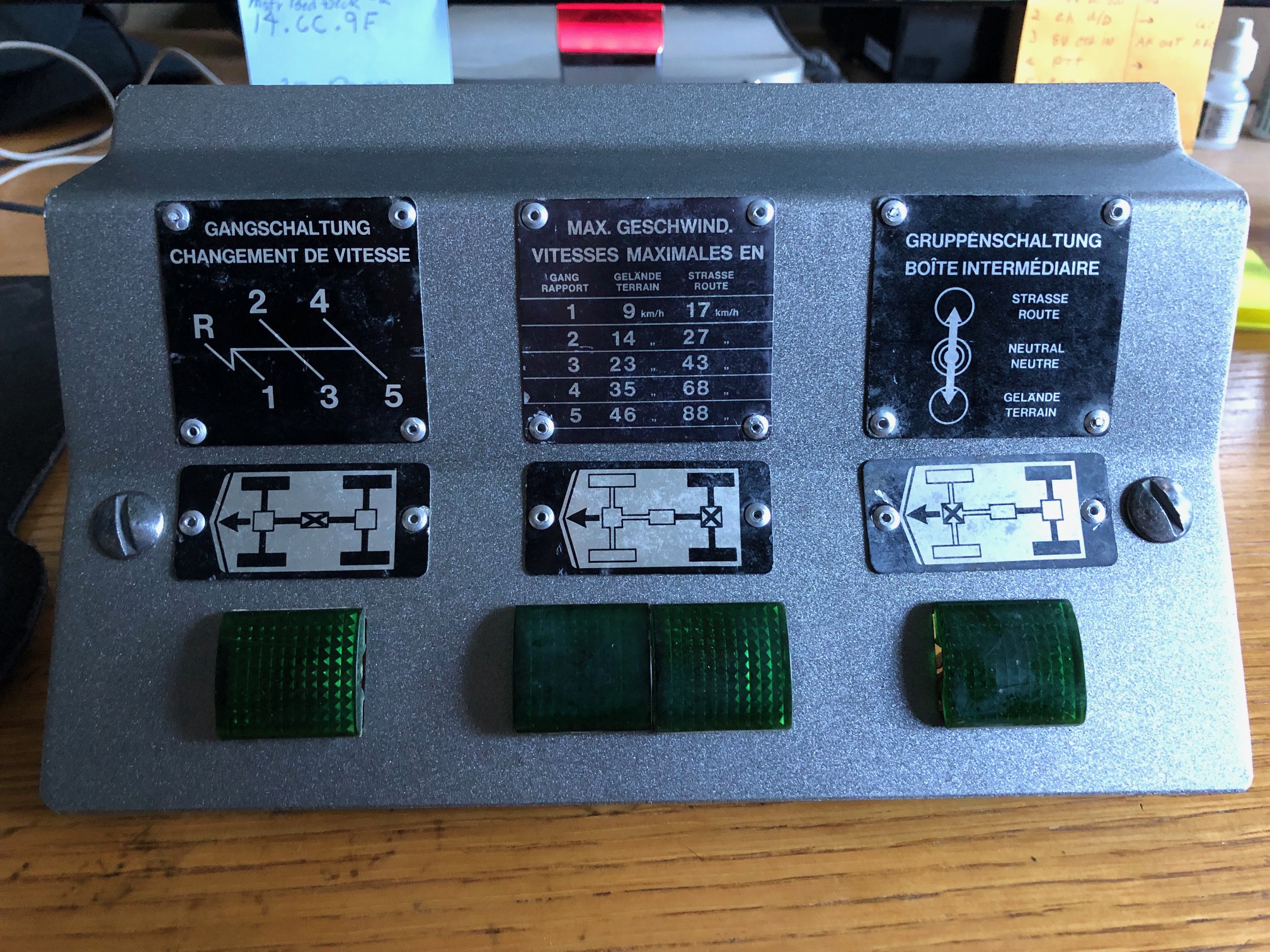

More pleasing to the eye now 8)
Puller: 71' 710K 2.7L EFI aka Mozo
Follower: Sankey MK 3, 3/4 Tonne
Rescue Pinz: 73' 712M

Driver: Ron // KO0Q

User avatar
pcolette
United States of America
Posts: 1406
Joined: Sun Dec 10, 2006 7:38 pm
Location: Southwest Wisconsin

Re: Locker indicator panel resturation

Post by pcolette » Thu Mar 14, 2019 11:56 am

Very nice! We have similar tastes.
As you said, I remember those rivets being a real bear to remove. Nice solution you came up with.

I switched to LED lamps at the time because the originals were not available and the old ones were very sad looking.
Paul C.
_________
'73 Swiss 710M
'89 Puch 230GE
2002 MB G500 (For Sale)

Texas710
United States of America
Posts: 159
Joined: Thu Jan 22, 2015 4:00 pm
Location: San Antonio, TX

Re: Locker indicator panel resturation

Post by Texas710 » Thu Mar 14, 2019 12:19 pm

Pcolette - I would be interested in where you got those LEDs? Are they just a direct drop in? The green indicator covers just won't stay on my panel and would love an alternative.

Thanks

Both those panels look very nice, btw!

User avatar
pcolette
United States of America
Posts: 1406
Joined: Sun Dec 10, 2006 7:38 pm
Location: Southwest Wisconsin

Re: Locker indicator panel resturation

Post by pcolette » Thu Mar 14, 2019 1:24 pm

Texas710,
As I recall I bought those from SAV in 2010 and I now realize they were not LED. I don't see them on the SAV website now.

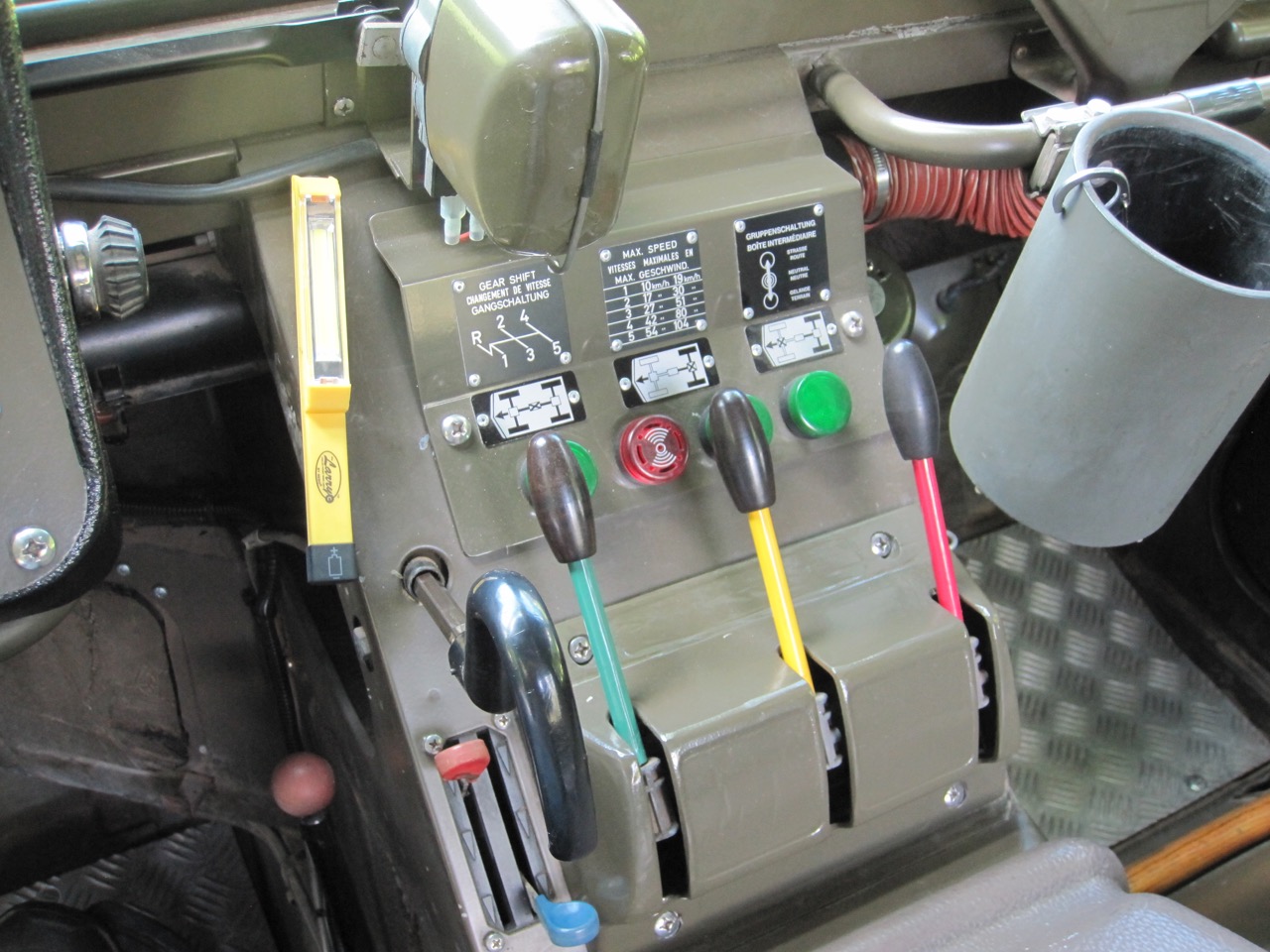

The round ones in the following picture are LED and I bought them from McMaster #7380K32. Not inexpensive at $13.75 a piece and require a round hole. I had the panel fabricated by a local shop.
Paul C.
_________
'73 Swiss 710M
'89 Puch 230GE
2002 MB G500 (For Sale)

User avatar
rmel
United States of America
Posts: 884
Joined: Sun Sep 25, 2011 12:19 pm
Location: Woodside, CA
Contact:

Re: Locker indicator panel resturation

Post by rmel » Thu Mar 14, 2019 6:48 pm

BTW for just about all bulb bases, there are LED replacements. Both 12V and 24V.
I believe the locker lamps are BA9. Bought some of these off AMZN some time ago.
Bright, low current, but you have to file down the top slightly as it protrudes a tad
more then a std bulb.

The only difference from a 12V vs a 24V LED bulb is the value of the limiting resistor
built into the base.

https://www.amazon.com/gp/product/B00HZ ... UTF8&psc=1
Puller: 71' 710K 2.7L EFI aka Mozo
Follower: Sankey MK 3, 3/4 Tonne
Rescue Pinz: 73' 712M

Driver: Ron // KO0Q

Texas710
United States of America
Posts: 159
Joined: Thu Jan 22, 2015 4:00 pm
Location: San Antonio, TX

Re: Locker indicator panel resturation

Post by Texas710 » Fri Mar 15, 2019 10:01 am

Thanks for the help!

User avatar
David Dunn
Posts: 2175
Joined: Wed Apr 14, 2004 7:08 pm
Location: Arcadia, CA

Re: Locker indicator panel resturation

Post by David Dunn » Sat Mar 16, 2019 12:32 pm

Thought
this would be a quick fix but as usual there are challenges.
The hardest part was removing the rivets on the data plates :x
Nice job Ron, but the rivets grind off from the back without any problem. :lol:

But now that you're retired, time doesn't matter. :roll: :lol:
.
The Trojan Horse... the 1st Pinz used to covertly carry troops into battle .




ATL Pinzgauer XM 718K TUM(HD) 6x6 FFR (aka The Green Grail)

User avatar
rmel
United States of America
Posts: 884
Joined: Sun Sep 25, 2011 12:19 pm
Location: Woodside, CA
Contact:

Re: Locker indicator panel resturation

Post by rmel » Sat Mar 16, 2019 7:04 pm

Yes, I ground these off from the backside.
Although there was one I had to grind the
mushroom off from the front side, it was just
one stubborn rivet.
Puller: 71' 710K 2.7L EFI aka Mozo
Follower: Sankey MK 3, 3/4 Tonne
Rescue Pinz: 73' 712M

Driver: Ron // KO0Q

User avatar
Brickren
United States of America
Posts: 177
Joined: Wed Jan 02, 2008 1:39 pm
Location: NW Pa.
Contact:

Re: Locker indicator panel resturation

Post by Brickren » Sun Apr 21, 2019 8:37 am

What a really nice job that came out. It's funny you had so much trouble with the rivets. Like that plates going to jump off the dash. But the wiper system on a pinzgauer, is the most fragile thing I've seen.
1975 710M
