1 winch mount for different pinz bumpers and for gas and TD

Post by gunipinzmutt » Thu Dec 27, 2018 4:11 pm

As I own few different models of Pinzgauers, both gasoline and diesel, with different bumpers, and only one winch, I decided to construct
a) one movable mount for 710-712s,
b) few brackets to be bolt on 716-718s
c) one cradle for my sole winch to suit all of them (and also a military G-classe).

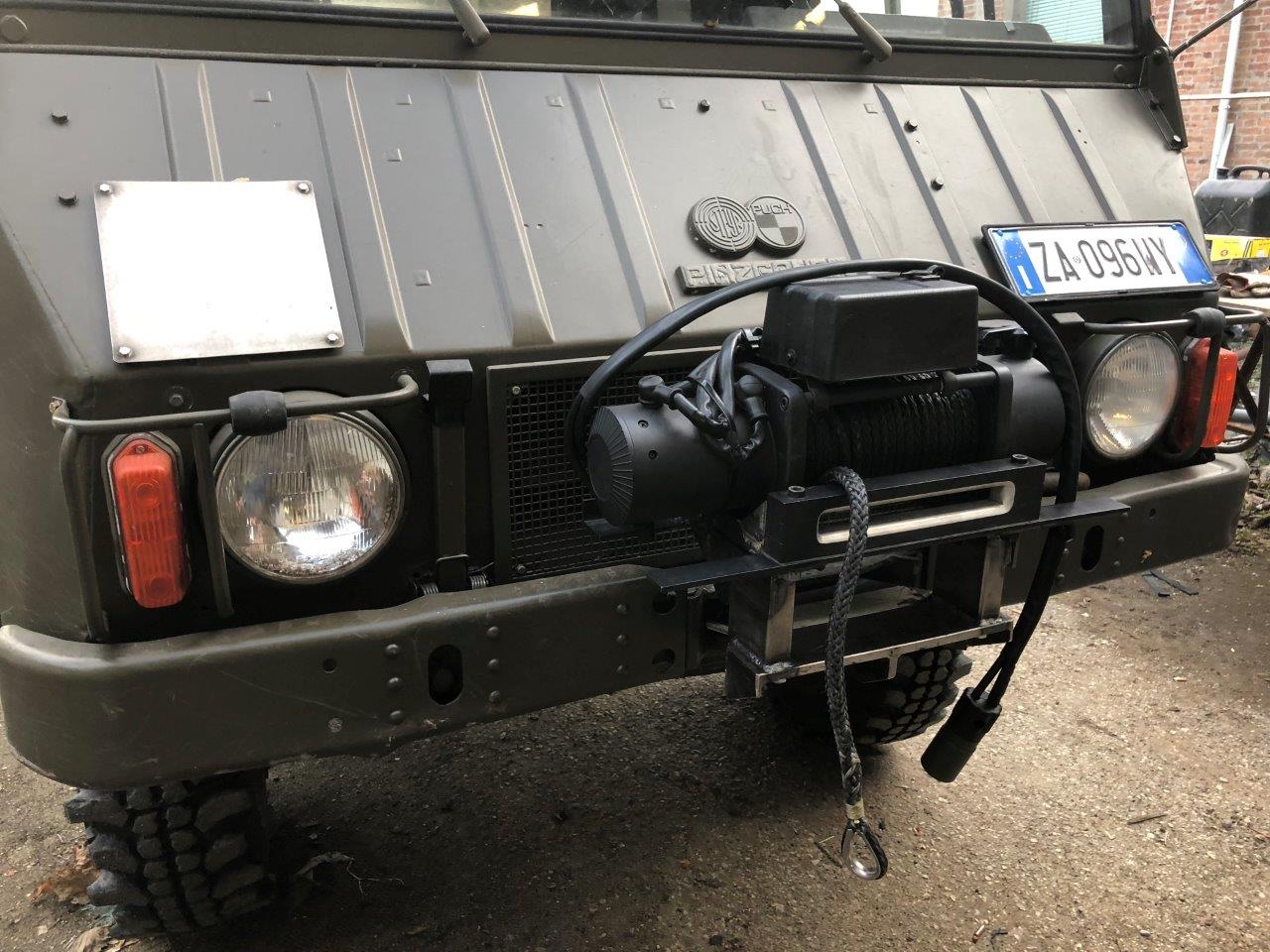

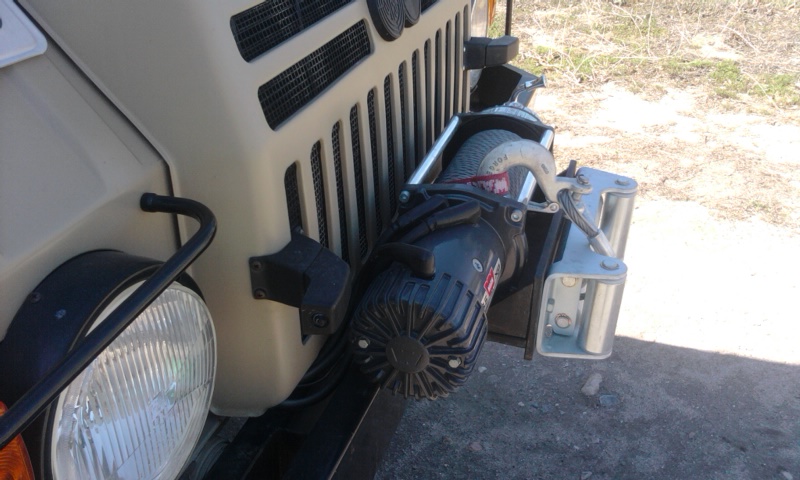

Herewith the standard gas bumperettes set, others will follow.
Cheers
Gunipinzmutt
Attachments
2017-12-02 15.46.36.jpg
2017-12-02 15.46.36.jpg (192.09 KiB) Viewed 847 times
2017-12-02 15.46.55.jpg
2017-12-02 15.46.55.jpg (186.82 KiB) Viewed 847 times
Pinz: 710 m, 710 ms, 710 k, 712 m fla, 712 k, 716 m, 718 m san, 716 k, 718 rehinbraun
Haflinger: 700, 703
G: 250, 270, 400, 350
Unimog 406
M825, M151 A2, M416
Fiat Panda 141A 4x4
Fresia F18

pinzi
Belgium
Posts: 134
Joined: Sun Nov 09, 2008 4:23 am
Location: belgium

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by pinzi » Fri Dec 28, 2018 9:30 am

Sorry but i wouldnt use this setup on my 716 :?
off-road until i die

gunipinzmutt
Italy
Posts: 60
Joined: Wed Nov 08, 2006 1:40 am
Location: Italy

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by gunipinzmutt » Fri Dec 28, 2018 5:07 pm

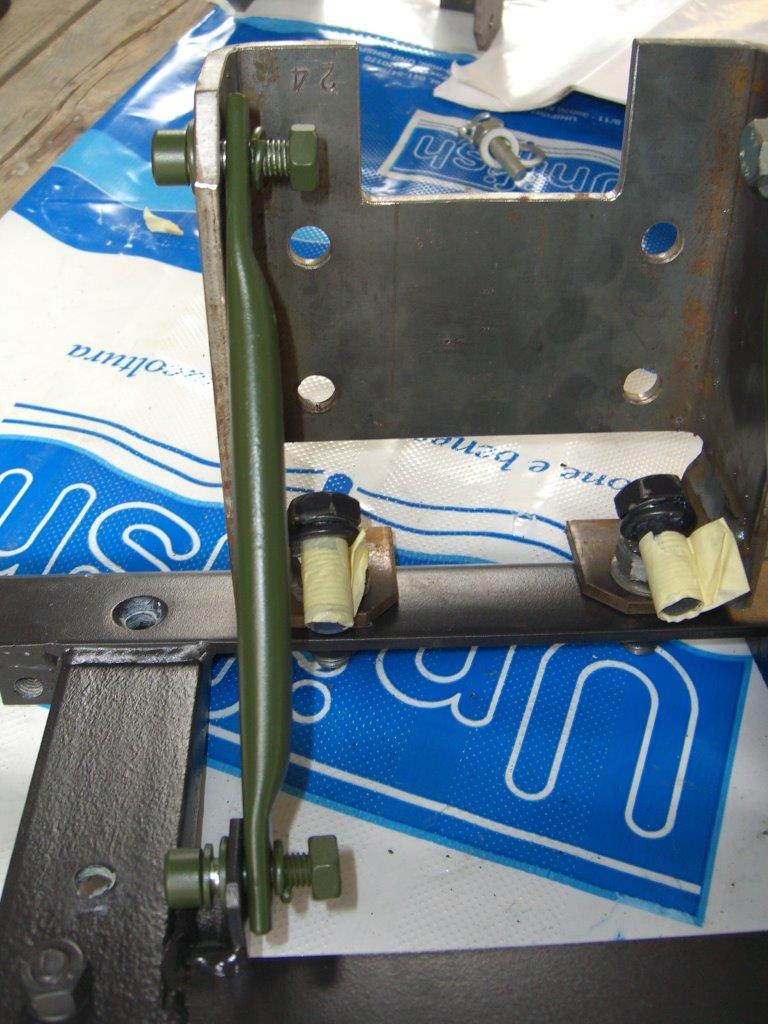

Here is TD mount for same cradle. No interference with bull bar (not shown).
Attachments
2017-10-08 16.57.04.jpg
2017-10-08 16.57.04.jpg (209.15 KiB) Viewed 804 times
Pinz: 710 m, 710 ms, 710 k, 712 m fla, 712 k, 716 m, 718 m san, 716 k, 718 rehinbraun
Haflinger: 700, 703
G: 250, 270, 400, 350
Unimog 406
M825, M151 A2, M416
Fiat Panda 141A 4x4
Fresia F18

User avatar
4x4Pinz
United States of America
Posts: 984
Joined: Sat Oct 24, 2009 6:17 pm
Location: arizona

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by 4x4Pinz » Fri Dec 28, 2018 7:58 pm

Since I have several different offroad vehicles and so do my friends, I just picked up a grip hoist. works on any vehicle or object I wish to move with no questionable mounts. Just used it to recover a SXS that was hit head on. I was not in one of my trucks but was still able to get the job done since we had the grip hoist with us.

User avatar
David Dunn
Posts: 2188
Joined: Wed Apr 14, 2004 7:08 pm
Location: Arcadia, CA

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by David Dunn » Fri Dec 28, 2018 9:02 pm

I’m sorry, I do not see the structural integrity of the bar and angle material in this use and the lack of angle bracing required to keep things from tweaking in any angled pull. It is hard to say, but from the photos it appears you are using 6mm (1/4”) material, which is too thin for any off center hard pulls.

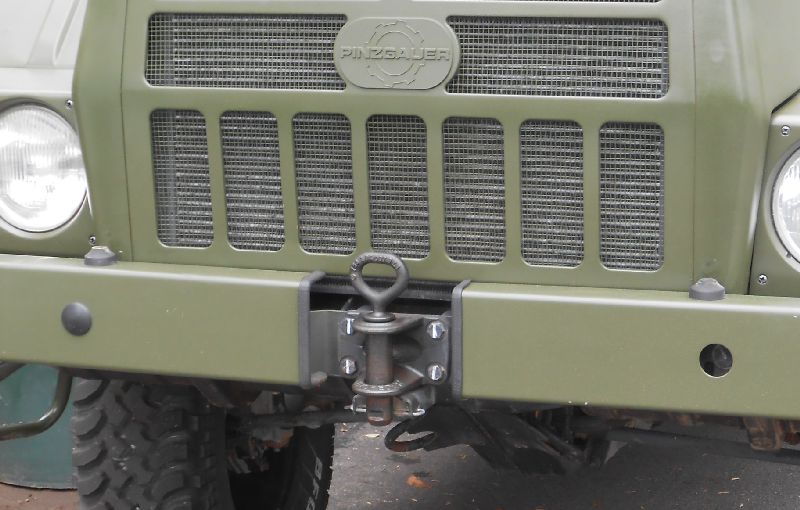

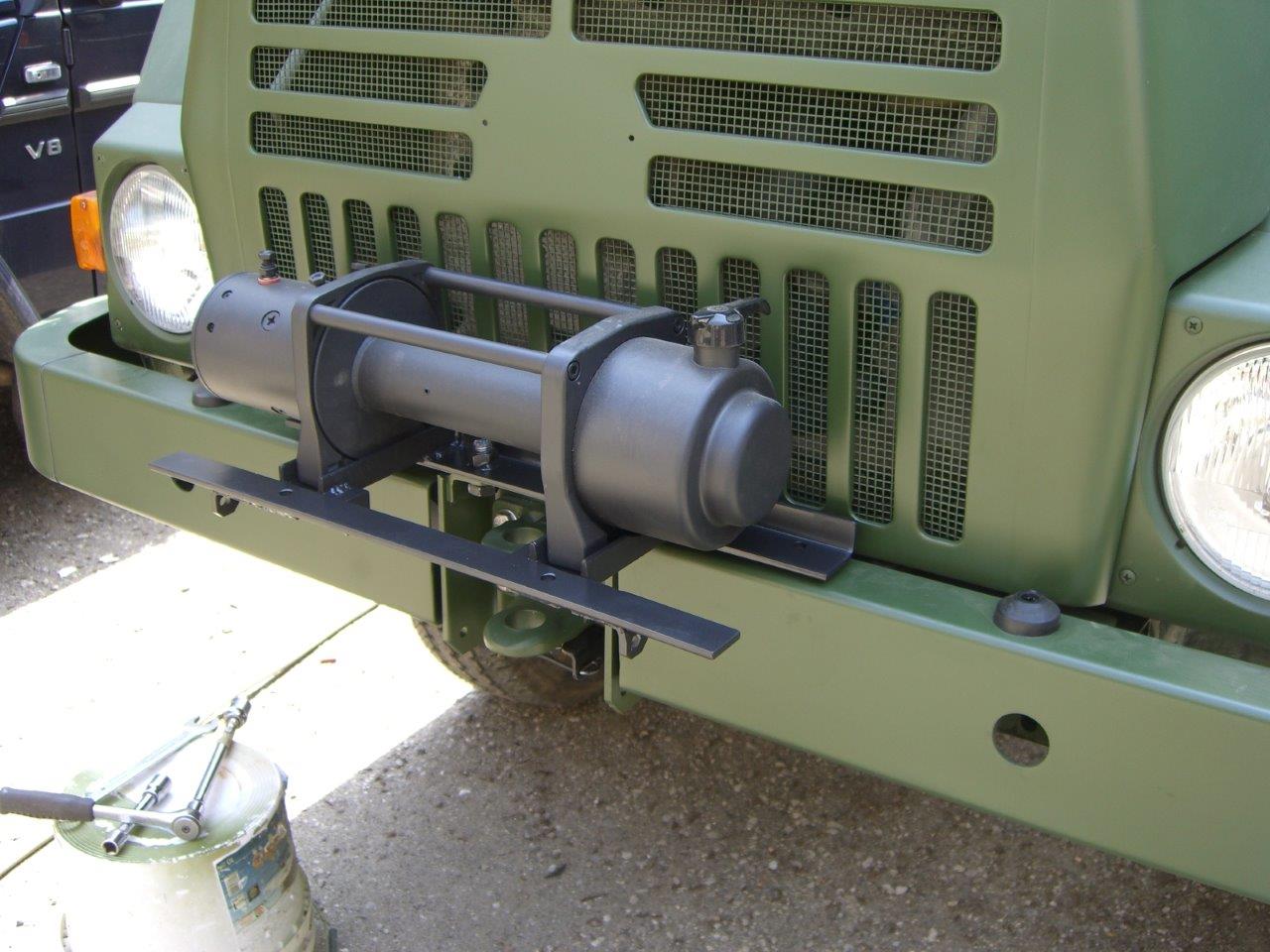

The photo below is what I had made for my 716, patterned off what photos I had of the ATL Pinzes. This wasn't for multiple mounts but shows triangular plates welded to hold the fairing plate to the winch plate. What can't be seen is underneath are 2 larger plates going from the front of the winch mounting plate down the full height of the mounting plate to the truck. That truck is long gone, but I can be fairly positive that the mounting and winch plates and the lower braces were made from 10mm (3/8") material . (For those gas Pinz owners reading this, the front pin on the TD Pinzes are a bolt on assembly that are removable for mounting other attachments, like a winch, see 2nd photo).

Gunipinzmutt. You may want to look at a Sepson mount (if you can find one :roll: ). If I remember correctly, they have a "T" slotted base mount with a plate the winch (or other accessories ) mount onto. A 716K owner in the UK had one that the winch could easily move front to rear. The winch slid down into the mount vertically, hence no sheer pressure . I wouldn't buy one (if they were available) but to copy the T slot idea and make an adapter with the T slot for the 710 and 712 to fit tightly in their front pins and a T slot for each of your TDs
Attachments
.
The Trojan Horse... the 1st Pinz used to covertly carry troops into battle .




ATL Pinzgauer XM 718K TUM(HD) 6x6 FFR (aka The Green Grail)

User avatar
David Dunn
Posts: 2188
Joined: Wed Apr 14, 2004 7:08 pm
Location: Arcadia, CA

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by David Dunn » Fri Dec 28, 2018 9:23 pm

Mike,
I've always like the idea of the Tirfor or griphoist, but decided against one because in my case, a vehicle recovery would end up a vehicle and body recovery… mine, I’d be sure to have a heart attack working it :lol:
.
The Trojan Horse... the 1st Pinz used to covertly carry troops into battle .




ATL Pinzgauer XM 718K TUM(HD) 6x6 FFR (aka The Green Grail)

User avatar
4x4Pinz
United States of America
Posts: 984
Joined: Sat Oct 24, 2009 6:17 pm
Location: arizona

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by 4x4Pinz » Sat Dec 29, 2018 9:14 am

I have always had the opinion that if I could not operate the grip hoist then I had more things to worry about then recovery of my truck or any other vehicle. If things keep up the way they are I will have to get a new one as my large version will wear out. I have a couple of these in different sizes for different applications, no need for a large unit if the medium will do the task. I also have a two hundred for cable for the large unit which had come in handy. And yes you do have to be able to work the grip hoist and it does require some effort depending on how stuck the object is. In one case we pulled a full size sand car out of a large bowl in glamis. That was Little work as we had to go up there steep side of the bowl.

Sent from my E6810 using Tapatalk


gunipinzmutt
Italy
Posts: 60
Joined: Wed Nov 08, 2006 1:40 am
Location: Italy

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by gunipinzmutt » Sat Dec 29, 2018 12:14 pm

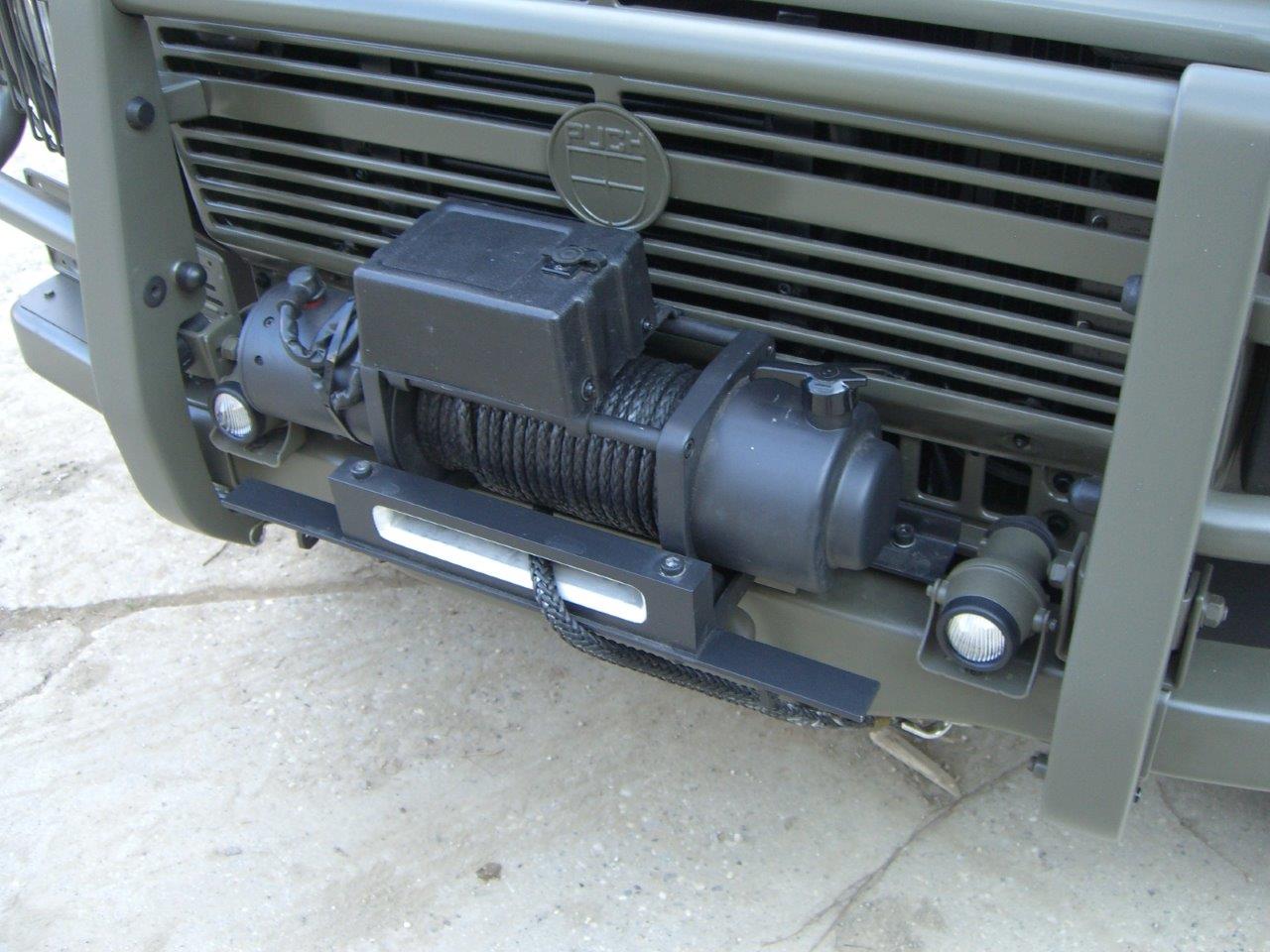

For the G250 I made a slotted base mount where the same cradle slids in, horizontally back to front.
Attachments
CIMG7614 verricello.jpg
CIMG7614 verricello.jpg (150.17 KiB) Viewed 771 times
Pinz: 710 m, 710 ms, 710 k, 712 m fla, 712 k, 716 m, 718 m san, 716 k, 718 rehinbraun
Haflinger: 700, 703
G: 250, 270, 400, 350
Unimog 406
M825, M151 A2, M416
Fiat Panda 141A 4x4
Fresia F18

gunipinzmutt
Italy
Posts: 60
Joined: Wed Nov 08, 2006 1:40 am
Location: Italy

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by gunipinzmutt » Sat Dec 29, 2018 12:31 pm

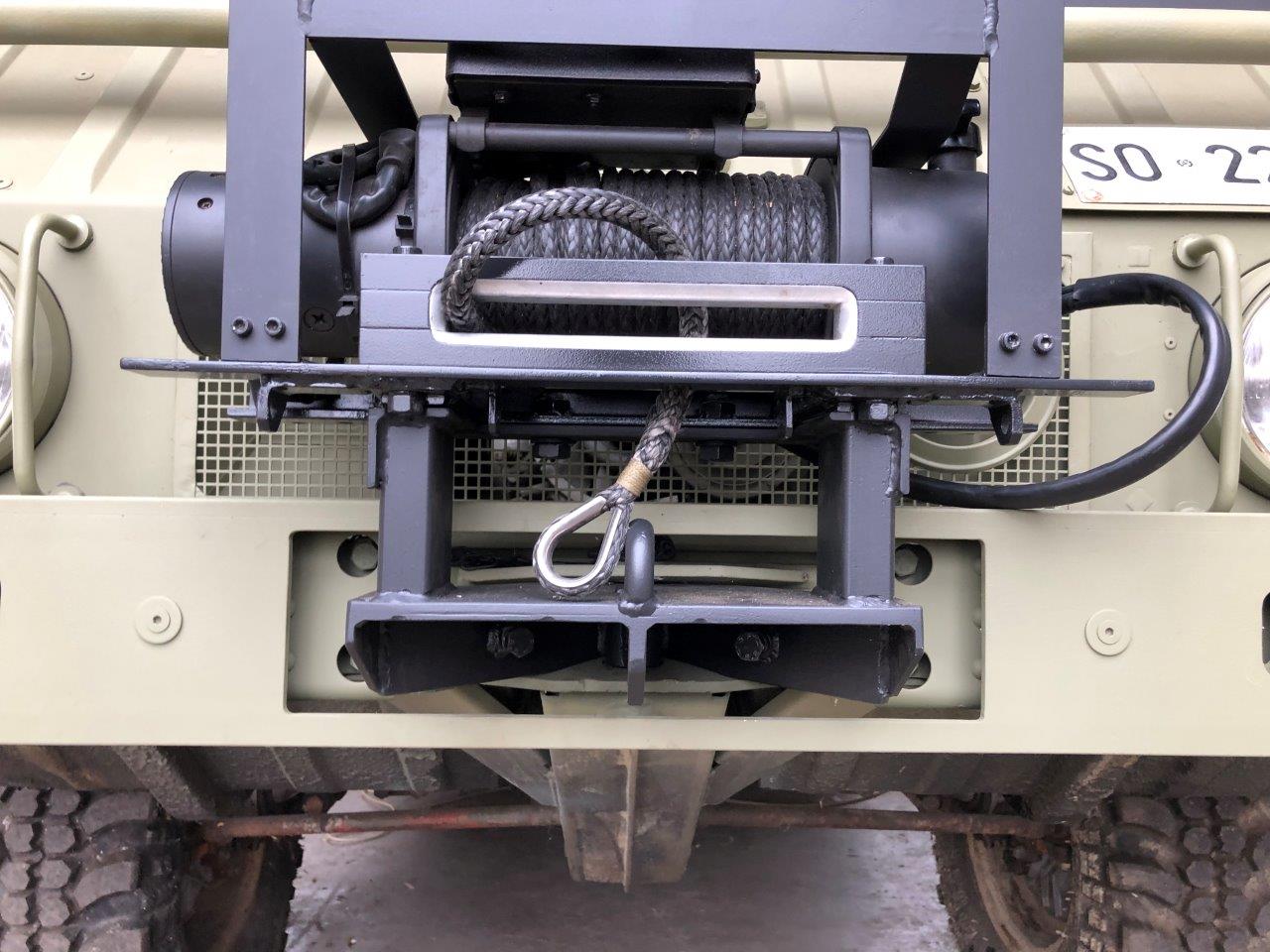

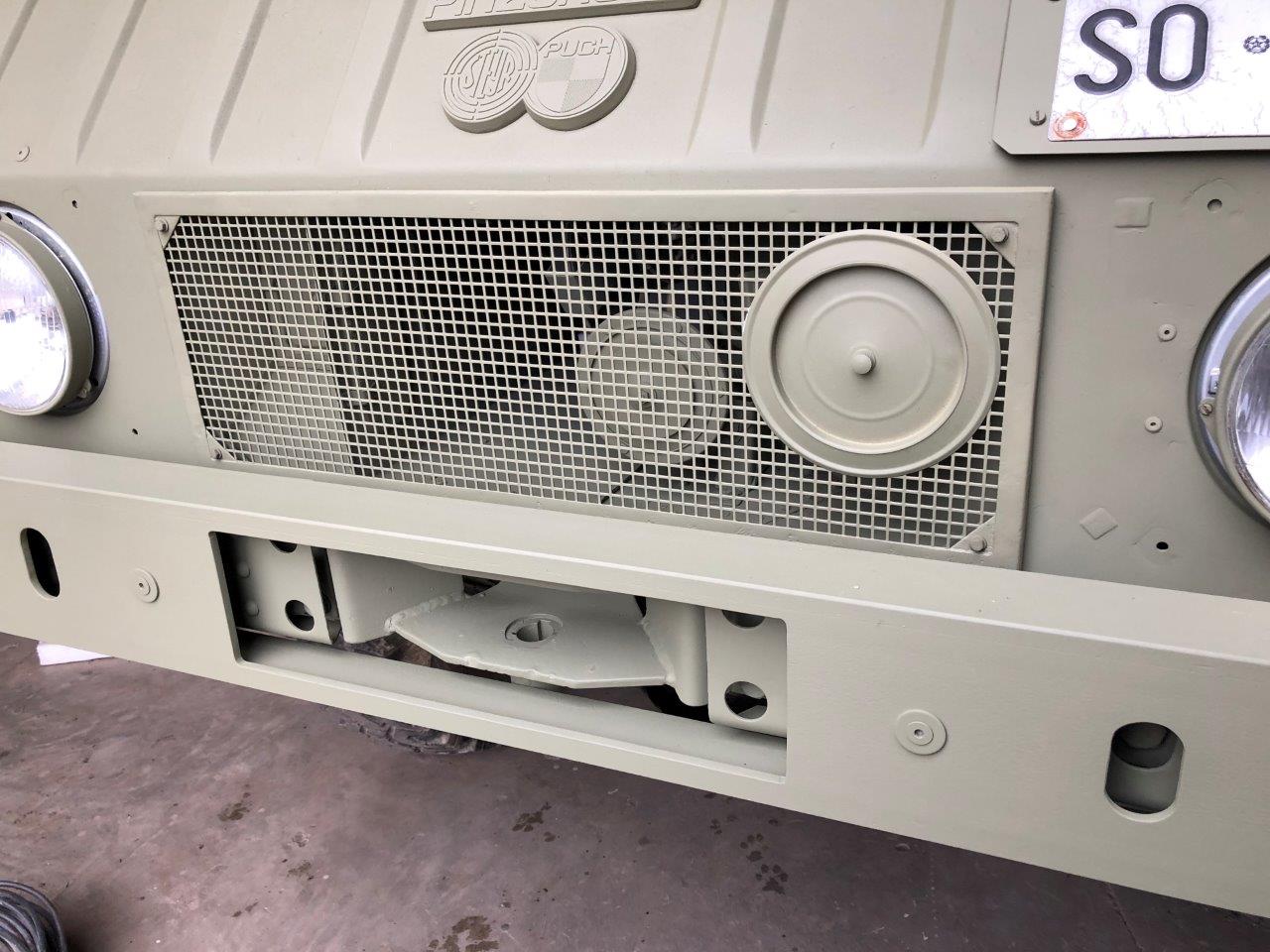

This is the mount for 710 - 712 with original heavy duty bumper.
Attachments
2017-12-02 15.41.12.jpg
2017-12-02 15.41.12.jpg (159.58 KiB) Viewed 770 times
2017-12-02 15.41.03.jpg
2017-12-02 15.41.03.jpg (187.71 KiB) Viewed 770 times
Pinz: 710 m, 710 ms, 710 k, 712 m fla, 712 k, 716 m, 718 m san, 716 k, 718 rehinbraun
Haflinger: 700, 703
G: 250, 270, 400, 350
Unimog 406
M825, M151 A2, M416
Fiat Panda 141A 4x4
Fresia F18

gunipinzmutt
Italy
Posts: 60
Joined: Wed Nov 08, 2006 1:40 am
Location: Italy

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by gunipinzmutt » Sat Dec 29, 2018 6:15 pm

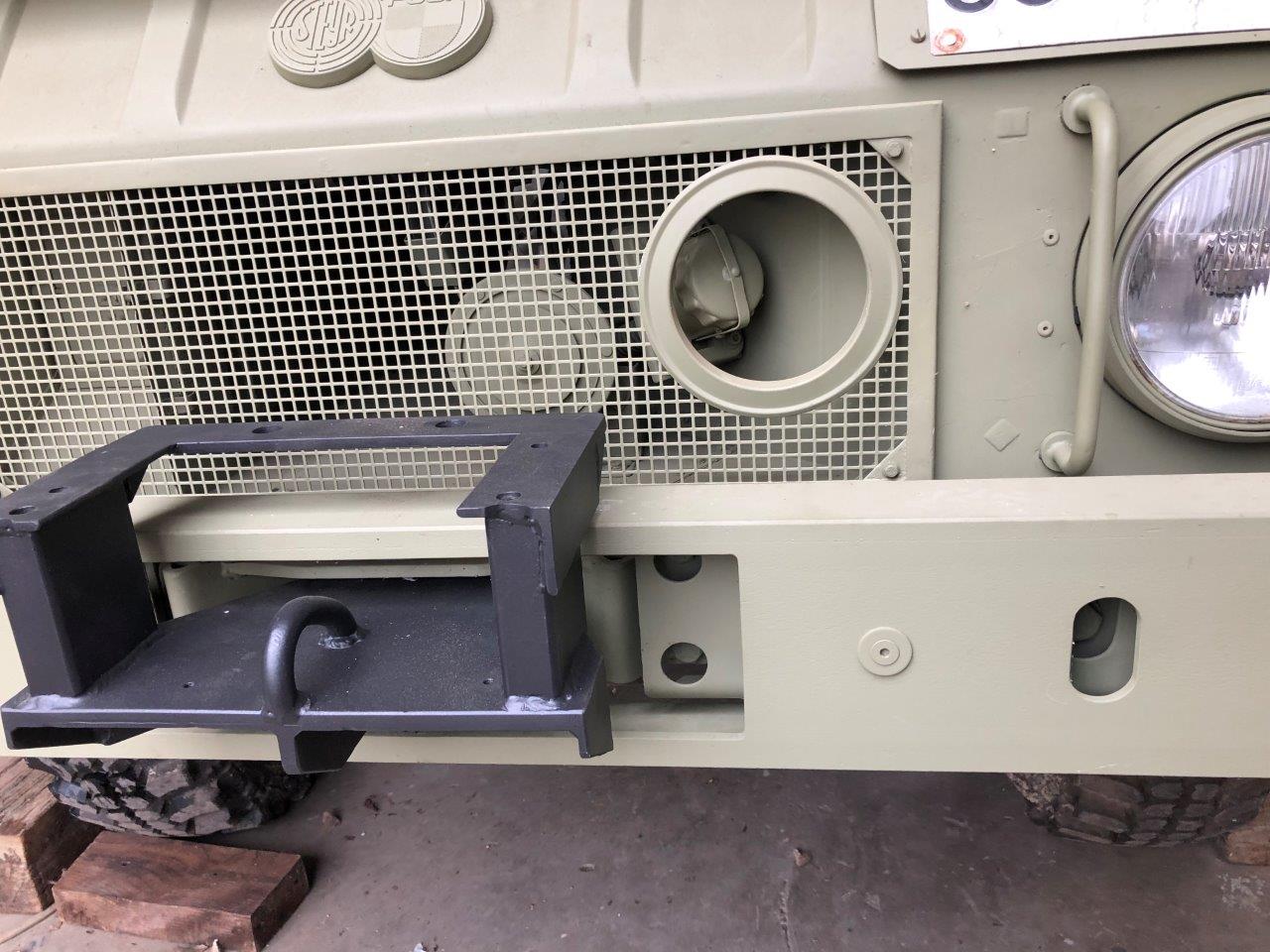

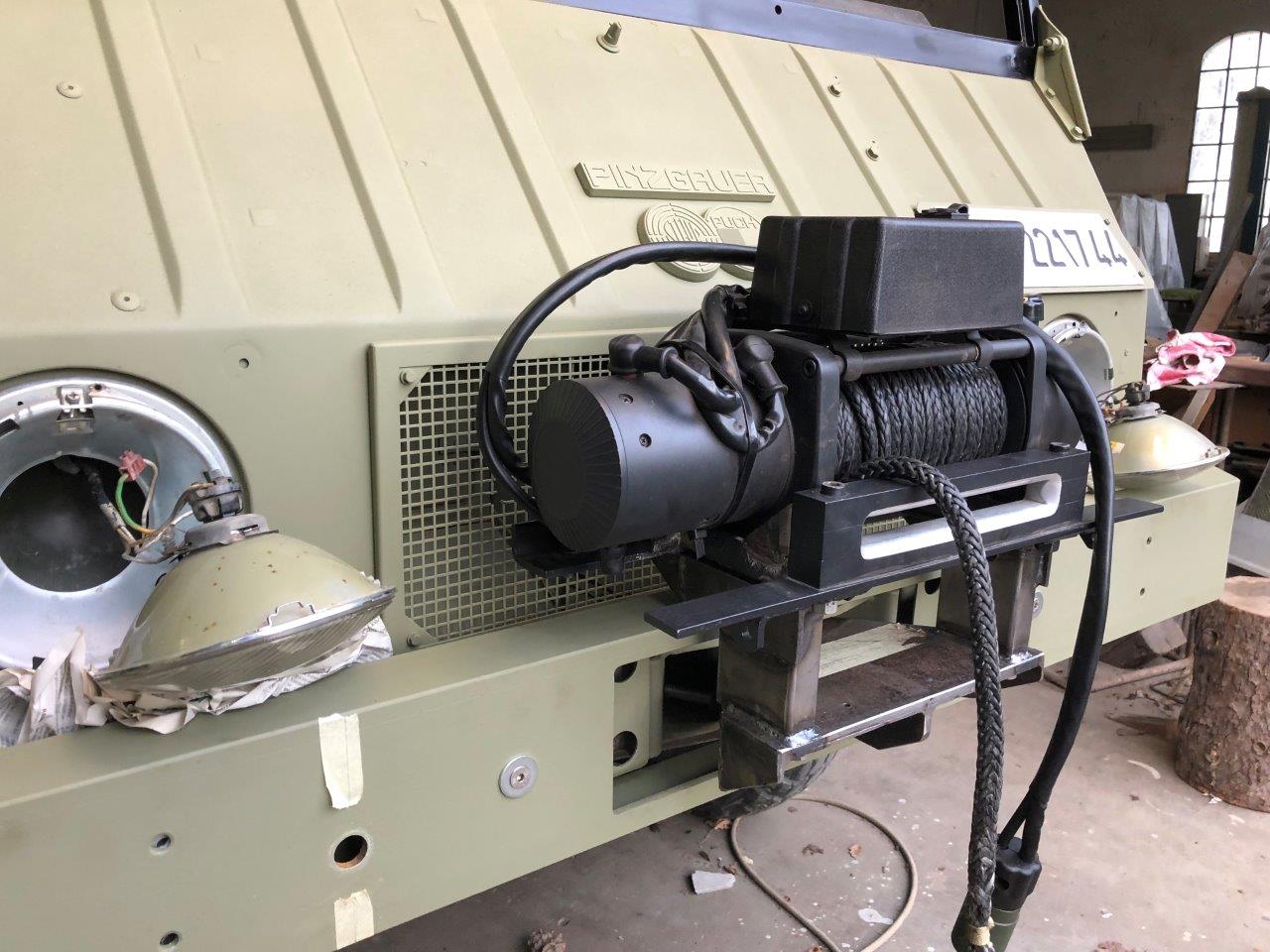

This is the mount on a 710 with an home made extra heavy duty bumper.
Attachments
2017-12-02 15.50.31.jpg
2017-12-02 15.50.31.jpg (162.11 KiB) Viewed 756 times
2017-12-02 15.50.22.jpg
2017-12-02 15.50.22.jpg (163 KiB) Viewed 756 times
Pinz: 710 m, 710 ms, 710 k, 712 m fla, 712 k, 716 m, 718 m san, 716 k, 718 rehinbraun
Haflinger: 700, 703
G: 250, 270, 400, 350
Unimog 406
M825, M151 A2, M416
Fiat Panda 141A 4x4
Fresia F18

gunipinzmutt
Italy
Posts: 60
Joined: Wed Nov 08, 2006 1:40 am
Location: Italy

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by gunipinzmutt » Sun Dec 30, 2018 12:03 pm

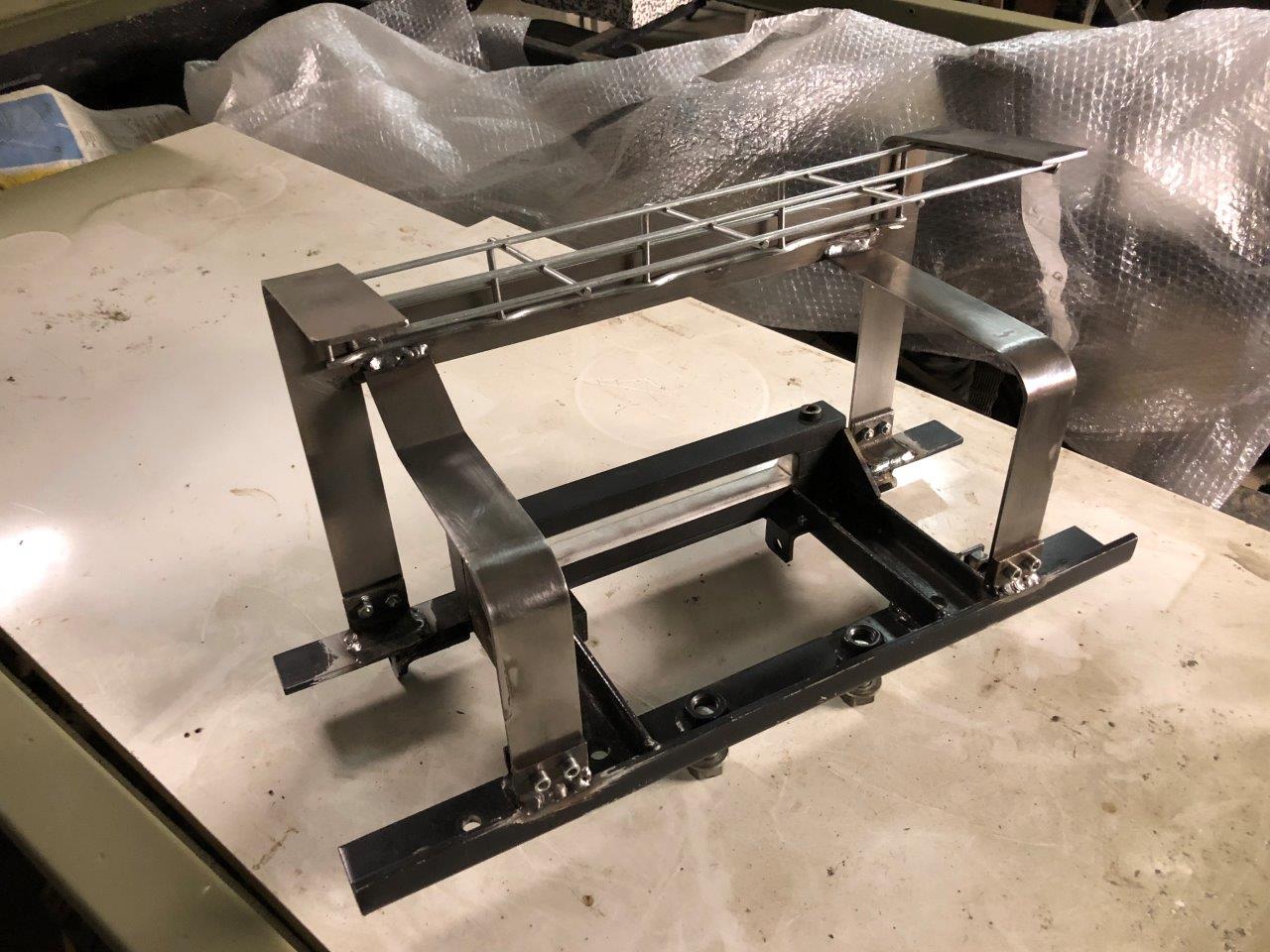

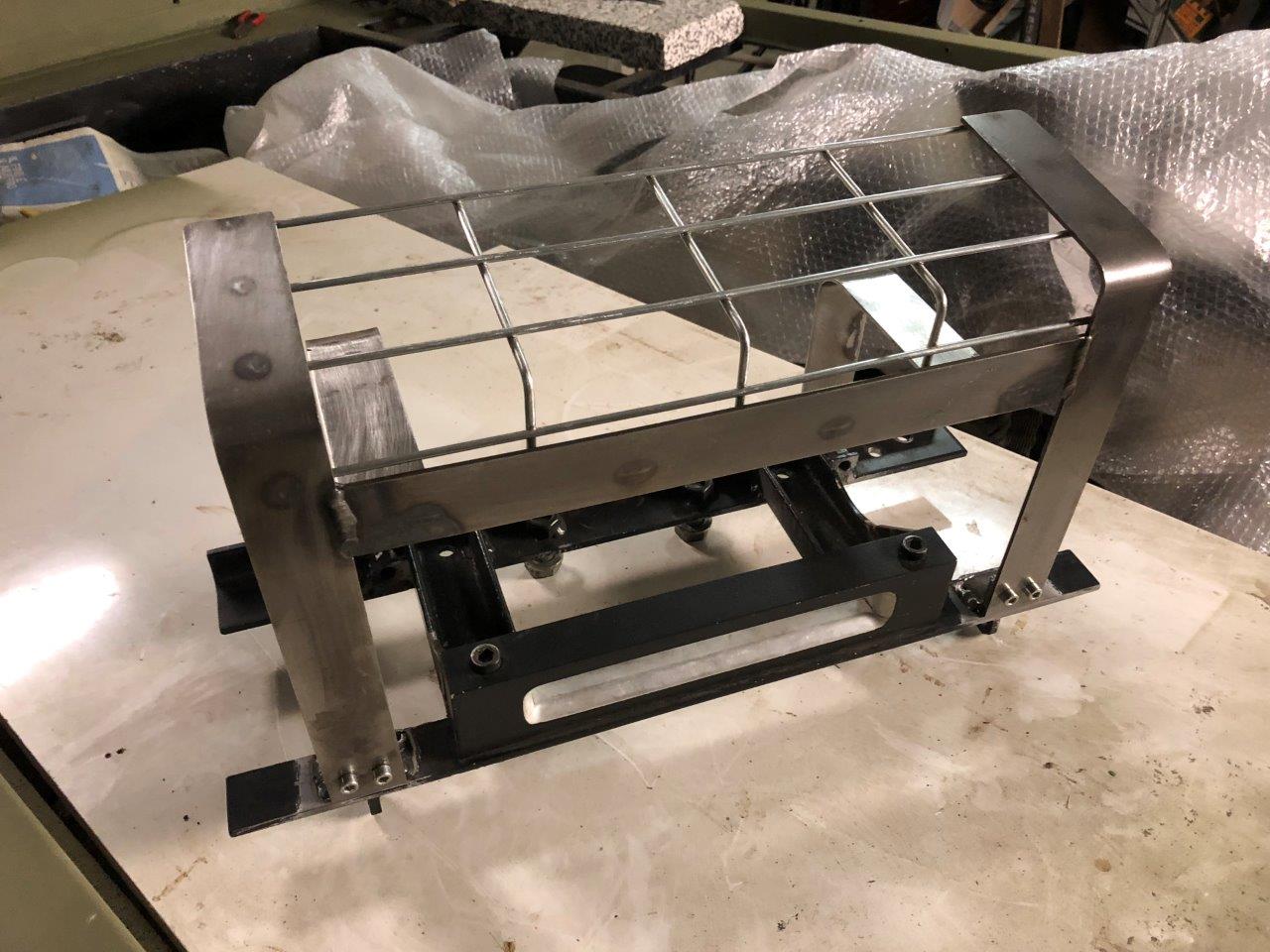

Then I realized that the winch could have been be too exposed to damage in the bush so I equipped the craddle with a protection cage:
Attachments
2017-12-17 18.19.06.jpg
2017-12-17 18.19.06.jpg (169.34 KiB) Viewed 729 times
2017-12-17 18.19.20.jpg
2017-12-17 18.19.20.jpg (162.19 KiB) Viewed 729 times
Pinz: 710 m, 710 ms, 710 k, 712 m fla, 712 k, 716 m, 718 m san, 716 k, 718 rehinbraun
Haflinger: 700, 703
G: 250, 270, 400, 350
Unimog 406
M825, M151 A2, M416
Fiat Panda 141A 4x4
Fresia F18

gunipinzmutt
Italy
Posts: 60
Joined: Wed Nov 08, 2006 1:40 am
Location: Italy

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by gunipinzmutt » Sun Dec 30, 2018 12:47 pm

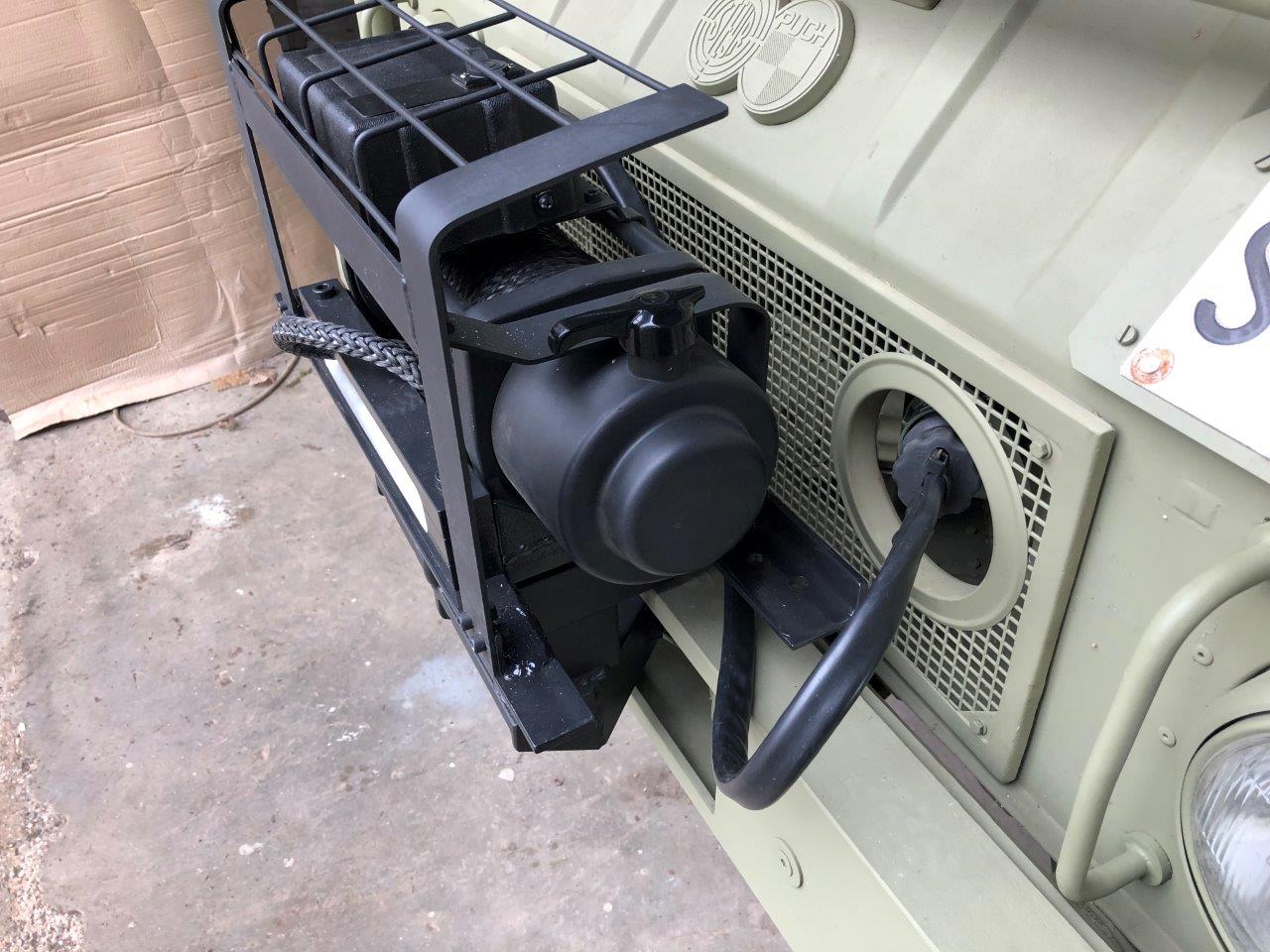

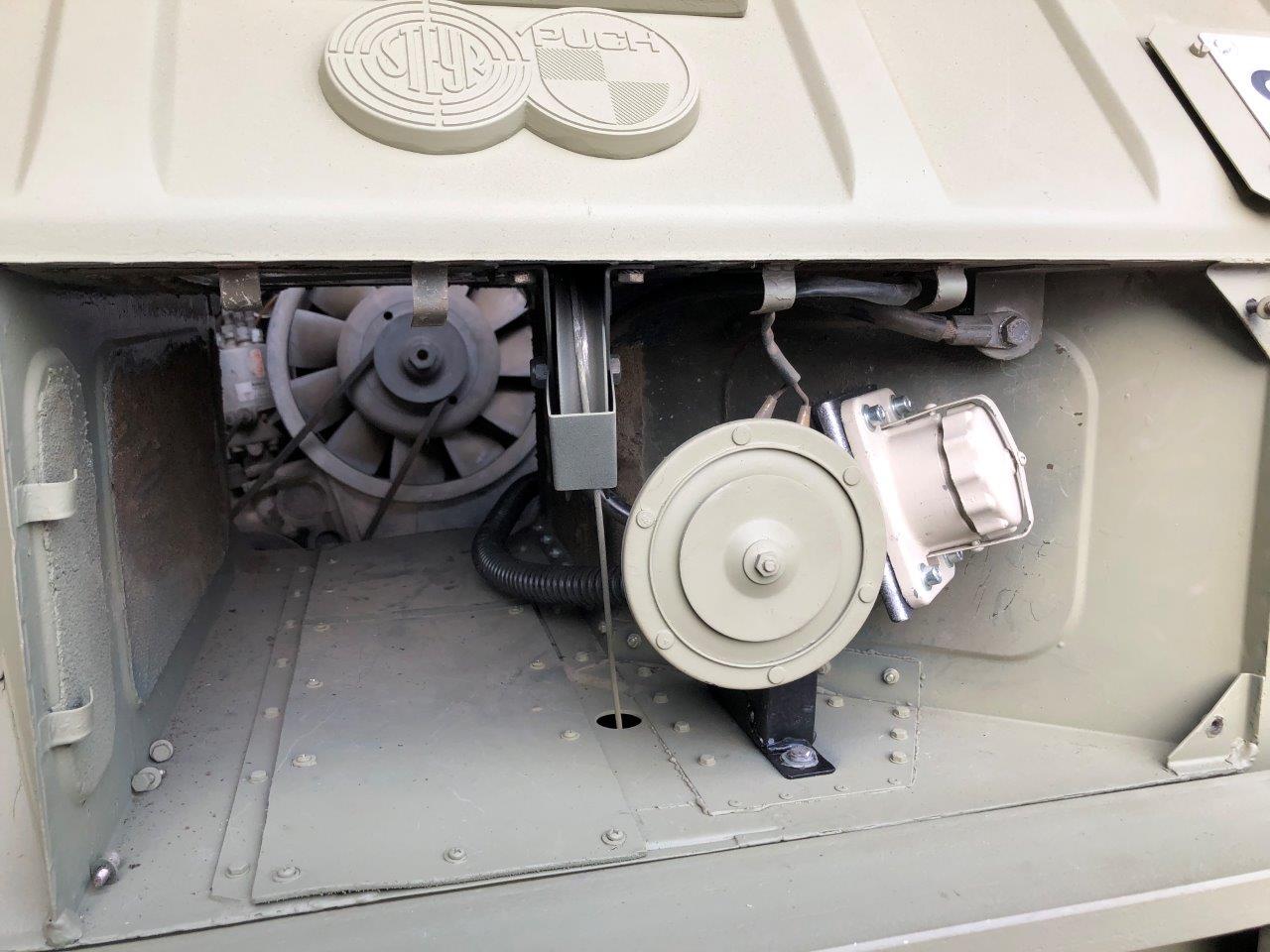

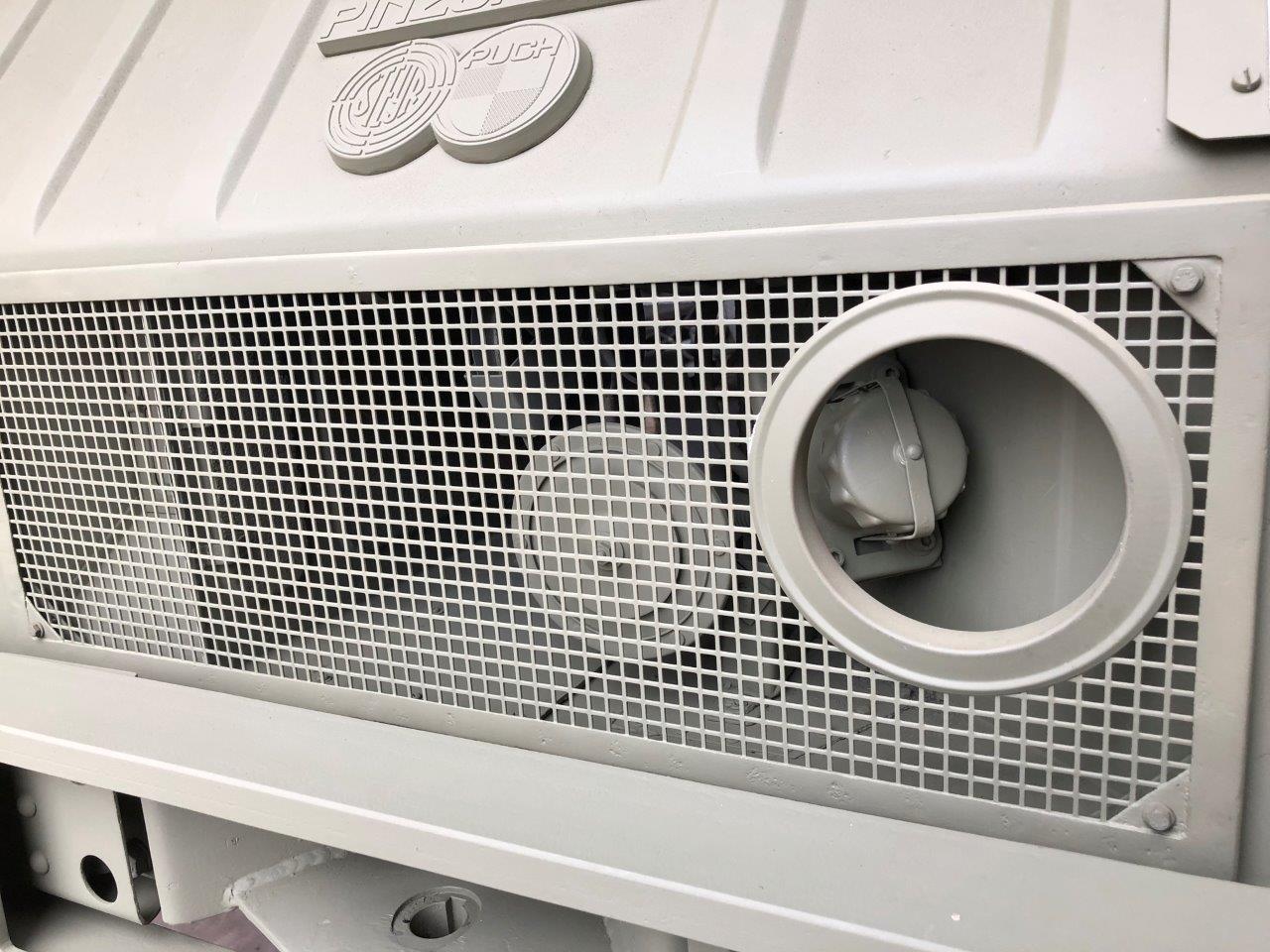

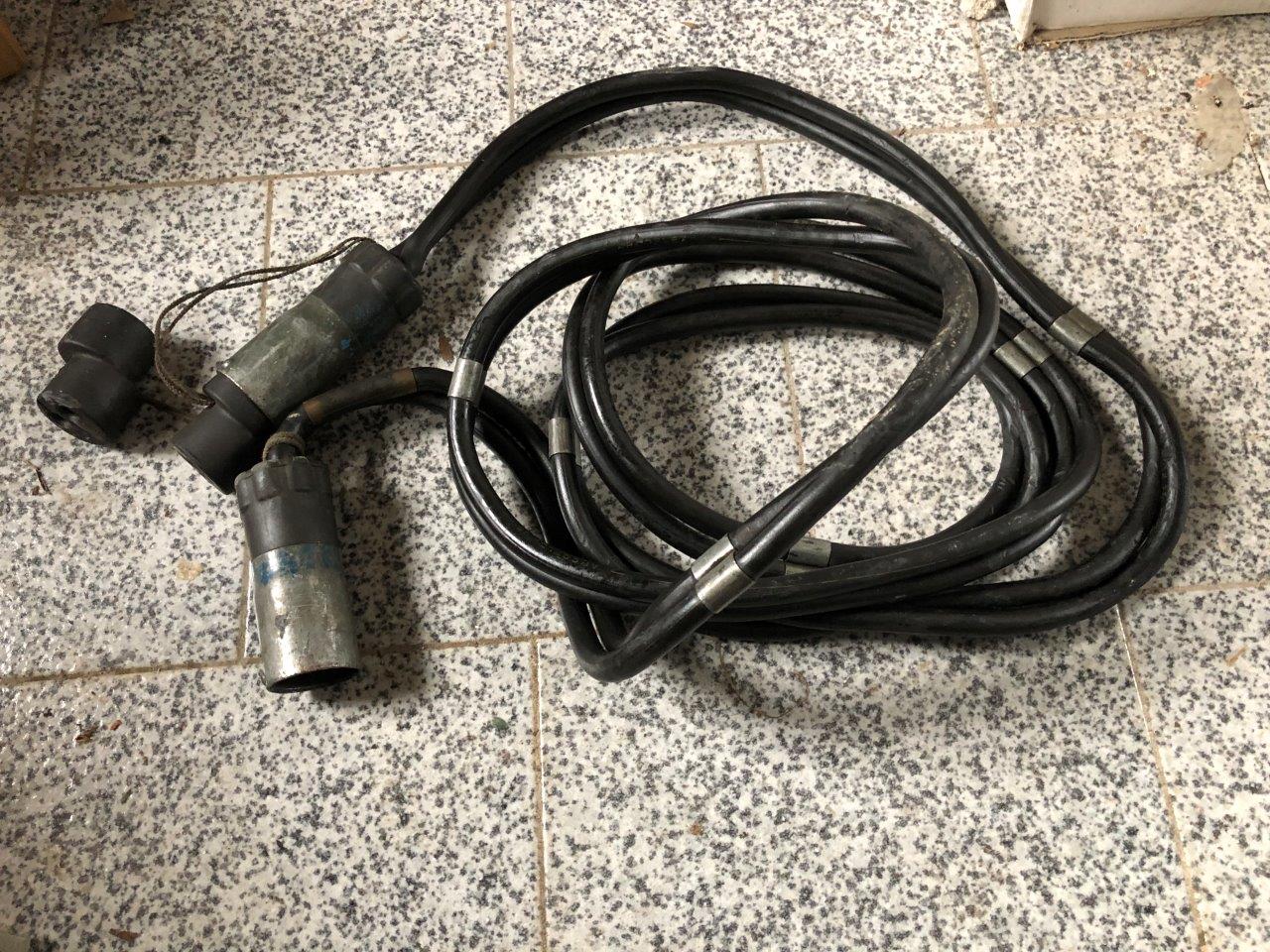

The power supply is by the mean of a Nato (or 2 pin) slave starting cable socket. With a jump start cable you can use the winch separate from the truck; much more efficient and comfortable than a griphoist.
Attachments
2018-01-04 15.52.26.jpg
2018-01-04 15.52.26.jpg (132.72 KiB) Viewed 727 times
2018-02-03 10.36.46.jpg
2018-02-03 10.36.46.jpg (201.43 KiB) Viewed 727 times
2018-02-03 10.37.24.jpg
2018-02-03 10.37.24.jpg (173.94 KiB) Viewed 727 times
2018-12-30 12.23.48.jpg
2018-12-30 12.23.48.jpg (333 KiB) Viewed 727 times
Pinz: 710 m, 710 ms, 710 k, 712 m fla, 712 k, 716 m, 718 m san, 716 k, 718 rehinbraun
Haflinger: 700, 703
G: 250, 270, 400, 350
Unimog 406
M825, M151 A2, M416
Fiat Panda 141A 4x4
Fresia F18

User avatar
TechMOGogy
Canada
Posts: 2802
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by TechMOGogy » Sun Dec 30, 2018 2:42 pm

I like how you modified the horn to get your power connector!
Last edited by TechMOGogy on Thu Jan 03, 2019 9:07 am, edited 1 time in total.
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

gunipinzmutt
Italy
Posts: 60
Joined: Wed Nov 08, 2006 1:40 am
Location: Italy

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by gunipinzmutt » Mon Dec 31, 2018 8:10 am

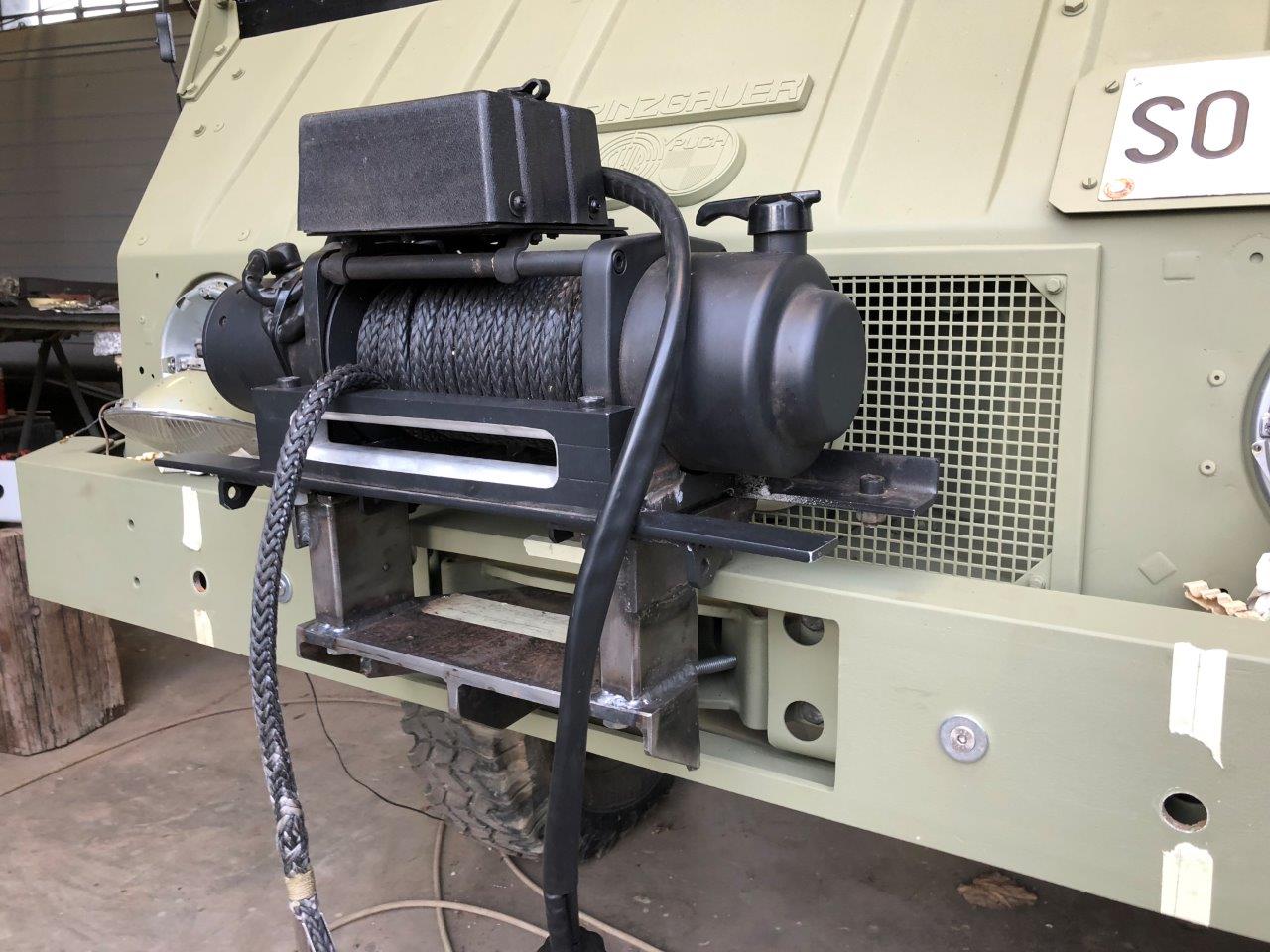

Raised seat allows also a good air flow.
Attachments
2018-12-28 10.23.54.jpg
2018-12-28 10.23.54.jpg (188.51 KiB) Viewed 701 times
2018-12-28 12.11.34.jpg
2018-12-28 12.11.34.jpg (175.84 KiB) Viewed 701 times
2018-12-28 12.12.05.jpg
2018-12-28 12.12.05.jpg (162.04 KiB) Viewed 701 times
Pinz: 710 m, 710 ms, 710 k, 712 m fla, 712 k, 716 m, 718 m san, 716 k, 718 rehinbraun
Haflinger: 700, 703
G: 250, 270, 400, 350
Unimog 406
M825, M151 A2, M416
Fiat Panda 141A 4x4
Fresia F18

pinzi
Belgium
Posts: 134
Joined: Sun Nov 09, 2008 4:23 am
Location: belgium

Re: 1 winch mount for different pinz bumpers and for gas and TD

Post by pinzi » Mon Dec 31, 2018 1:01 pm

It wouldnt use it :?
