Overdrive (again)

Post by bikmakr » Mon Apr 14, 2014 1:49 pm

I'm fitting up a Laycock Type J overdrive to my 712M. Anyone have experience with using two Lobro CV's and a spline shaft for the short drive shaft? I've got about 5" total.

Thanks

User avatar
Jim LaGuardia
Posts: 1679
Joined: Wed Apr 14, 2004 3:42 pm
Location: San Bernardino Ca
Contact:

Re: Overdrive (again)

Post by Jim LaGuardia » Mon Apr 14, 2014 5:39 pm

Good luck, I hope you are using a scatter shield, not the strongest type of OD by any means. As for the shaft, remember the engine and trans are on 3 mounts, not 4. The shaft must have sufficient play, but you may be able to mod a VW 960 CV joint,boots and shaft to fit, but it will be hard to balance.
Cheers, Jim LaGuardia
http://smg.photobucket.com/albums/v510/Goatwerks/
"Arch Magus of Machines."

bikmakr
United States of America
Posts: 99
Joined: Thu Mar 27, 2014 1:18 pm
Location: Livermore, Ca. Minden, NV
Contact:

Re: Overdrive (again)

Post by bikmakr » Mon Apr 14, 2014 7:42 pm

Jim,

Thanks for the heads-up. This particular OD was built up with a GV sump and some beefed up innards. The mount to the tranny is sound.

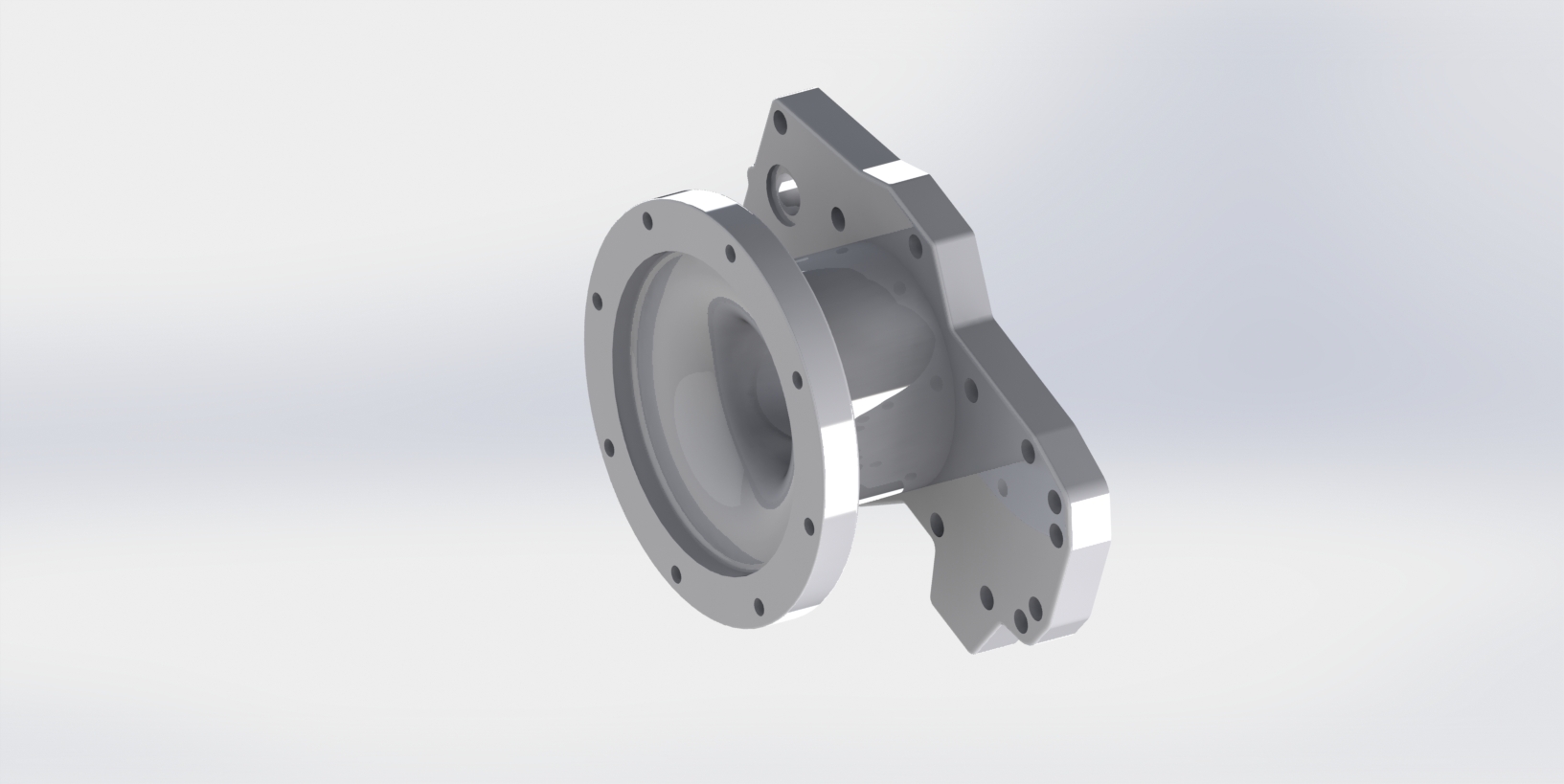

See below rendering.
Attachments
Laycock adaptor.JPG
Laycock adaptor.JPG (359.3 KiB) Viewed 5617 times

bikmakr
United States of America
Posts: 99
Joined: Thu Mar 27, 2014 1:18 pm
Location: Livermore, Ca. Minden, NV
Contact:

Re: Overdrive (again)

Post by bikmakr » Sun Jun 08, 2014 10:16 pm

Finally have the OD hooked up and functioning. Boy, its nice! 56mph at 2950 rpm. I still have power to accelerate. I'll post a complete write-up soon after some more testing.

EmbarkChief
United States of America
Posts: 242
Joined: Wed Aug 28, 2013 12:47 pm
Location: Houston, Texas

Re: Overdrive (again)

Post by EmbarkChief » Sun Jun 08, 2014 10:34 pm

Looking forward to it.
-1972 710M

Pinz710m2

Re: Overdrive (again)

Post by Pinz710m2 » Mon Jun 09, 2014 12:43 pm

That sounds really interesting. Can you post what it took to do it,
and how it's working?

bikmakr
United States of America
Posts: 99
Joined: Thu Mar 27, 2014 1:18 pm
Location: Livermore, Ca. Minden, NV
Contact:

Re: Overdrive (again)

Post by bikmakr » Sat Jun 21, 2014 8:39 pm

OK, just got back from a 100+ mile test drive with the OD unit. Temperature was 85 degrees plus, climbed over 1000' pass and on the way back I had some stop and go traffic.

All I can say is, I would never drive the Pinz again without it!

On the highway, I can cruise at 56mph at 3K rpm........all day long.....as long as it's relatively flat. I just have enough power to rise above the
overpasses without turning it off. I have a stock motor (unknown milage) on a 712 with 265/75/17 tires. This really makes the Pinz viable for long distance camping trips for us. We have to travel 100 miles of dead flat before we get to the foothills of the Sierra, so this makes the Pinz the perfect camper for us.
I can accelerate with the OD on up to 67mph before I get some minor harmonic vibrations in the vehicle. I'm not sure where they originated from, but that's plenty fast for me anyway. Honestly, this is the biggest improvement, in my opinion, one can make to the Pinz if overall utility is paramount.
I noticed in doing some research on this forum, that the same concept in Europe was being tested using the same J-type Laycock OD unit in a divorced fashion. There is no room to do this that way. By replacing the transmission end cover with the adapter itself, I had enough room for the dual Lobro joint "drive-shaft".

I just have to grin every time I hit that switch and the rpm's drop about 800 and the Pinz drops into purr mode !!

captxmas
Posts: 73
Joined: Fri Jun 13, 2008 1:20 am
Location: San Francisco Bay Area

Re: Overdrive (again)

Post by captxmas » Sun Jun 22, 2014 5:22 pm

So very jealous!

I'm local to you and wondering what it would take to do the same to mine. 710K in Fremont area. Are you a shop? Know one that could do the work? I can do many things but this seems advanced for me.
Capt Xmas

bikmakr
United States of America
Posts: 99
Joined: Thu Mar 27, 2014 1:18 pm
Location: Livermore, Ca. Minden, NV
Contact:

Re: Overdrive (again)

Post by bikmakr » Thu Jun 26, 2014 11:51 pm

PM me and we can discuss. I have been extremely busy so please be patient. Thanks

User avatar
mopar
United States of America
Posts: 439
Joined: Mon Jul 05, 2010 9:15 pm
Location: Metrowest MA

Re: Overdrive (again)

Post by mopar » Fri Jun 27, 2014 4:08 am

looks pretty cool. How much did it run you to do this?

1974 710M AKA the project truck
1987 718M Now Sold
1975 Volvo TGB1111 Now Sold
1973 Pinzgauer 712M x2 Now Sold
1963 404S Now Sold

bikmakr
United States of America
Posts: 99
Joined: Thu Mar 27, 2014 1:18 pm
Location: Livermore, Ca. Minden, NV
Contact:

Re: Overdrive (again)

Post by bikmakr » Sun Jun 29, 2014 9:15 pm

The OD units can be had for $500-$1000, rebuilt. The Lobro joints and spline was about $500 total. I made the adapter myself, with about 100 hrs of development and research. ( I like the challenge of doing things people tell you can't be done) If there is interest, I can can make small runs of 5-10 pieces or I can post to Solidworks files and any competent machine shop can CNC the adapter. I'll post the write-up from another computer soon.

User avatar
cowetadirtfarmer
Hungary
Posts: 20
Joined: Mon Jul 11, 2011 7:51 pm
Location: Coweta County,Ga

Re: Overdrive (again)

Post by cowetadirtfarmer » Mon Jun 30, 2014 7:00 am

I would be interested in the adapter if you would make it available for purchase.

User avatar
Profpinz
Posts: 1056
Joined: Sat Apr 17, 2004 7:08 pm
Location: Melbourne, AUSTRALIA
Contact:

Re: Overdrive (again)

Post by Profpinz » Mon Jun 30, 2014 7:36 am

I like the challenge of doing things people tell you can't be done
I understand where your coming from! :D 8)

Nice job on the overdrive, it looks very professional!
Peter

1974, 712 6X6 Pinzgauer
1983, 710-1.6 4X4 Pinzgauer
1997, 718 6X6 Pinzgauer (in pieces)
1971, 700 Haflinger
1974, 703 LWB Haflinger
2001, Range Rover

http://www.ozpinz.com

User avatar
Jimm391730
United States of America
Posts: 1456
Joined: Wed Apr 14, 2004 10:58 pm
Location: Idyllwild, CA

Re: Overdrive (again)

Post by Jimm391730 » Tue Jul 01, 2014 10:18 pm

What is the ratio of the overdrive? Is it small enough to "split gears"?
Jim M.
712W and 710M

bikmakr
United States of America
Posts: 99
Joined: Thu Mar 27, 2014 1:18 pm
Location: Livermore, Ca. Minden, NV
Contact:

Re: Overdrive (again)

Post by bikmakr » Tue Jul 01, 2014 10:41 pm

Jim,

You can split gears providing you keep the rpm's high enough to maintain the hydraulic pressure to keep the unit engaged. I'm, playing with that now; determining minimum rpm's vs. gears vs. loads. It doesn't seem to be consistent. When I get a better switch in place (on the stick-shift), I'll post the results.
I also switched out the ATF for gear oil as it was shifting into OD too quickly with a jolt. I now get a smoother shift in and out of OD.

Question....I'm trying to upload a PDF or Word file and it won't allow it. What type of file is allowed?
