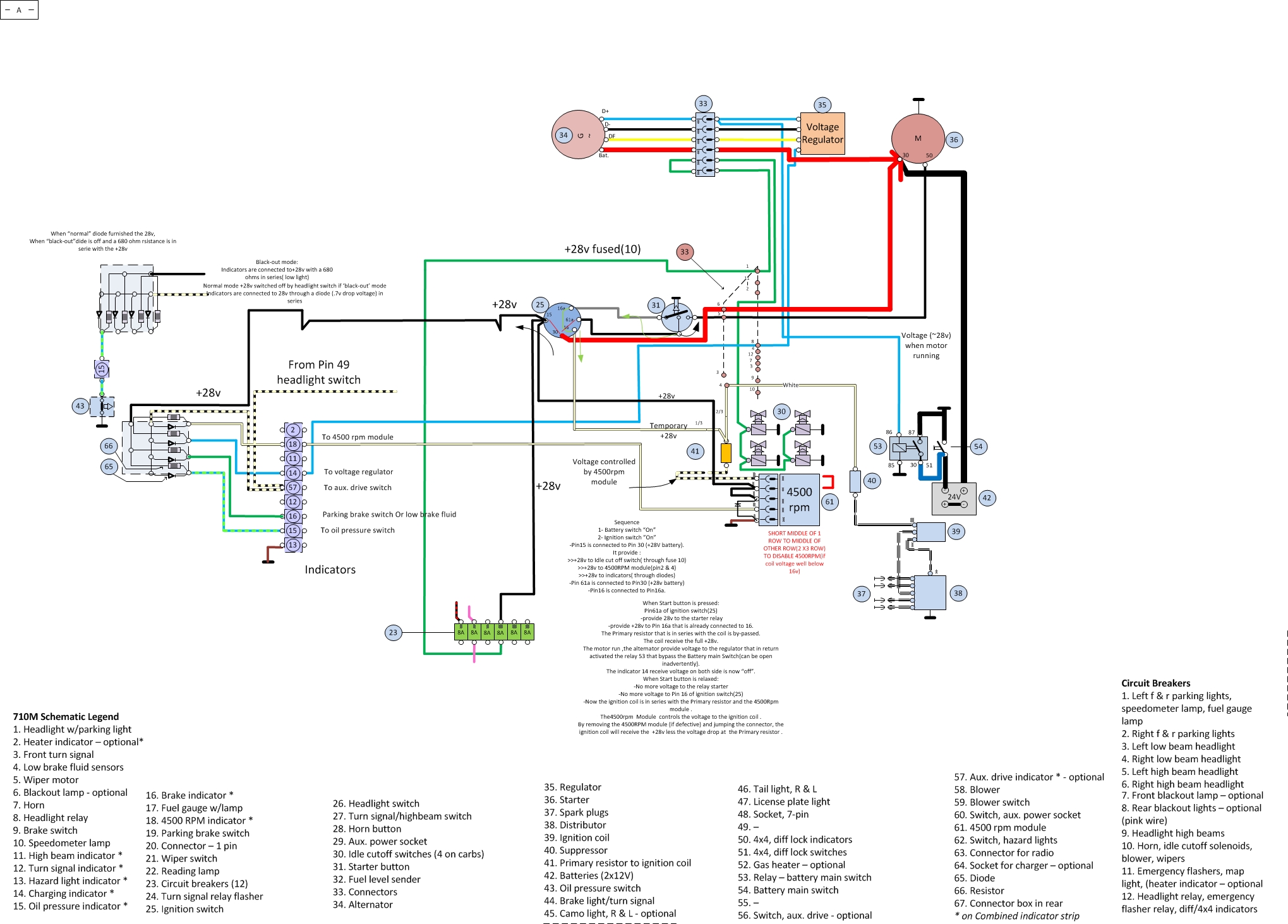

710 - 712 wiring schematics PDF and JPG.

Post by VinceAtReal4x4s » Mon Jun 06, 2016 3:04 am

PDF download is more ideal for printing.
pinz color wiring.pdf
(355.73 KiB) Downloaded 186 times
pinz starting circuit schematic.pdf
(496.13 KiB) Downloaded 153 times
pinz color wiring-page-001(1).jpg
pinz color wiring-page-001(1).jpg (797.5 KiB) Viewed 1367 times
pinz schematics_a3_starter_jpg.jpg
pinz schematics_a3_starter_jpg.jpg (811.32 KiB) Viewed 1367 times
