Idle Mixture Screws - Which Style Do You Have?

Post by ExpeditionImports » Tue Jul 21, 2015 12:21 pm

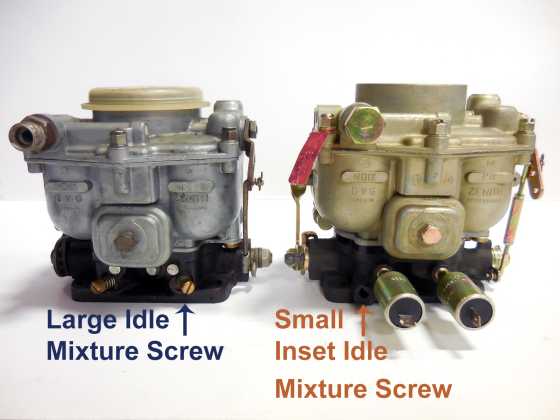

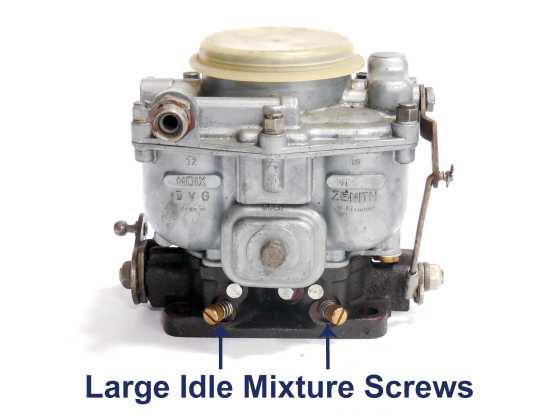

One of the Most Common Questions we get when people are ordering carb kits. Here are some pictures to help you determine.
Attachments
Expedition Imports Corporation
Vallejo, California
www.expedition-imports.com
"You didn't buy a Chevy..." "Hows that Amazon tech support working out...."

stiffler4444
Canada
Posts: 776
Joined: Mon Mar 15, 2010 1:46 pm
Location: Crystal Beach ON CAN

Re: Idle Mixture Screws - Which Style Do You Have?

Post by stiffler4444 » Tue Jul 21, 2015 1:52 pm

thanks, helpful visual!
1972 710m

User avatar
waterdog
Paraguay
Posts: 251
Joined: Tue Jul 05, 2011 7:35 pm
Location: Paraguay

Re: Idle Mixture Screws - Which Style Do You Have?

Post by waterdog » Tue Jul 21, 2015 6:22 pm

where are the solenoids on the large idle screws carb ???? same spot????
1985 710MS
1985 712MK
1988 PAJERO CAMEL SPECIAL 042/150

User avatar
Haf-e
United States of America
Posts: 822
Joined: Thu Oct 06, 2011 5:25 pm
Location: Mount Vernon WA USA

Re: Idle Mixture Screws - Which Style Do You Have?

Post by Haf-e » Tue Jul 21, 2015 6:23 pm

Same spots...
Haf-e

1971 Pinzgauer 710M

Disc Brake Conversion Kits for 710 and 712 Pinzgauers
www.klugewerks.com

User avatar
edzz
United States of America
Posts: 1306
Joined: Tue Aug 11, 2009 12:13 am
Location: Coeur d'Alene, ID

Re: Idle Mixture Screws - Which Style Do You Have?

Post by edzz » Tue Jul 21, 2015 7:13 pm

waterdog wrote:where are the solenoids on the large idle screws carb ???? same spot????
I’d guess the large screw carb is not setup as a Pinz carb, as the accelerator pump linkage and fuel inlet are also different. My guess is that Scott was only interested in answering the common question of small vs large screw. I’d also guess is that the one with the fuel solenoids is for a Pinz and the other is for a Unimog. Am I close?
Cum catapultae proscriptae erunt tum soli proscript catapultas habebunt.
