Electrical Schematics/manual scans

Post by VinceAtReal4x4s » Tue Jan 15, 2019 2:15 am

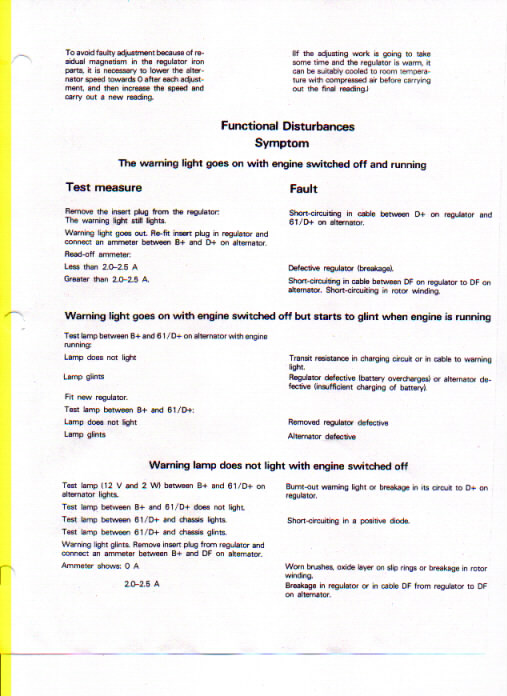

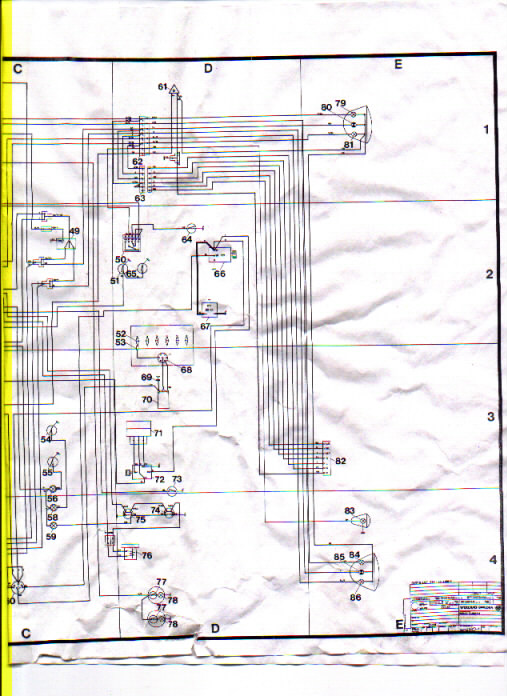

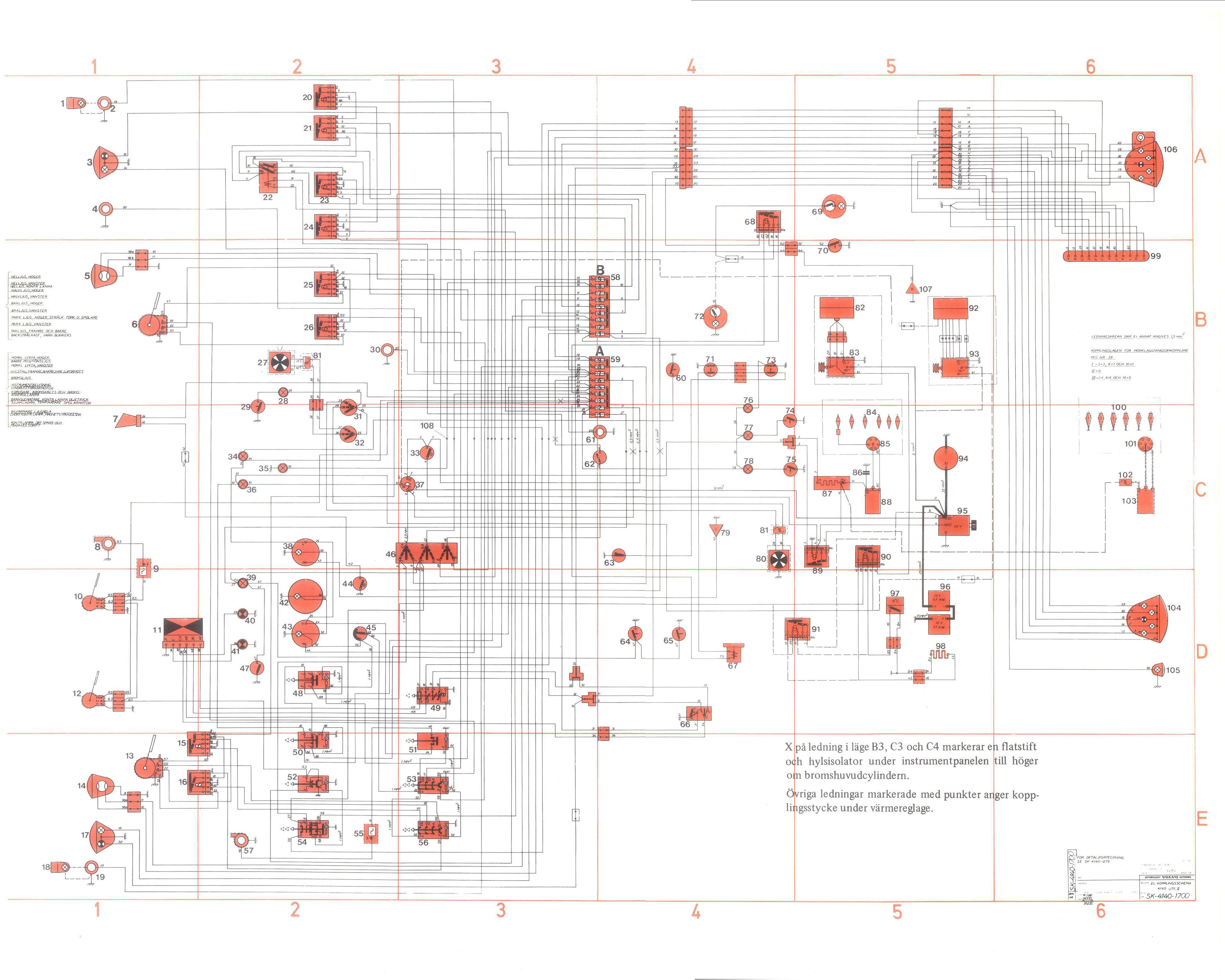

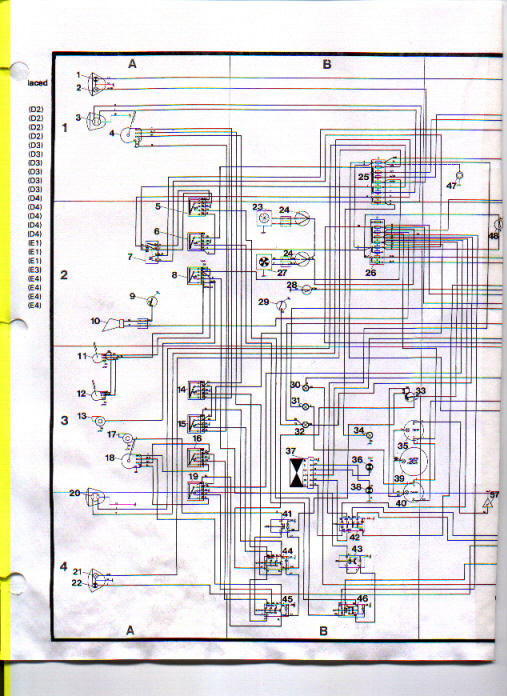

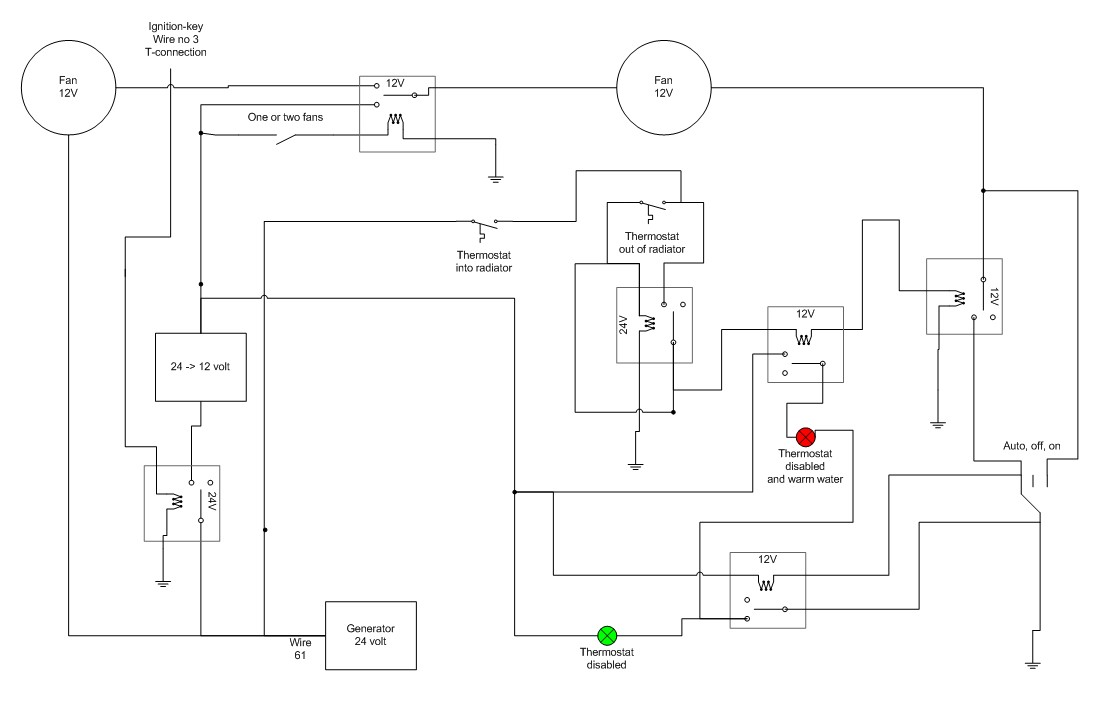

I'm going to close up the old Yahoo Volvo C30- group (started in 2003) so I'm taking files that were posted there and putting them here. I can add credits if someone knows who did them.

Right click on the pic and click "view image" to see full size or to copy and save.
