Rear drive failure...?

Mechanical issues? Check here.

Moderator: TechMOGogy

Post Reply
OhioPinz
Posts: 160
Joined: Fri May 13, 2005 9:41 am
Location: Middletown, Ohio

Rear drive failure...?

Post by OhioPinz » Sun Jun 07, 2015 7:45 pm

I was driving my 71 Pathfinder today, cruising along in 5th, when it suddenly lost drive to the rear wheels. No sound a all, no pop or zing or buzz, nothing. As if it slipped out of gear. Coming to a stop, I discovered all gears made no difference. Clutch is fine. HOWEVER, front wheel drive (4x4) still works fine. No grinding or and noises at all. So, suggestions where to start? Thanks in advance.

User avatar
TechMOGogy
Canada
Posts: 2798
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: Rear drive failure...?

Post by TechMOGogy » Sun Jun 07, 2015 9:08 pm

Did you check the drive selector rod to make sure all is intact?
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

Heinkeljb
Great Britain
Posts: 354
Joined: Wed Feb 27, 2013 1:09 pm
Location: Lewes,Southern England

Re: Rear drive failure...?

Post by Heinkeljb » Mon Jun 08, 2015 1:32 am

First bit of investigation would be to jack the back end up and put it on axle stands. Then turn each rear wheel in turn.

Does anything feel wrong? It is possible that when you turn one side that the other side turns as well, but in the opposite direction - This is normal!

Put it in a gear and then turn the rear wheels again (If you can't turn the wheels, you could try taking out the spark plugs to reduce the compression resistance) - Do both wheels turn? Do this through all the gears.

If the wheels do not turn together, then I'm afraid it time to open up the gearbox / Diff to find out which bit has broken. Does sound like either a gear has snapped in two or a nut has fallen off.

I would be inclined just to take the rear drive shafts off the diff casing as the fact you have front wheel drive suggests the gearbox is actually working but that the rear diff is not.

John

User avatar
Jim LaGuardia
Posts: 1679
Joined: Wed Apr 14, 2004 3:42 pm
Location: San Bernardino Ca
Contact:

Re: Rear drive failure...?

Post by Jim LaGuardia » Mon Jun 08, 2015 1:25 pm

Broken axle or spider gear in diff.
Put it in gear, raise it up lock the diff. The wheel that spins has the fault(most likely a sheared axle shaft).
Cheers, Jim LaGuardia
http://smg.photobucket.com/albums/v510/Goatwerks/
"Arch Magus of Machines."

OhioPinz
Posts: 160
Joined: Fri May 13, 2005 9:41 am
Location: Middletown, Ohio

Re: Rear drive failure...?

Post by OhioPinz » Fri Jun 12, 2015 8:53 pm

I was finally able to check out the Pathfinder today using the suggestions. The results are as follow, but I have yet to disassemble anything yet:

The failure appears to be directly in the left rear wheel, possibly in the portal drive itself.

1.Rear drive with locked diff does indeed drive the right wheel only (I was not fully engaging the locking lever on earlier attempt.)
2. Left rear spins freely, in fact so freely, it clearly is not even turning the driveshaft. It spins smoothly with no noise as all. No gear noise as with the rest of the wheels, and no adverse sounds either such as crunching.
3. Front works as normal.

So, I intend to disassemble the left rear portal. All I have is a parts book, so any special tools needed?

Any suggestions on what might have failed? The failure occurred just driving along on the street and there was no sensation or sound, it just lost drive.

Heinkeljb
Great Britain
Posts: 354
Joined: Wed Feb 27, 2013 1:09 pm
Location: Lewes,Southern England

Re: Rear drive failure...?

Post by Heinkeljb » Sat Jun 13, 2015 2:28 am

No special tools required!

Obviously, rear wheel off.
Brake drum off.
Split brake line either at the wheel cylinder or at the flexible hose joint.
Drain the oil from the hub.
Remove brake shoes - only because it make it easier to get he hand brake cable off. You could undo the bolt that hods the handbrake cable arm on the shaft and take the arm off to be able to disconnect the handbrake cable if you want.
Undo the four nuts holding the square plate on the back of the hub - controls the bearing preload using washers so make a careful note of what you take out and in which order!
Undo the nut holding the wheel hub - you can put something like a tyre leaver between two wheel studs in order to provide a locking mechanism to allow you to undo the nut on the back.
Undo the nuts holding the two halves of the portal casing together.
Tap the casing "gently" to break the gasket seal and remove the outer half of the portal casing.
You should now be able to see if anything is amiss with in the portal casing.

One way to take the nut off the drive shaft is to wrap some cloth around the teeth of the small cog and then to use a large pair of plumbers pliers (slip joint pliers) or a pair of Stilsons to hold the small cog still whilst you undo the nut.

Hope that's really where the issue is or you will be undoing more things to find it!

John
Last edited by Heinkeljb on Tue Jun 16, 2015 1:46 am, edited 1 time in total.

OhioPinz
Posts: 160
Joined: Fri May 13, 2005 9:41 am
Location: Middletown, Ohio

Re: Rear drive failure...?

Post by OhioPinz » Mon Jun 15, 2015 8:27 pm

Well, I pulled apart the portal axle housing today only to find everything in very nice shape. Axle spins very freely with no indication of breakage but pulling it is next.

User avatar
Jim LaGuardia
Posts: 1679
Joined: Wed Apr 14, 2004 3:42 pm
Location: San Bernardino Ca
Contact:

Re: Rear drive failure...?

Post by Jim LaGuardia » Tue Jun 16, 2015 12:50 pm

You will most likely find it sheared before the "paddle" on the inboard end.(most common axle failure point)
Cheers, Jim LaGuardia
http://smg.photobucket.com/albums/v510/Goatwerks/
"Arch Magus of Machines."

OhioPinz
Posts: 160
Joined: Fri May 13, 2005 9:41 am
Location: Middletown, Ohio

Re: Rear drive failure...?

Post by OhioPinz » Tue Jun 16, 2015 7:40 pm

It indeed feels like a sheared shaft. I have the axle tube and axle free on the outboard end. So how do I remove the axle from there? Does the entire axle tube need to be removed?

I have a parts book but no repair info. Is there an online source?

Lastly, assuming I need a left rear axle, 700.1.34.295.2, where is best source?

OhioPinz
Posts: 160
Joined: Fri May 13, 2005 9:41 am
Location: Middletown, Ohio

Re: Rear drive failure...?

Post by OhioPinz » Thu Jun 18, 2015 8:26 am

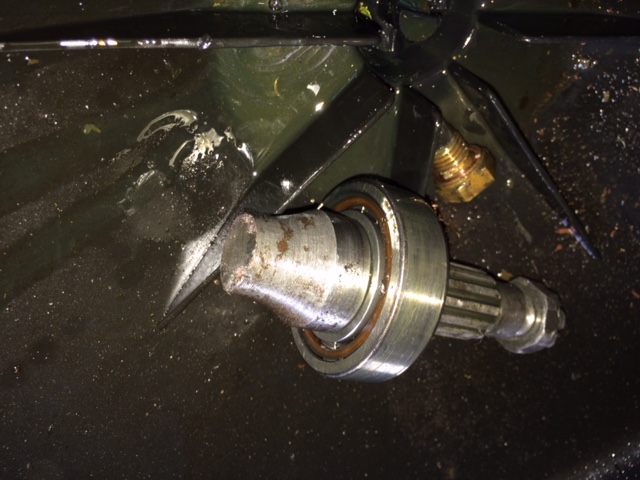

I have confirmed a broken axle.
Attachments

Heinkeljb
Great Britain
Posts: 354
Joined: Wed Feb 27, 2013 1:09 pm
Location: Lewes,Southern England

Re: Rear drive failure...?

Post by Heinkeljb » Thu Jun 18, 2015 1:34 pm

Are both rear axles the same? Or are they handed? Wouldn't have thought so, but with these beasts anything is possible!

Shame you have a couple of broken bits, but they don't look like it would really repair very well. So probably not worth even contemplating that - Replacement with preferably a new one, but if one can't be found then a good second hand one will have to do!

John

User avatar
Jim LaGuardia
Posts: 1679
Joined: Wed Apr 14, 2004 3:42 pm
Location: San Bernardino Ca
Contact:

Re: Rear drive failure...?

Post by Jim LaGuardia » Fri Jun 19, 2015 1:12 am

First one I've seen failed on that end :!: . I always find em on the inboard end.
Cheers, Jim LaGuardia
http://smg.photobucket.com/albums/v510/Goatwerks/
"Arch Magus of Machines."

OhioPinz
Posts: 160
Joined: Fri May 13, 2005 9:41 am
Location: Middletown, Ohio

Re: Rear drive failure...?

Post by OhioPinz » Fri Jun 26, 2015 4:06 pm

Jim, can I give you a call with a few questions?

Alan Wise

OhioPinz
Posts: 160
Joined: Fri May 13, 2005 9:41 am
Location: Middletown, Ohio

Re: Rear drive failure...?

Post by OhioPinz » Tue Jun 30, 2015 6:56 pm

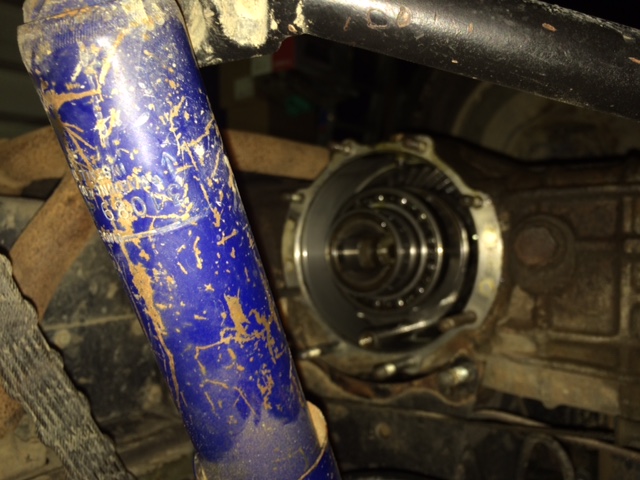

Thanks for everyone's help. Removed the axle arm today and ready to install the new axle.
Attachments

pinzinator
Posts: 789
Joined: Thu Jul 29, 2004 3:12 pm
Location: Indio, California

Re: Rear drive failure...?

Post by pinzinator » Tue Jun 30, 2015 9:12 pm

I have tried to install an axle like you are going to do. I got so frustrated that I had to get Jim LaGuardia to help me out. Not sure how it was done at the factory, but they had to have a special tool or technique. Let us know how you did it.
