Front Case Question

Post by TechMOGogy » Tue Sep 08, 2015 12:17 pm

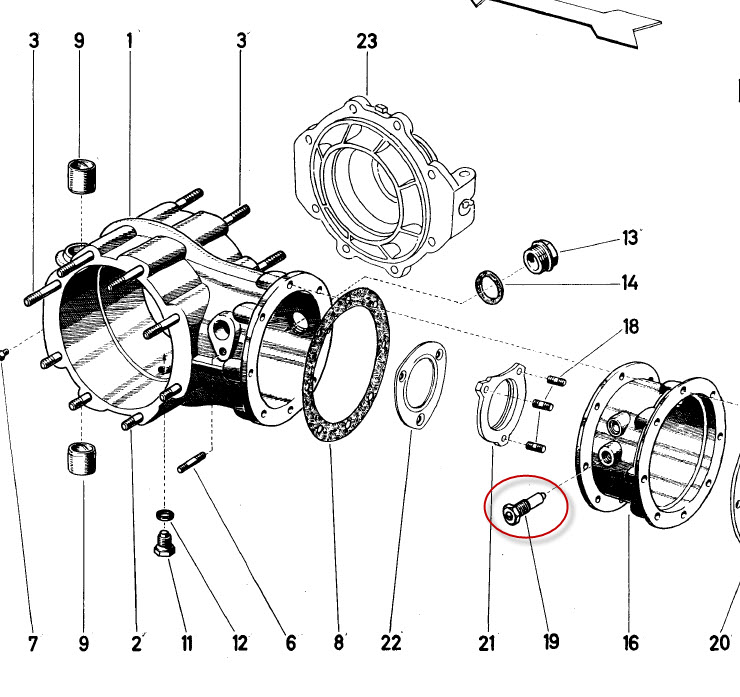

Well actually about the the intermediate case - what is #19 for?
9-8-2015 1-15-01 PM.jpg
9-8-2015 1-15-01 PM.jpg (102.63 KiB) Viewed 1116 times
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

User avatar
Jim LaGuardia
Posts: 1679
Joined: Wed Apr 14, 2004 3:42 pm
Location: San Bernardino Ca
Contact:

Re: Front Case Question

Post by Jim LaGuardia » Tue Sep 08, 2015 12:36 pm

Front drive engagement fork pivot.
Cheers, Jim LaGuardia
http://smg.photobucket.com/albums/v510/Goatwerks/
"Arch Magus of Machines."

User avatar
TechMOGogy
Canada
Posts: 2798
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: Front Case Question

Post by TechMOGogy » Tue Sep 08, 2015 12:46 pm

Is how to adjust it in the manual - didn't see it but may have missed it?
Thx
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

User avatar
Jim LaGuardia
Posts: 1679
Joined: Wed Apr 14, 2004 3:42 pm
Location: San Bernardino Ca
Contact:

Re: Front Case Question

Post by Jim LaGuardia » Tue Sep 08, 2015 2:11 pm

My advise is to count the turns out and use that as starting point to adjust fork/collar centering.(only final adjust after mated with central tube/drive line). The pin centers and limits side play of collar, 1-1/12 turns out from seated (while engaged)should work fine.
It will not engage if off center :wink:
Cheers, Jim LaGuardia
http://smg.photobucket.com/albums/v510/Goatwerks/
"Arch Magus of Machines."

User avatar
TechMOGogy
Canada
Posts: 2798
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: Front Case Question

Post by TechMOGogy » Tue Sep 08, 2015 2:21 pm

Thx Jim!
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker
