Tire chain install

Post by cowetadirtfarmer » Thu Feb 13, 2014 5:46 pm

Could anyone provide a quick tutorial on how to install the original tire chains. I wanted to put them on yesterday for our ice storm but I wasn't sure I had them on correctly.

Sent from my Nexus 5 using Tapatalk

User avatar
pcolette
United States of America
Posts: 1420
Joined: Sun Dec 10, 2006 7:38 pm
Location: Southwest Wisconsin

Re: Tire chain install

Post by pcolette » Thu Feb 13, 2014 5:51 pm

The official guide: http://web.archive.org/web/200708131405 ... tions.html

I've found that if you have a clean, dry surface (i.e.: garage floor) it's easier to just jack up one end of the Pinz and install the chains with the tires just an inch or so off the floor. Then switch to the other end. No need to start and drive the Pinz, just rotate the tire as you drape the chain on.
Last edited by pcolette on Thu Feb 13, 2014 5:56 pm, edited 1 time in total.
Paul C.
_________
'73 Swiss 710M
'89 Puch 230GE
2002 MB G500 (For Sale)

User avatar
cowetadirtfarmer
Hungary
Posts: 20
Joined: Mon Jul 11, 2011 7:51 pm
Location: Coweta County,Ga

Re: Tire chain install

Post by cowetadirtfarmer » Thu Feb 13, 2014 5:54 pm

Thanks! That's exactly what I was looking for..

Sent from my Nexus 5 using Tapatalk

User avatar
TechMOGogy
Canada
Posts: 2802
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: Tire chain install

Post by TechMOGogy » Thu Feb 13, 2014 6:54 pm

FYI - this kind fellow is now mirroring the old SDP site
http://madscientisthut.com/sdp-pin/html/site_map.html
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

User avatar
krick3tt
Posts: 2450
Joined: Thu Mar 16, 2006 6:48 pm
Location: Denver, CO USA

Re: Tire chain install

Post by krick3tt » Thu Feb 13, 2014 10:30 pm

I have only put the chains on once to see if they fit my tires. I used a small (4 inch) piece of 2x4, placed the chains out flat and put the wood in the center and drove
up on it. Gives the right amount of space to maneuver the chains around to fit. I keep the two pieces of wood in the tool compartment.
Any man who thinks he can be happy and prosperous by letting the government take care of him:
better take a closer look at the American Indian.---Henry Ford

Dreadnought
Posts: 317
Joined: Thu Apr 16, 2009 2:30 pm
Location: Pstragowa (pronounced STRONGOVA) Eastern Poland

Re: Tire chain install

Post by Dreadnought » Sun Feb 16, 2014 1:46 am

Living on a very steep hill here in Poland I used the chains 2 years ago when we had very bad snow.......but these chains are not really designed for roads, they are off road chains and if you hit stretches of tarmacadam, even if negotiated very slowly they will wear very quickly. Poland is something of an enigma to me, 4x4s in this hilly region are comparatively rare, so the snowploughs (on big 4x4 tractors) skim the roads regularly so that cars have no problems. Ergo I need to use chains to get off my hill so that the Pinz doesn't become and uncontrollable toboggan going down. If they left me a foot or even a few inches of snow to grip on I would have no problems either going down or coming up, instead they skim the snow of and very quickly it becomes a half inch of compacted snow that might as well be ice. They do not grit or salt the roads here in the countryside (only the main roads get that treatment), they use ash from furnaces?? smelters etc and then they use it very sparingly. My Pinz chains also fit my UAZ...15 inch wheels with tall tyres.........I intend to get a good set of 'net' type chains for next year that won't wear so bad on the clear patches, my thinking is the strain will be spread over more chain area.
Aiming to introduce UK Politicians to Piano wire and Lamposts!

User avatar
TechMOGogy
Canada
Posts: 2802
Joined: Wed Feb 01, 2012 11:39 am
Location: Ontario, Canada

Re: Tire chain install

Post by TechMOGogy » Wed Mar 05, 2014 11:25 am

images for archive

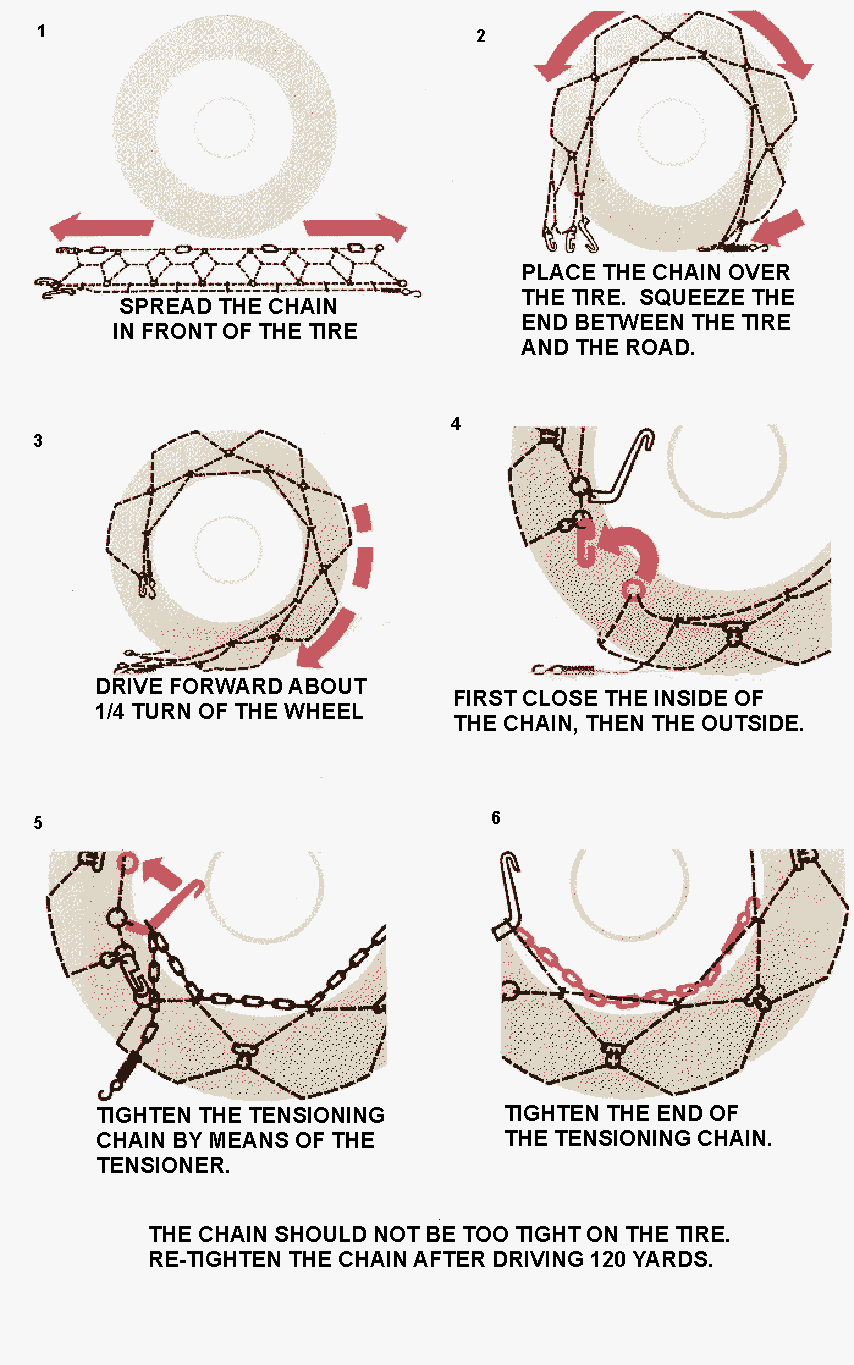

Chain Install-L.gif
Chain Install-L.gif (52 KiB) Viewed 1594 times

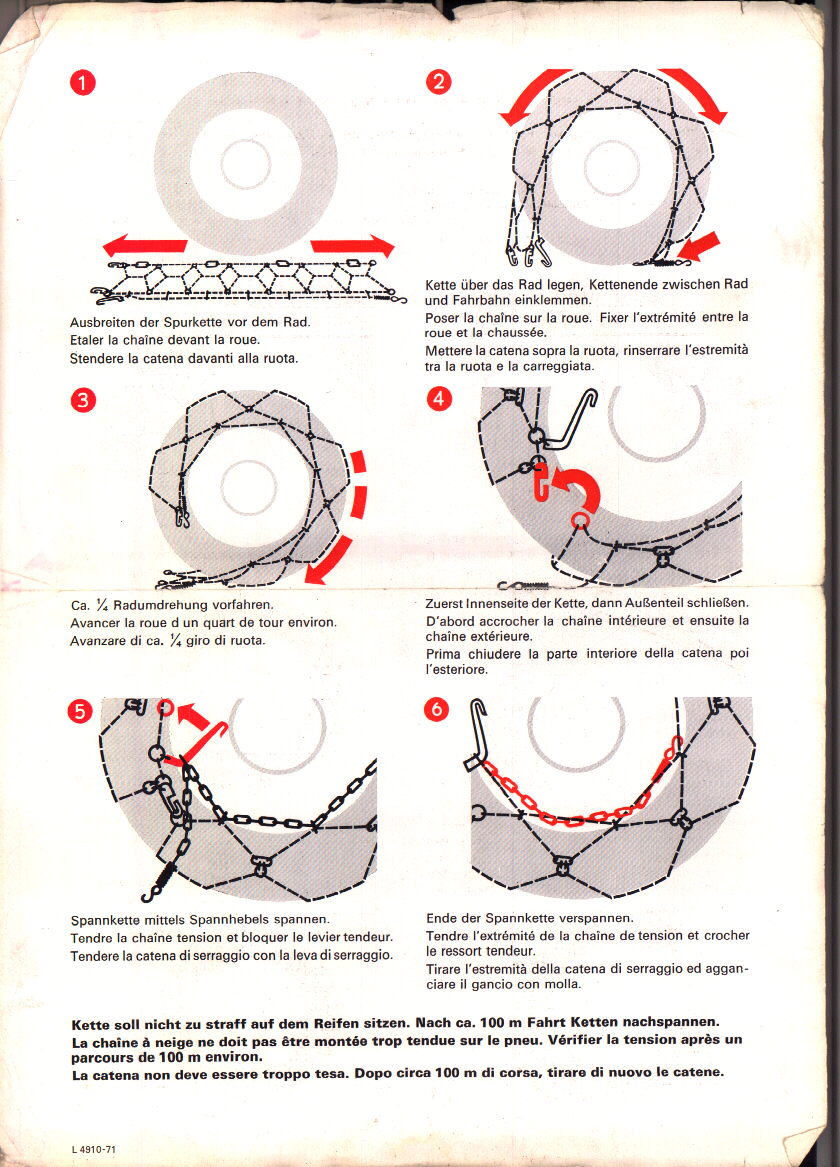

Chains, snow.jpg
Chains, snow.jpg (205.03 KiB) Viewed 1594 times
72 Pathfinder | 75 710M 2.7i | 96 350GDT Worker

User avatar
westernair
Posts: 747
Joined: Sat Jan 01, 2011 11:14 pm
Location: Tacoma, WA

Re: Tire chain install

Post by westernair » Wed Mar 05, 2014 12:58 pm

Make sure you test fit your original chains before you actually need them. Most of us are not running the same tire size as the original maloyas and will need extra links added to them.
Shawn

62 haffy Bantam
61 haffy 4 door

72 710K - Sold
73 712M - Sold

Vladimir
France
Posts: 16
Joined: Sat Jul 07, 2018 9:57 am
Location: Alburquerque

Re: Tire chain install

Post by Vladimir » Thu Feb 28, 2019 8:47 pm

Thank you for this! Almost got trapped south Colorado last weekend
