Rear diff leaking into parking brake assembly
Posted: Thu Oct 02, 2014 11:17 am
by ziegler
Talked to willy at SAV and ordered the seals to do the job but can't find a detailed schematic of rear diff. The only one I can find is on the SAV website, group 03-01, but it's not really detailed...four O rings?seals need to be replaced. Does anyone know of another detailed picture of the rear diff/locker box area. Thanks again Zig
Re: Rear diff leaking into parking brake assembly
Posted: Thu Oct 02, 2014 11:33 am
by undysworld
Repair Manual?
See Sec. G Pg. 2 Fig.1 Axle Drive Cross-Section View
Re: Rear diff leaking into parking brake assembly
Posted: Thu Oct 02, 2014 11:37 am
by ziegler
The repair manual has the same schematic as SAV website.
Re: Rear diff leaking into parking brake assembly
Posted: Thu Oct 02, 2014 11:40 am
by undysworld
Not.
SAV only shows gears on one page and case, etc. on another. The Repair Manual page I referred to shows the whole caboodle in place, as a cutaway.
Check Sec.K Pg.22 for a pic of the e-brake assy. There's nothing that shows those two areas together, to my knowledge.
Re: Rear diff leaking into parking brake assembly
Posted: Thu Oct 02, 2014 11:50 am
by TechMOGogy

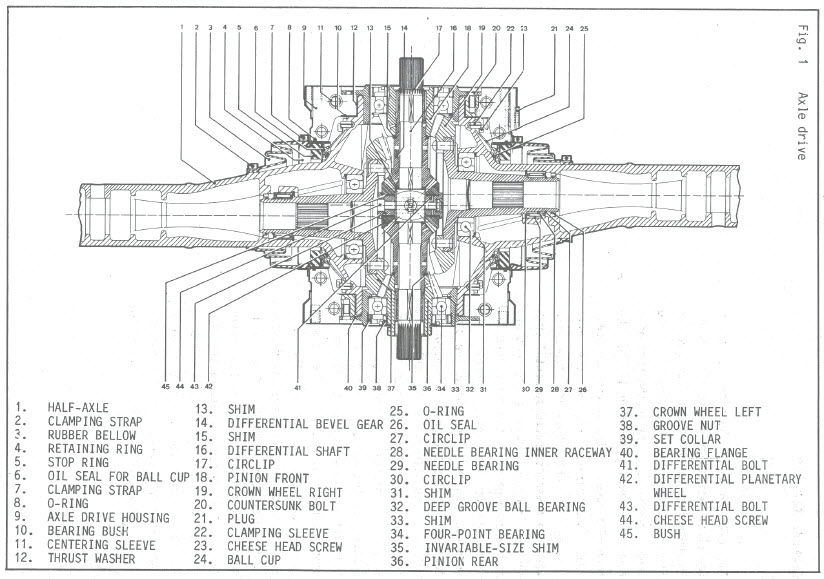

Gpg2fig1
- GPg2Fig1.jpg (112.55 KiB) Viewed 4765 times

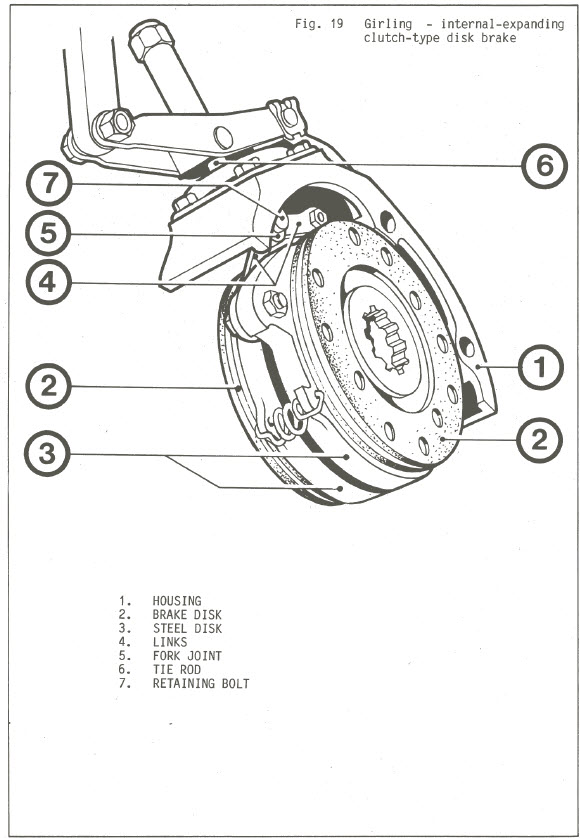

Kpg22fig19
- Kpg22fig19.jpg (81.11 KiB) Viewed 4764 times
Re: Rear diff leaking into parking brake assembly
Posted: Thu Oct 02, 2014 11:53 am
by undysworld
That's the one! Thanks.
Re: Rear diff leaking into parking brake assembly
Posted: Thu Oct 02, 2014 1:11 pm
by TechMOGogy
This may help you out (not mine but in my collection of web searched items)
https://app.box.com/s/shf5gohckchubsolgvbg
Re: Rear diff leaking into parking brake assembly
Posted: Thu Oct 02, 2014 4:07 pm
by ziegler
You guys are beautiful...thank you very much. Zig
Re: Rear diff leaking into parking brake assembly
Posted: Thu Oct 02, 2014 5:51 pm
by undysworld
Zig,
Beautiful?!?! Not personally, but I've been called worse here.
