Search found 697 matches

by Haf-e
Wed Jun 13, 2018 2:34 pm
Forum: Owner builds, customizations & accessories
Topic: Disc brake conversion
Replies: 8
Views: 1084
United States of America

Re: Disc brake conversion

So - Did you trailer the Pinz down to Moab? How do you like those new Interco SX2-50 tires? Seems like they might be a great tire for the Pinz with either the transit wheels or the new 8 inch wheel options becoming available. Did you have the wheel balanced or are you using beads on them? How did th...
by Haf-e
Tue May 22, 2018 8:32 pm
Forum: Engine
Topic: Ignition Issue
Replies: 14
Views: 624
United States of America

Re: Ignition Issue

There is something wrong - the ignition switch kills power to the ingition system to shut off the engine - the fuel cutoffs are just there to help reduce the chance that it would diesel (run on) if hot.

Use a meter to see what's going on...
by Haf-e
Sun May 20, 2018 5:33 pm
Forum: Brakes, Suspension & Tires
Topic: Tie Rod End thread pitch?
Replies: 1
Views: 207
United States of America

Re: Tie Rod End thread pitch?

For the drag link - the parts manual say that the thread is M22x1.5 as the parts catalog lists the specs for the "jam nuts" used on that assembly. Was hoping they would be m23x1.5 as that is the size used on Toyota 80 series and there are some nice machined ends for DOM tubing which can be welded in...
by Haf-e
Sun May 20, 2018 5:24 pm
Forum: Brakes, Suspension & Tires
Topic: Tie Rod End thread pitch?
Replies: 1
Views: 207
United States of America

Tie Rod End thread pitch?

I am going to be making up a set of heavy duty tie rods for the steering and need to know what the thread size and pitch is for the tie-rod ends to allow me to order up the required taps - anyone know the size of the threads? I would pull mine off to measure but I loaned out my tie rod puller tool t...
by Haf-e
Thu Apr 19, 2018 2:11 pm
Forum: Drivetrain
Topic: Torque Tube removal...inspection
Replies: 11
Views: 671
United States of America

Re: Torque Tube removal...inspection

Sorry to hear about your situation. From my experience - the noise if most likely from the rear bearing in the witches hat attached to the transfer case - it gets beat up by the heavy driveshaft spinning at high speeds. # 34 in the drawing group 03-20 http://www.pinzgauer.com/img/assemblies/03-20.pn...
by Haf-e
Thu Apr 19, 2018 1:07 pm
Forum: Haflinger engine and driveline
Topic: 4x100 and wobble nuts?
Replies: 4
Views: 322
United States of America

Re: 4x100 and wobble nuts?

Lots of people use them - but I don't know... I actually have a set of set of steel wheels from a TR7 - which are 4x96 and use larger studs - they fit on the Haflinger wheel hubs nicely with the smaller m10 studs right against the outside edge of the hole. I did some very minor clearancing of the ce...
by Haf-e
Wed Apr 18, 2018 4:10 pm
Forum: Drivetrain
Topic: Torque Tube removal...inspection
Replies: 11
Views: 671
United States of America

Re: Torque Tube removal...inspection

There really isn't anything inside of the main tube - just a driveshaft. The support bearings are at the ends and are attached to the differentials in what is referred to as the "witch's hat" as it is cone shaped. Typically the main tube is left attached to the body when the front or rear diffs are ...
by Haf-e
Wed Apr 11, 2018 1:57 pm
Forum: Drivetrain
Topic: Overdrive parts available soon
Replies: 32
Views: 2772
United States of America

Re: Overdrive parts available soon

Yes - had a crazy computer control to maximize fuel economy I heard that watched the coolant temp etc. People figured out how to bypass it for full manual control. Can't be used in first gear as it uses an internal hydraulic pump off the output for control. Just another possible somewhat compact opt...
by Haf-e
Wed Apr 11, 2018 9:57 am
Forum: Drivetrain
Topic: Overdrive parts available soon
Replies: 32
Views: 2772
United States of America

Re: Overdrive parts available soon

Was talking with a friend about overdrives and remembered that the late 80s corvettes had an interesting overdrive box added to the manual transmission - it was built by Doug Nash and is called a Nash 4+3. Turns out two ratios were available - 0.68 and 0.60 and is basically a small 2 speed auto tran...
by Haf-e
Wed Apr 11, 2018 12:55 am
Forum: CLASSIFIEDS: Pinzgauers, Haflingers and Volvos For Sale. Parts and Goods too!
Topic: 712K Camper for sale - BO over $18,000 - Florida
Replies: 2
Views: 855
United States of America

712K Camper for sale - BO over $18,000 - Florida

Saw this on the expedition portal site - don't know anything else about it. The interesting part is that it has TD wheels and what appears to be the TD axles - which means TD disc brakes and the revised axle gear ratios... "Hello all, I have come across a fantastic Pinzgauer 6x6 originally a radio t...
by Haf-e
Wed Apr 11, 2018 12:21 am
Forum: Body & Interior
Topic: Engine cover repair / restoration
Replies: 1
Views: 299
United States of America

Engine cover repair / restoration

So my engine cover has seen better days - Always figured I would buy a replacement for it as it had about 10 cracks of varying size and severity. There was even a piece about 2" x 1" missing on one of the edges. There were several repairs already done on it when I got the truck nearly 18 years ago -...
by Haf-e
Sat Apr 07, 2018 10:03 pm
Forum: CLASSIFIEDS: Pinzgauers, Haflingers and Volvos For Sale. Parts and Goods too!
Topic: Looking for a Pertronix
Replies: 3
Views: 450
United States of America

Re: Looking for a Pertronix

I have a complete distributor with a pertronix available if you are interested... including the civilian adapter, cap, rotor and plug leads.

PM me with an offer...
by Haf-e
Sat Apr 07, 2018 9:39 pm
Forum: Brakes, Suspension & Tires
Topic: Installing new Master Brake Cylinder
Replies: 2
Views: 326
United States of America

Re: Installing new Master Brake Cylinder

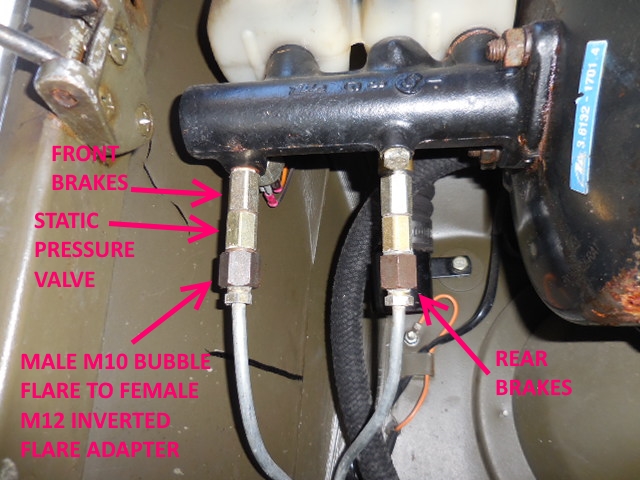

Here is a good image - from Expedition-Imports parts website:
7103366220 Expedition Imports.JPG
7103366220 Expedition Imports.JPG (249.26 KiB) Viewed 281 times
I added the text to the image.

https://expedition-imports.com/7103366220
by Haf-e
Sat Apr 07, 2018 9:23 pm
Forum: Brakes, Suspension & Tires
Topic: Installing new Master Brake Cylinder
Replies: 2
Views: 326
United States of America

Re: Installing new Master Brake Cylinder

Do you mean the adapter fitting under the residual pressure valve #33.2? https://www.pinzgauer.com/img/assemblies/07-05.png I think I've always done it after the master was fully installed and connected to the booster. Which side stripped? Not sure how you would attach the lines to the cylinder befo...
